50-300w Double Shaft AC Blower Motor 60hz Single Or Three Phase Steel Cover

Single Or Three Phase 50W-300W Steel Cover Double Shaft Air Curtain AC Fan Motor

Introduction

Till now, Changzhou Hengsheng Electric has a various of specifications of AC fan motors, and different BLDC motors, geared motor, inudction pump motor . Because of its long working life, stable performance and low failure rate, our products are well received by customers. We have got the certification of CE, RoHS and ISO9001:2008 for AC fan motor.

Quick Details

Output Power:50-300W

Type:Asynchronous Motor, fan Motor

Frequency:50/60hz

Phase:Single-phase

Certification:CCC, CE, ROHS, UL

Protect Feature:Totally Enclosed

Rated Voltage:115/120 V/208-230V

Insulation:Class B/H

Speed: 1350/1210/1100/1280/1000/800 ect

Features:

Reversible plug for easy rotation; Quick installation; Quiet operation;

Ball bearing; Dual voltage 115/208-230 v

Run capacitor pre-mounted on motor; Automatic overload; Operating temp -10-43 degree

High efficiency,High reliability,Little vibration,Low noise Thermal protection

Shaft size:8/14mm

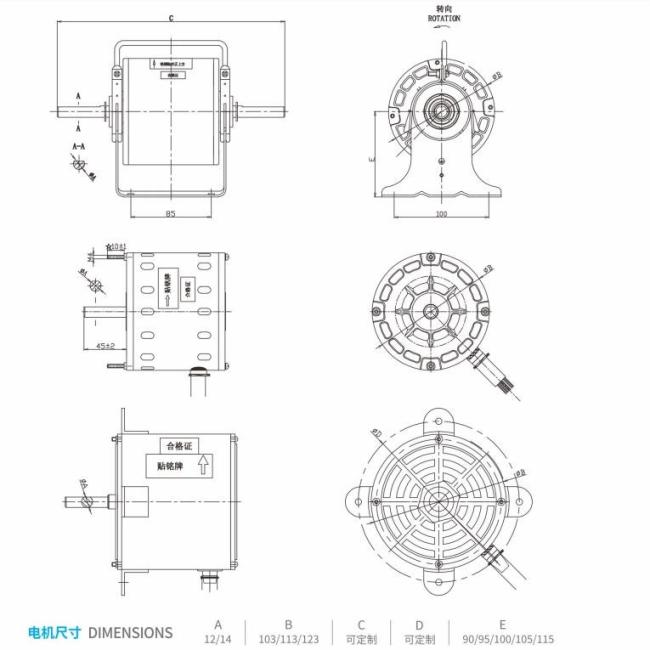

Specification

Packaging & Shipping

Packaging Details:1PCS/CTN
Delivery Details: Air Curtain Motor Shipped 30 days after payment.

FAQ

What is the problem with the heating of the air curtain ac fan motor?
There is a thermal protector in the AC fan motor of the air curtain machine, which is generally used for overheating protection. When the temperature is too high during rotation, it will open circuit for protection; The fan motor recovers when the temperature is lower than the protection temperature. After eliminating the unreasonable matching between the fan curtain impeller and the fan motor, it is recommended that you also check whether the working voltage is stable. If the voltage is too low or too high, the temperature of the motor will rise, resulting in ordinary circuit break of the thermal protector.
