50hz AC EC 30-80W BLDC Induction Motor Plastic Packaging For Fan Coil Air Conditioner

 EC 30-80W Plastic Packaging BLDC Motor For Fan Coil Air Conditioner

Introduction

This page shows a BLDC fan motor used in fan coil air conditioner units.

Till now, Hengsheng has a variouty of specifications of AC BLDC motors, and different induction motor, geared motor, PM motor with gearbox. Because of its long working life, stable performance and low failure rate, our products are well received by customers. We have got the certification of CCC, RoHS and ISO9001:2008.

Features of BLDC motor

1. Rated Voltage:208-240V 50Hz/60Hz

2. Output power range: 50W,80W

3. Speed 300-1500 adjustable

4. Fully enclosed structure, high protection level, safe and reliable

5. The driver adopts the installation structure of knapsack type, which is convenient for disassembly and maintenance after sale

• The driver integrates the control mode of ordinary three-speed and stepless speed regulation, at the same time, the function of speed feedback is optional in stepless speed regulation

7. Using infrared remote control, adjustable constant speed, constant Torque, fan coil unit load, cassette fan coil unit load, clockwise or counterclockwise rotation

• Using the same structure and installation method as the single phase electric power, it is more convenient to replace and popularize
• Only 50W,80W two motors can be fully covered FP34-FP238 whole series fan coil units, the inventory has been effectively reduced.

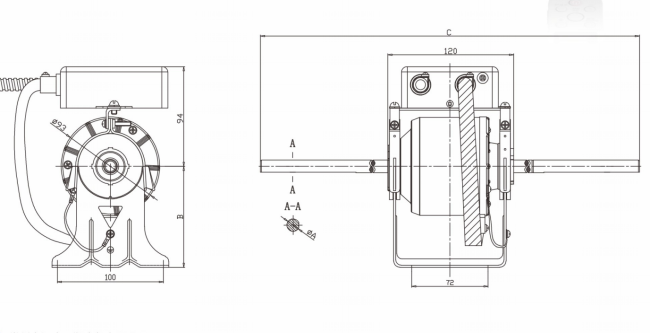

Specification

More information

BLDC (Brushless Direct Current Motor), also known as electronic commutation motor (ECM or EC motor) or synchronous DC motor, is a synchronous Motor using DC power supply. Brushless DC motor is essentially a permanent magnet synchronous motor with position feedback, which uses DC power input and inverter to change into three-phase AC power supply.

There are various kinds of motors, and brushless DC motor is the most ideal speed regulating motor. It combines the advantages of DC motor and AC motor. It not only has good adjustment performance of DC motor, but also has the advantages of simple structure, no commutation spark, reliable operation and easy maintenance of AC motor. Therefore, it is popular in the market and widely used in automobile, household appliances, industrial equipment and other fields.
