1000rpm Permanent Magnet Brushed DC Motor 220v 600w 106ZYT For Vibration Device

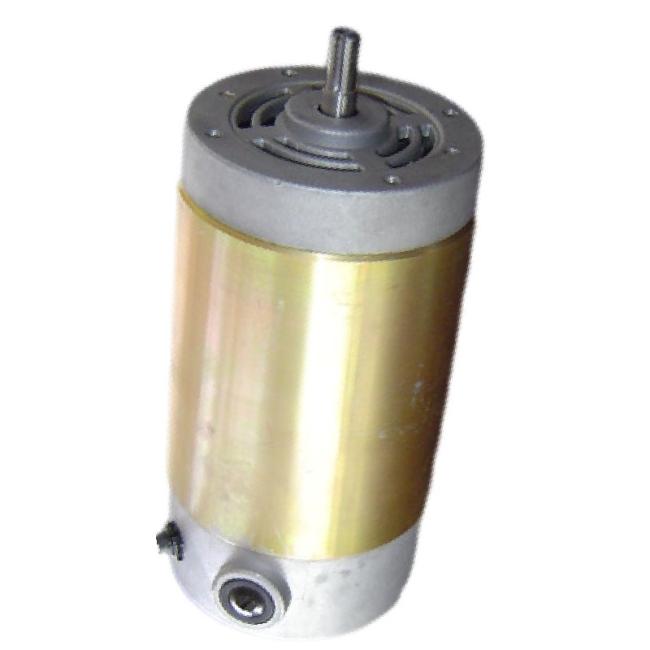

106ZYT 220V High Speed 600W Permanent Magnet Brushed DC Motor for Vibration Device
Introduction
This is a permanent magnet brushed DC motor 300-800W use in vibration machine, barrier system, intelligent turnstile and similar application. The motor shaft power and speed can be designed base on customer demand. We have almost all type of motors which used in outdoor advertising, medical equipment and mechanical equipment, feel free to send us a inquiry.
Quick Details
Type: Permanent Magnet Brushed DC Motor
Output Power:300-800W
Certification:CCC, CE, ROHS
Protect Feature:Totally Enclosed
Voltage:24/36 V/220V
Insulation:Class B
Warranty:3months-1year
Place of Origin: China
Specification
| MODEL | VOLTAGE | No load | Rated load | N. m | W | mm | ||
| Current | Speed | Current | Speed | Torque | Power | Length | ||
| 106ZYT001 (095) | 220 | ≤0.5 | 5500 ±8% | ≤5 | 5500 ±8% | 1.5 | 785 | 200 |
| 106ZYT001A | 220 | ≤0.4 | 4500 ±8% | ≤4.1 | 4500 ±8% | 1.5 | 628 | 200 |
Application
Outdoor advertising
Medical equipment
Mechanical equipment
BOAT
Electric Bicycle
FAN
Home Appliance
Channel gate
Permanent Magnet Brushed DC Motor Applications
A permanent magnet brushed DC motor is a rotating motor that converts DC electrical energy into mechanical energy (DC motor) or converts mechanical energy into DC electrical energy (DC generator) with a brush device.In medical care equipment,permanent magnet brushed DC motor
is applied to dental comprehensive therapeutic apparatus, insulin injection pump, medical injection pump, artificial limb, tissue grinder, wheelchair, and bone grinding. In automobile industry, permanent magnet brushed DC motor is applied to automatic window system, air conditioning system, driving assistant system and seat adjustment. If you need any type of permanent magnet brushed DC motor, please contact us, thanks.
