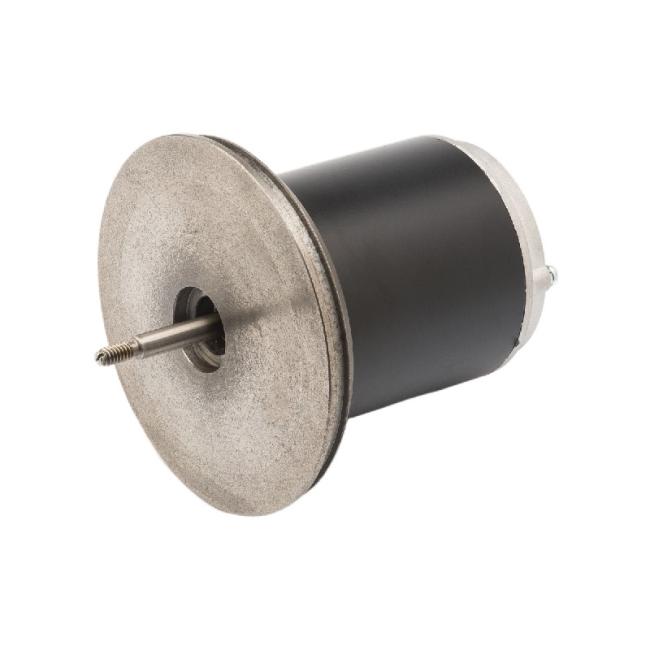

83ZYT 110-220V 300w Permanent Magnet Micro DC Motor For Tennis Ball Machine
83ZYT 110-220V Micro Permanent Magnet Brushed DC Motor for Tennis ball machine
Introduction
This is a permanent magnet brushed DC motor 200-500W use for mechanical equipment or agriculture auto machine and similar application. The motor shaft power and speed can be designed base on customer demand. We have almost all type of motors which used in outdoor advertising, medical equipment and mechanical equipment, feel free to send us a inquiry.
Quick Details
Type: Permanent Magnet Brushed DC Motor
Output Power:100-300W
Certification:CCC, CE, ROHS
Protect Feature:Totally Enclosed
Voltage:24/36 V/48V
Insulation:Class B
Warranty:3months-1year
Place of Origin: China
Specification
| MODEL | VOLTAGE | No Load | Rated load | N.m TORQUE | W Power |
mm Length | ||
| CURRENT | SPEED | CURRENT | SPEED | |||||
| A83ZYT001 | 220 | 0.16 | 5600 ±8% | 1.60 | 5000 ±8% | 0.5 | 262 | 135 |
| A83ZYT002 | 110 | 0.32 | 5600 ±8% | 3.00 | 5000 ±8% | 0.5 | 262 | 135 |
| A83ZYT004 | 220 | 0.18 | 6000 ±8% | 2.00 | 5500 + 8% | 0.5 | 288 | 135 |
| A83ZYT005 | 220 | 0.18 | 5100 ±8% | 2.50 | 4500 + 8% | 0.8 | 377 | 166 |
| A83ZYT006 | 220 | 0.18 | 7000 ±8% | 3.50 | 6300 ±8% | 0.8 | 528 | 166 |
| B83ZYT001 | 220 | 0.16 | 5600 ±8% | 1.60 | 5000 ±8% | 0.5 | 262 | 145 |
| B83ZYT002 | 110 | 0.32 | 5600 ±8% | 3.00 | 5000 ±8% | 0.5 | 262 | 145 |
| B83ZYT005 | 220 | 0.18 | 5100 + 8% | 2.50 | 4500 ±8% | 0.8 | 377 | 176 |
Application
Outdoor advertising
Medical equipment
Mechanical equipment
BOAT
Electric Bicycle
Auto robot machine
Solar tracker
Channel gate
Permanent Magnet Brushed DC Motor Information
Advantages of PMDC motors
1. Smaller size – As mentioned above, permanent magnet brushed DC motors are usually smaller than other motors, but this does not mean that they are less useful. In fact, they are ideal for small applications such as windshield wipers, air conditioning units and even electric toothbrushes. This also contributes to portability, making them easy to transport around the world.
2. Used in a variety of applications – Permanent magnet brushed motors can be used in a variety of industries as they are designed to meet various needs, such as size and power. You are likely to find PMDC motors in computer drives, just like in children's toys.
