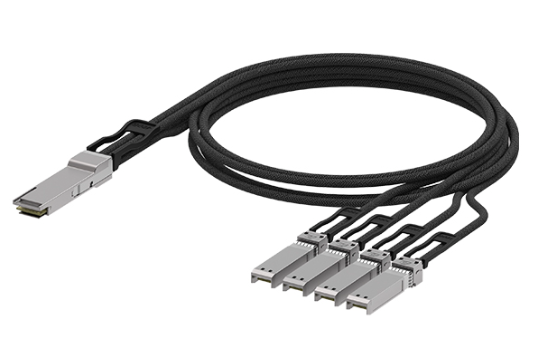

200G QSFPDD to 4x50G QSFP28 Breakout DAC(Direct Attach Cable) Cables (Passive) 1M 200G QSFPDD DAC
IOS-D#80111-1, iQSFPDD-200G-DAC1M-B4, 200G QSFPDD to 4x50G QSFP28 Breakout DAC(Direct Attach Cable) Cables (Passive) 1M
IOS-D#80111-1
200GBase QSFP-DD to 4x50G QSFP28 DAC (Direct Attach Cable) Cables (Passive) 1M
This 200G breakout Passive DAC cable is equiped with QSFP-DD package at one side, and 4 of 50G QSFP28 package at the other side. The max length for 200Gbase QSFP-DD to 4x50G QSFP28 DAC is 3-meter. For standard lengths we have 0.5m, 1m, 2m, and 3m, if you need different lengths than our standard lengths welcome to contact us for customed. x in Part Number stands for any data from 0.3m to 3m.
200G QSFP-DD to 4x 50G QSFP28 DAC Breakout Cable (1-meter, Passive, QSFP-DD to 4 QSFP28 30AWG)
The 200G QSFP-DD to 4x 50G QSFP28 Breakout Active Optical Cable operates over passive copper, which requires no additional power to ensure quality connectivity. This breakout cable is compliant with QSFP-DD MSA Rev. 5.0, CMIS Rev 4.0 and IEEE 802.3cd standards.
It provides a connection of a 200G QSFP-DD port on one end and 4 QSFP28 DAC ports on the other end and is suitable for cost-effective close-range interconnections within the equipment room of telecom operators or data centers, etc.
Product Features:
- Compliant with SFF-8636
- Compliant with IEEE802.3bj& IEEE802.3cd
- Support I2C two - line string interface, easy to control
- Support for hot plugging
- Low crosstalk
- Low power comsumption
- Max. Power Consumption 0.5W
- Tested in Targeted Switches for Superior Performance, Quality, and Reliability
- Minimum Bend Radius 10mm for Flexible Routing
- Simplifies the Patching and Offers a Cost-effective Way for Short Links
- Hot Pluggable QSFP28 MSA Compliant
- Low Insertion Loss and Ultra-low Crosstalk for Improved Performance
Applications:
- 10G/40G /100G/200G Ethernet
- Infiniband SDR, DDR, QDR,FDR,EDR,HDR
- SWITCH
- Router
- Concentrator
- Data center, cloud server
Ordering Information:
- iQSFPDD-200G-DAC0.5M-B4, 200G QSFPDD to 4x50G QSFP28 Breakout DAC(Direct Attach Cable) Cables (Passive) 0.5M
- iQSFPDD-200G-DAC1M-B4, 200G QSFPDD to 4x50G QSFP28 Breakout DAC(Direct Attach Cable) Cables (Passive) 1M
- iQSFPDD-200G-DAC1.5M-B4, 200G QSFPDD to 4x50G QSFP28 Breakout DAC(Direct Attach Cable) Cables (Passive) 1.5M
- iQSFPDD-200G-DAC2M-B4, 200G QSFPDD to 4x50G QSFP28 Breakout DAC(Direct Attach Cable) Cables (Passive) 2M
- iQSFPDD-200G-DAC2.5M-B4, 200G QSFPDD to 4x50G QSFP28 Breakout DAC(Direct Attach Cable) Cables (Passive) 2.5M
- iQSFPDD-200G-DAC3M-B4, 200G QSFPDD to 4x50G QSFP28 Breakout DAC(Direct Attach Cable) Cables (Passive) 3M
