Energy Storage Lithium Battery 51.2V 200ah 10kw Lithium Ion LiFePO4 Li Battery 51.2 Volt Rechargeable Lithium Battery

Price Negotiable
Price: negotiated
MOQ: negotiated
Delivery Time: negotiated
Product Description

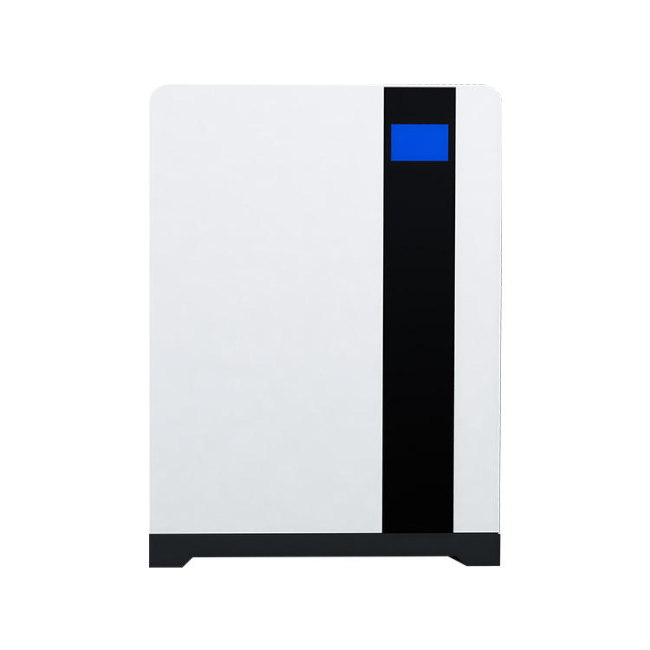

Energy Storage Lithium Battery 51.2V 200ah 10kw Lithium Ion LiFePO4 Li Battery 51.2 Volt Rechargeable Lithium Battery​



Model No 48100 48150 48200
Nominal Parameters
Voltage 51.2V 51.2V 51.2V
Capacity 100Ah 150Ah 200Ah
Energy 5.12Kwh 7.68Kwh 10.24Kwh
Dimensions (L*W*H) 600*400*150mm 790*496.3*201.2mm 790*496.3*201.2mm
Weight 58Kg 92Kg 108Kg
Basic Parameters
Lifetime(25℃) 20 Years
Life cycles(80% DOD,25℃) >6000 Cycles
Storage time temperature 5 months @ 25℃; 3 months @ 35℃; 1 month @ 45℃
Operation temperature -20℃ to 60℃@60+/-25% Relative Humidity
Storage temperature 0℃ to 45℃@60+/-25% Relative Humidity
Lithium Battery Standard UL1642,IEC62619,UN38.3,ROHS,CE-EMC
Enclosure protection rating IP21
Electrical Parameters
Operation Voltage 44V-58.4V 44V-58.4V 44V-58.4V
Max charging voltage 58.4V 58.4V 58.4V
Max charging and discharging current 100A 100A 100A
Max Power 5120W 5120W 5120W



Application:

1. Peak shaving and valley filling

Discharge during peak electricity demand to reduce expensive electricity bills.

2. Improve the stability of the power system

Smooth out the intermittent output of renewable energy by storing electricity and dispatching it when needed.

3. Backup power

Provide power to the load when the power grid is out of power, or use as backup power in areas without power.



Features:

1,Fast power response, supporting virtual power plant, grid-connected, off-grid and other modes

2,All-in-one design greatly reduces transportation, on-site installation time and cost

3,Local collection, intelligent monitoring, remote operation and maintenance

4,Standardized interfaces allow multiple machines to be connected in parallel, making it easy to expand and ensure batch manufacturing processes.

5,Intelligent installation and operation, supporting node adaptation, fault indication, etc., reducing on-site and operation and maintenance workload by 70%

6,No isolation design, improve system efficiency, independent single cluster battery, no circulation, reduce power loss



FAQ

Q1: What is the Moa for the products?

Depending on the order details.Large quantity can get the discount.

Q2: Can samples be sent to customers?

Yes, samples are supported (some items for free sample)

Q3: Do you take orders for private labels?

Yes, we do. We can make your own private paper card/logo as your requirement.

Q4: Do you supply custom packaging and accept OEM?

Yes, we can make custom packaging for you. You just need to send the logo and your request, we will make the design.

Q5: How long does the producing and delivery time?

Around time depends on the amount of your order, info our service team to get more details please.

Q6: What are the shipping ways you can offer?

By air/sea according to customers'requirements.

Q7: Do your products come with warranty?

Yes, we promise 5-10 years warranty according different model.

Q8: Are you a factory? Shall we have a tour of your factory before we cooperate?

Yes, we are a leading supplier and manufacturer in Shanghai China,we have 20+ years industrial experience in telecommunications & energy products.
