Wall Mounted Powerwall Solar Battery 10Kwh 20Kwh 48V 51.2V 100Ah 200Ah With BMS

Price Negotiable
Price: negotiated
MOQ: negotiated
Delivery Time: negotiated
Product Description

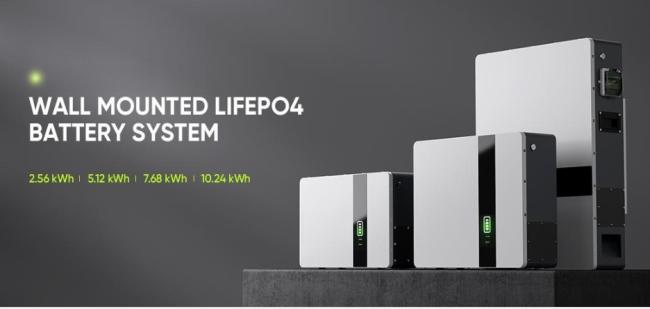

Wall Mounted Solar Battery 10Kwh 20Kwh Powerwall Batteries 48V 51.2V 100Ah 200Ah With BMS

Product details

Model
2500
5000
7500
10K
Capacity Energy
2.56kWh
5.12kWh
7.68kWh
10.24kWh
Capacity Ah
50Ah
100Ah
150Ah
200Ah
Suggested SOC
10-100%
Usable Capacity
2.3kWh
4.6kWh
6.9kWh
9.2kWh
Nominal Voltage
48/51.2V
Operation Voltage
42V - 54V (48V) or 44.8V – 57.6V (51.2V)
Maximum Charging Current
35A
70A
70A
150A
Maximum Discharging Current
50A
100A
100A
200A
BMS
Robust Multi Point Monitoring BMS
Scalable(Parallel Function)
Yes, Maximum 15 Packs
Life Cycling (0.5C 25℃)
6000 Cycles @ 0.5C
Warranty
10 Years
Operation Temperature
Chrage : 0 ~ 45℃, Dischrage : -20 ~ 45℃
Storage Temperature
-20 ~ 45℃
Net Weight
29kG
52kG
66kG
92kG
Dimensions (H x W x D)
350x520x165 mm
480x520x165mm
560x537x174mm
866x537x174mm
Certifications
MSDS, UN38.3, RoHS, IEC62619, UL, CE
IP Grade
IP54
Communication
RS232, RS485, CAN (Compitable with most brand inverters in market)

Product Description

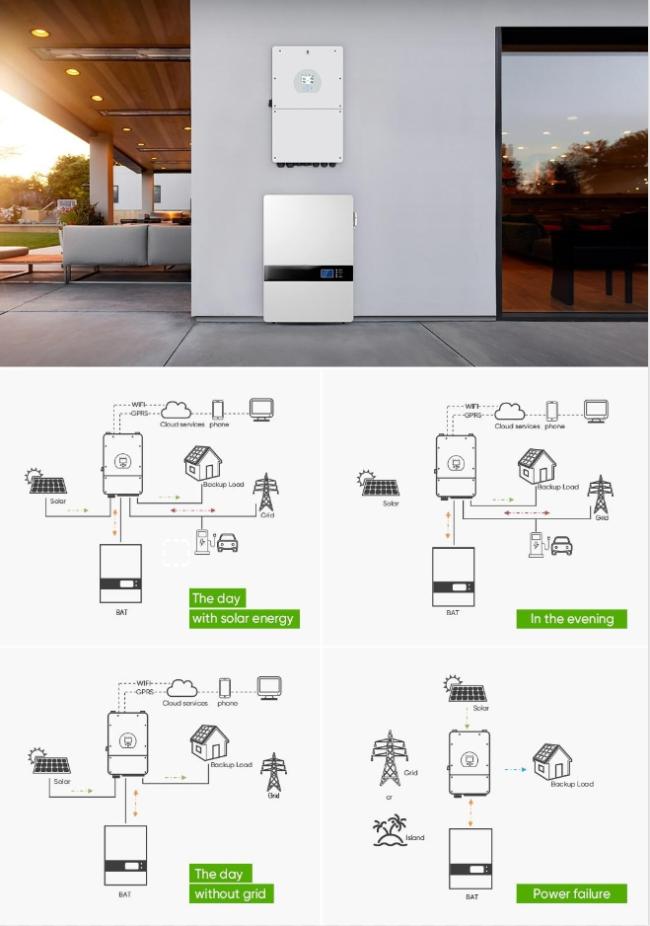

Applications
