Solar Powerwall Lifepo4 Battery Smart Wall Mounted Lithium Battery 24V 100ah 3kwh

Price Negotiable
Price: negotiated
MOQ: negotiated
Delivery Time: negotiated
Product Description

Lifepo4 Lithium Battery Wall Mounted 24v 100ah 3kwh Storage Solar Energy System Smart BMS 24v Lifepo4 Powerwall Battery

Product details


Model No
24100
4850
48100
48120
48200
Batteries materials
Lithium iron phosphate
Nominal voltage
25.6V
48V
48V
48V
48V
Nominal capacity
100Ah
50Ah
100Ah
120Ah
200Ah
Size(mm)
410*370*160
375*340*147
471*375*147
471*375*147
590*375*245
Weight
26kg
26kg
42kg
45kg
82kg
Color
Optional
Parallel support
Parallel terminals are supported
Output port mode
terminal
Charging way
CC/CP/VP
Charging current
0.2C(standard)
Maximum charging current
Max0.5C @25℃
Discharge way
CC/CP/VP
Discharge current
0.5C
Charge cut-off voltage
29.4V/CELL
29.4V/CELL
54.8V/CELL
54.8V/CELL
54.8V/CELL
Maximum discharge current
Max1C @25℃
Discharge cut-off voltage
22.4V
22.4V
36.4V
36.4V
36.4V
According to
LCD
Communication interface
RS485/RS232/CAN
Charging operating temperature
charging:0~+50℃
Discharge operating temperature
discharge:-20~+55℃
The quality assurance period
5 years
Applicable scope
hospital, bank data center, base frame type home,enterprise energy storagebackup power supply, wind complementary system,office,
military, base station and other uninterrupted energy storage power supply.
Product Description

Product Usage

  •

    •



Household solar power supply system

By storing energy during the day and meeting the needs of household appliances at night, we can save your electricity costs and save energy and environmental protection;
As an emergency backup power source for households, providing power support in case of power outages or other emergency situations.

  •

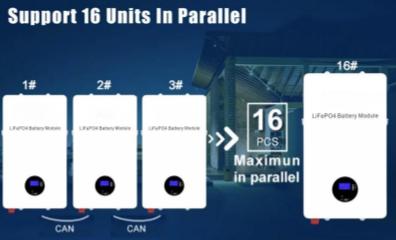

Supporting parallel connection of multiple batteries
When your home has a high demand for electricity, we support up to 16 batteries in parallel to provide you with sufficient power
support and solve your electricity problems.

When several batteries are stacked together, we will provide you with bracket products to ensure the safe and beautiful use of the
product.
Our products are widely praised!Come and consult us~
This is only the real feedback from some customers. If you have specific product requirements,
please contact our customer service personnel in time, and we will answer all your questions as soon as possible.
Packing&Shipping
The robotic arm machine is operated automatically, and the product is packaged strictly according to the safety packaging requirements. Finally, a truck is arranged to transport the goods to the port and board the ship in a timely manner.
