51.2V 10Kw Off Grid Solar Power System Home Energy Storage 48V 200Ah

Price Negotiable
Price: negotiated
MOQ: negotiated
Delivery Time: negotiated
Product Description

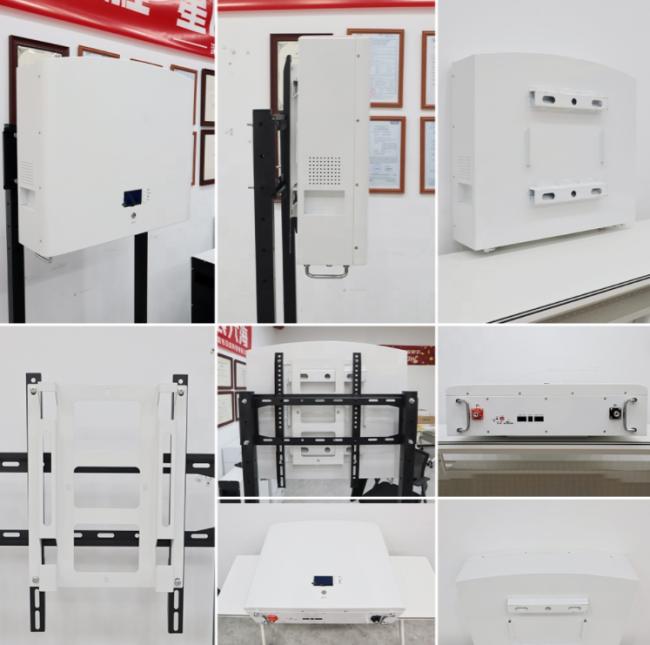

51.2V 10Kw Off Grid Solar Power System Home Energy Storage 48V 200Ah ​

Model

WM-LV 5KWH

WM-LV 10KWH

Main Parameter

Cell Technology

Lithium-iron Phosphate (LiFePO4)

Nominal Energy

5.12kWh

10.24kWh

Round-Trip Efficiency

98%

Scalability

Max. 15 Modules in Parallel

Dimensions(L/W/H)

615*500*160mm

615*580*215mm

Weight

53kg

88kg

Installation

Indoor

Warranty

5 Years Product Warranty

10 Years Performance Warranty

Electrical Parameter

Nominal Voltage

51.2V

Nominal Capacity

100Ah

200Ah

Max Charge Current

100A

Max. Cont. Charge Current

100A

Max Discharge Current

100A

Max. Cont. Discharge Current

100A

Operating Voltage

43.2V~57.6V

Standard Charge Voltage

58.4V+0.5

Discharge Cut-Off Voltage

43.2V+0.5

General Parameter

Cycle Life

≥6000 Times (80%DoD)

Service Life

10 Years

Protection Rating

IP55

Display

SOC Status Indicator(optional), LED Indicator

Communication

RS485, RS232, CAN

Charge Temperature

0°C~60°C (Under 0C extra heating mechanism)

Discharge Temperature

-20°C~60°C (Under 0Cwork with reduced capacity)

Storage Temperature

-40°C~55°C @ 60%±25% relative humidity

Compatible Inverters

SMA, Victron Energy, Deye, Goodwe, Growatt, Sermatec, etc.

*Contact us for the latest inverter-compatible list ** Under specific test conditions.

Packing & Shipping



Stable & Safety Package

Package : Carton + Wooden + Pallet or Customized

We usually provide DDP CIF by Sea for 48V Battery Packs.

Packing with Wooden Packing for safety shipping.

Contact us for more shipping details.


Recommend Products


★Source Factory & Direct distributor:
All of battery 100% original Grade A & Brand New.
Weekly Fresh Date Stocks, New produced cell.
Keep Long-term supply for your project. No worry about stocks problem.

★ Guaranteed Quality service:
100% tested guaranteed. The battery will be tested strictly before shipment. Matched voltage& IR guaranteed. Welcome QC checking &
on-line video checking before shipping.

★ Fully Warranty service guaranteed:
5 years warranty
100% technical support & 100% after-sales service.
Support fully refund if used cell or bad quality cell received from us!

★ OEM / ODM welcome:
Customized Lifepo4 battery pack support.
100% guarantee the quality as you expected.






● QUALITY

Well-established quality and process control system; Strictly compliancewith ISO9001; Fully certified with CE, UL, UN38.3 and ROHS.

● SERVICE

5 years warranty period; 24 hour rapid response; Worry-free aftersales service system.
