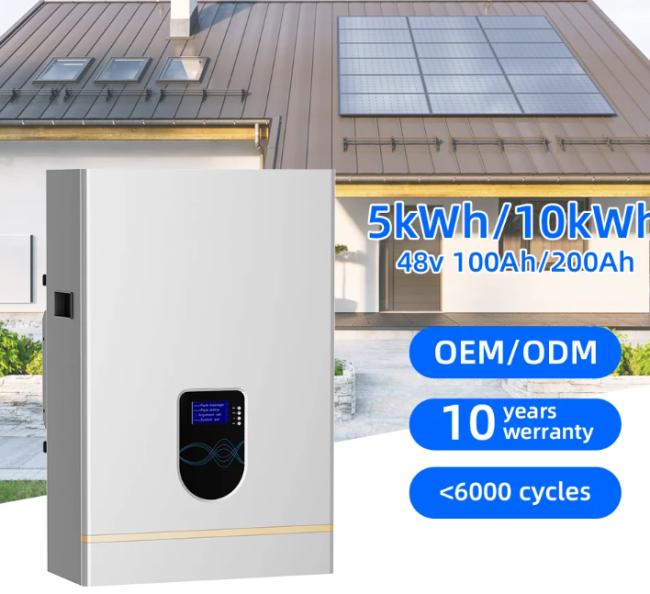

Wall Mount Battery Lifepo4 Power Wall Battery 10kwh 48v 200ah Solar Energy Storage Battery

Price Negotiable
Price: negotiated
MOQ: negotiated
Delivery Time: negotiated
Product Description
Wall Mount Battery Lifepo4 Power Wall Battery 10kwh 48v 200ah Solar Energy Storage Battery
Product Paramenters
Model
PW-48V-100A
PW-48V-200A
Series connection
16S
16S
Battery Energy
4.8KWh
9.6KWh
Nominal Capacity
100Ah
200Ah
Nominal voltage
48V
48V
Charge Voltage
54.75V
54.75V
Discharge Cut-off Voltage
39.5V
39.5V
Standard Charging Current
20A
40A
Max.Continuous Charging Current
100A
100A
Max Continuous Discharge Current
100A
100A
Cycle Life
≥6000 times@80%DOD,25℃
≥6000 times@80%DOD,25℃
Communication Protocol
RS485/CAN
RS485/CAN
Charge Temperature Range
0~60°C
0~60°C
Discharge Temperature Range
-10°C~65°C
-10°C~65°C
Size(LxWxH)
445×170×560mm
445×206×675mm
Net Weight
45KG
74KG
Package Size (L×W×H)
632×512×255mm
755×525×395mm
Gross Weight
66KG
98KG
Details Images

Production process
Product packaging

FAQ
Q1: Do your products have certifications?
A1: Yes, We are the assessment supplier by TUV and our products have the certificates of MSDS, CE, RoHs, FCC, UN38.3.

Q2: What's the price ?
A2:Please send us inquiry, your inquiry will be replied within 24 hours, we will let you know the latest price.

Q3:What's you delivery time?
A3:It depends on your quantity, but usually, 7 days for sample order, 30-45days for batch order

Q4: How about your payment and shipment?
A4: Payment: We accept T/T, Western Union,Paypal etc. terms of payment. Shipment: Usually by sea

Q5: How about your warranty?
A5: Normally,we provide 3-5 year warranty,and whole life technical support.

Q6: how can we guarantee quality?
A6: Always a pre-production sample before mass production; Always final Inspection before shipment;
