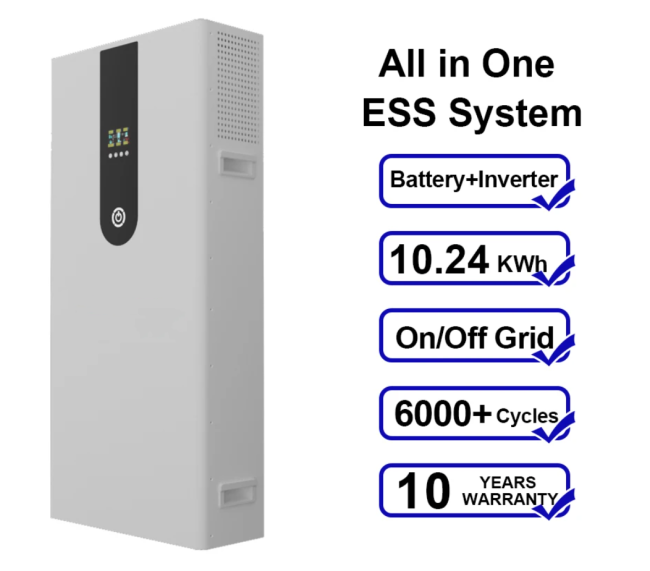

Lithium Ion 5kwh 10kwh Solar Battery 48v 100ah 200ah Lifepo4 Energy Storage Battery Inverter Battery Powerwall

Price Negotiable
Price: negotiated
MOQ: negotiated
Delivery Time: negotiated
Product Description

Lithium Ion 5kwh 10kwh Solar Battery 48v 100ah 200ah Lifepo4 Energy Storage Battery Inverter Battery Powerwall

Product Description
Model
IB48V-100Ah




Inverter
Rated Power
5000W
Output Waveform
Pure sine wave
Output Voltage
230Vac±5%
Output Frequency
50Hz or 60Hz(±0.2Hz)
Peak Effciency
90%
DC Input
48Vdc
Standby Consumption
<25W





Battery Pack
Energy
5kWh/ 7kWh/10kWh/ 15kWh/ Customize
Nominal Voltage
25.6V/ 51.2V/ Customize
Capacity
100/150/200/300/400Ah/ Customize
Charge Current
50/75/100/150/200A/ Customize
Discharge Current
100/150/200/300/400Ah/ Customize
Operatiing Temp.
-20 ~ 60 ℃ (-4 ~ 140℉)
Lifetime
≥6000+ times @80%DOD,0.5C/0.5C,25℃




BMS
(Cloud-based Function is optional)
Cloud-based Continuous Balancing Technology - Increases single charge range by 10%.
Cloud-based SOC Correction Technology - Reduces estimation error to 3%.
Cloud-based Auxiliary Power Control Technology - Extends battery lifespan by 15%.
20+ Monitoring Strategies with Alarm Alerts - 24/7/360-degree monitoring.
Real-time Information Push.

Company Profile

Guangzhou PMD New Energy Co., Ltd.     Our company specializes in the manufacturing and design of LiFePO4 and lithium cells and integrated battery packs for Green Storage Systems. We strive to offer alternative green energy solutions and provide the most efficient battery solutions for solar energy storage systems, 48V telecom station systems, 12V or 24V boat and RV energy systems, and more. To provide the best service for our customers, we offer OEM/ODM support from 7.4v-960v. We are proud to have attained international certifications of ISO9001 and SGS. Most of our products have also passed CE, MSDS, UN38.3, KC UL, BIS, and EN13849 approvals.

FAQ

Q1. How to proceed an order for solar kit?
A: At first, let us know your requirements or application.
In the following, We quote according to your requirements or our suggestions.Then you confirm the samples and places deposit for formal order.
In the end, We arrange the production. Therefore, all of these are as per your requirements.

Q2. Is it OK to print my logo on product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q3: Do you offer guarantee for the products?
A: Yes, we offer 1-5 years warranty to our products.

Q4: How to do if any quality problems on your side in the warranty time?
A: “Quality is our culture.” At first, take pictures or videos as proof and send to us.We will replace new ones for free. But please understand, the freight fee may be bone by you. We suggest you order items along with the replacement parts so that you can save shipping fee.
