Workshop Scissor Lift Table

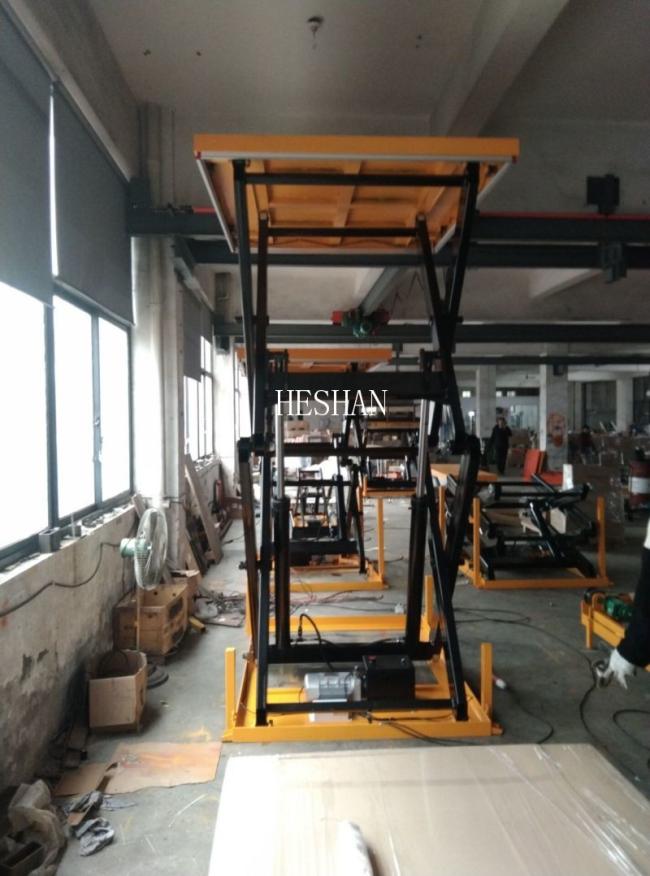

Customized 1000kg Workshop Electric Scissor Lift Table
Scissor lift tables are used in a variety of industrial, construction and manufacturing applications. They are ideal for lifting and positioning heavy loads in areas where space is limited and access is difficult. The table can be easily adjusted to the desired height, providing a safe and stable platform for the load.One of the key benefits of a scissor lift table is its versatility. It can be used for a wide range of tasks, from lifting and positioning heavy machinery, to transporting goods in a warehouse. The table can be fitted with a range of attachments, such as casters, conveyors, and workstations, to increase its functionality and make it more suitable for specific tasks.
- Load range: 1000kg~4000kg. Or customized according to customer requirements.
- Platform Size: standard parameters or special customization.
- Maximum lifting height: customized.
Standard Hysraulic Electric Scissor Lift Tbale Parameters:
(Can be customized if special size or requirement)
| Model | Load Capacity(KG) | Self Height(MM) | Max Platform Height(MM) | Platform Size(MM) | Base Size(MM) | Lifting time(s) | Motor(KW) | Net weight(KG) |
| SLT01 | 1000 | 205 | 1000 | 1300×820 | 1240×640 | 20~25 | 1.1 | 160 |
| SLT02 | 1000 | 205 | 1000 | 1600×1000 | 1240×640 | 20~25 | 1.1 | 186 |
| SLT03 | 1000 | 240 | 1300 | 1700×850 | 1580×640 | 30~35 | 1.1 | 200 |
| SLT04 | 1000 | 240 | 1300 | 1700×1000 | 1580×640 | 30~35 | 1.1 | 210 |
| SLT05 | 1000 | 240 | 1300 | 2000×850 | 1580×640 | 30~35 | 1.1 | 212 |
| SLT06 | 1000 | 240 | 1300 | 2000×1000 | 1580×640 | 30~35 | 1.1 | 223 |
| SLT07 | 1000 | 240 | 1300 | 1700×1500 | 1580×1320 | 30~35 | 1.1 | 365 |
| SLT08 | 1000 | 240 | 1300 | 2000×1700 | 1580×1320 | 30~35 | 1.1 | 430 |
| SLT2001 | 2000 | 230 | 1000 | 1300×850 | 1220×785 | 20~25 | 1.5 | 235 |
| SLT2002 | 2000 | 230 | 1050 | 1600×1000 | 1280×785 | 20~25 | 1.5 | 268 |
| SLT2003 | 2000 | 250 | 1300 | 1700×850 | 1600×785 | 25~35 | 2.2 | 289 |
| SLT2004 | 2000 | 250 | 1300 | 1700×1000 | 1600×785 | 25~35 | 2.2 | 300 |
| SLT2005 | 2000 | 250 | 1300 | 2000×850 | 1600×785 | 25~35 | 2.2 | 300 |
| SLT2006 | 2000 | 250 | 1300 | 2000×1000 | 1600×785 | 25~35 | 2.2 | 315 |
| SLT2007 | 2000 | 250 | 1400 | 1700×1500 | 1600×1435 | 25~35 | 2.2 | 415 |
| SLT2008 | 2000 | 250 | 1400 | 2000×1800 | 1600×1435 | 25~35 | 2.2 | 500 |
| SLT4001 | 4000 | 240 | 1050 | 1700×1200 | 1600×900 | 30~40 | 2.2 | 375 |
| SLT4002 | 4000 | 240 | 1050 | 2000×1200 | 1600×900 | 30~40 | 2.2 | 405 |
| SLT4003 | 4000 | 300 | 1400 | 2000×1000 | 1980×900 | 35~40 | 2.2 | 470 |
| SLT4004 | 4000 | 300 | 1400 | 2000×1200 | 1980×900 | 35~40 | 2.2 | 490 |
| SLT4005 | 4000 | 300 | 1400 | 2200×1000 | 2000×900 | 35~40 | 2.2 | 480 |
| SLT4006 | 4000 | 300 | 1400 | 2200×1200 | 2000×900 | 35~40 | 2.2 | 505 |
| SLT4007 | 4000 | 350 | 1300 | 1700×1500 | 1620×1400 | 35~40 | 2.2 | 570 |
| SLT4008 | 4000 | 350 | 1300 | 2200×1800 | 1620×1400 | 35~40 | 2.2 | 655 |
Description:
- The Scissor Lift Table complies with both American ANSI/ASME and European EN1570 standards, meeting rigorous industry requirements and ensuring high-quality performance and safety.
- Ample clearance between the scissors is maintained, ensuring safe operation and preventing damage to the lift table or surrounding objects.
- Thanks to its compact design, the lift table is easy to operate and maintain, optimizing space utilization and simplifying maintenance tasks.
- The lift table is designed to stop precisely at pre-determined locations, enabling accurate positioning and facilitating efficient loading and unloading processes.
- The heavy-duty cylinders are equipped with a drainage system and check valve, effectively preventing accidental lowering and providing an additional layer of safety during operation.
Safety Precautions:
- Industrial scissor lift table Explosion-Proof Valves: These valves safeguard the hydraulic pipes and prevent hydraulic pipe ruptures.
- Pressure Relief Valve: This valve helps regulate pressure and prevents high pressure buildup during upward movements.
- Emergency Descent Valve: In the event of an emergency or power failure, this valve enables a controlled descent of the platform.
- Anti-Fall Device: This feature ensures the stability and safety of the platform, preventing any accidental dropping.
- Automatic Safety Sensors: Equipped with sensors, the lift platform will automatically stop when it encounters any obstacles or barriers.
Conditions:
Quality warranty: 12 Months.Free Spare Parts Replacement.
Packing: will be packed by high quality boxes and put on pallet.
