Long Deck Mobile Scissor Lift 300KG Hydraulic Construction Platform Lift
300KG Hydraulic Construction Industrial Long Deck Mobile Scissor Lift
Hydraulic Self Propelled Scissor Lift work platforms are designed to provide access to elevated heights in a range of applications. This type of lift is powered by hydraulic technology, allowing them to operate in a variety of environments with minimal manual effort. The platform can be operated from ground level, and can reach heights up to 40 feet. These machines are typically used for construction, maintenance, installation and inspection operations, and are ideal for working in areas that are difficult to access. Safety features such as adjustable stabilizers and integrated brakes help ensure the operator's safety while working. With the flexibility and dependability of these machines, they can be used in multiple industries, including industrial and commercial facilities, airports, and warehouses.
| Model No. | GTJZ06 | GTJZ08 | GTJZ10 | GTJZ12 | GTJZ14 |
| Working Height(mm) | 8000 | 10000 | 12000 | 14000 | 15800 |
| Lifting Height (mm) | 6000 | 8000 | 10000 | 12000 | 13800 |
| Lifting capacity | 300 | 300 | 300 | 300 | 227 |
| Max height-guardrail unfold (mm) | 2150 | 2275 | 2400 | 2525 | 2590 |
| Max height-guardrail folded (mm) | 1190 | 1315 | 1440 | 1565 | 2050 |
| Overall Length (mm) | 2400 | 2640 | |||
| Overall Width (mm) | 1150 | 1130 | |||
| Platform Size (mm) | 2270×1150 | 2840x1390 | |||
| Platform extend size (mm) | 900 | ||||
| Min ground clearance (mm) | 110/20 | ||||
| Wheelbase (mm) | 1850 | ||||
| Min turn radius-inner wheel (mm) | 0 | ||||
| Min turn radius-outer wheel (mm) | 2100 | 2700 | |||
| Power source (v/kw) | 24/3.0 | 24/4.5 | |||
| Running speed-folding (km/h) | 4 | ||||
| Running speed-rising (km/h) | 0.8 | ||||
| Rising/falling speed (sec) | 40/50 | 70/80 | |||
| Battery (V/AH) | 4×12/135 | 4x12/150 | |||
| Charger (V/A) | 24/25 | 24v/30 | |||
| Max climbing ability (%) | 20 | ||||
| Max working allowable angle | 2-3° | ||||
| Way of control | Electro-hydraulic proportion control | ||||
| Driver | Double front-wheel | ||||
| Hydraulic drive | Double rear-wheel | ||||
| Wheel size-stuffed&no mark | Φ381×127 | ||||
| Whole weight (kg) | 1900 | 2080 | 2490 | 2760 | 3320 |

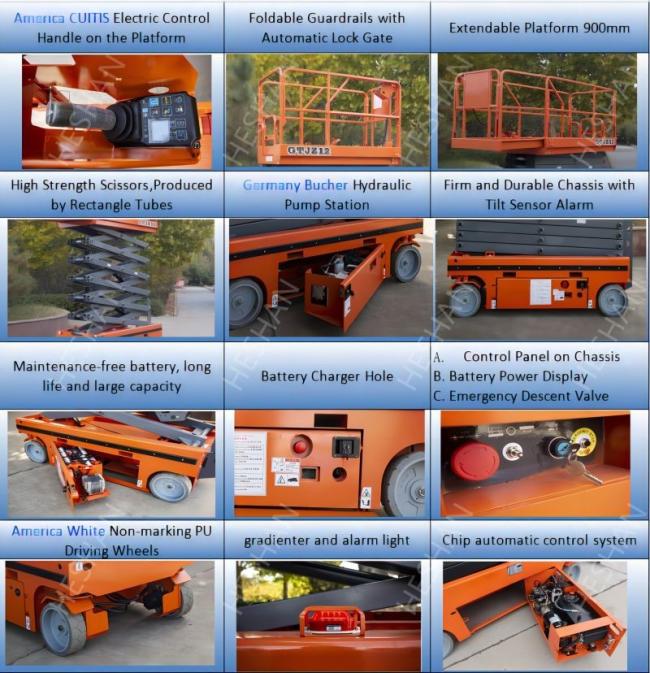

The Details Mobile scissor lift:
- Folding guardrails
- Multi-function control handle
- Anti-skidding platform
- Extendable platform
- Automatic lock gate
- High strength scissors
- Durable hydraulic cylinder
- Stable hydraulic pump station
- Hydraulic drive motor
- Non-marking PU driving wheels
- Pot hole automatic protection system
- Automatic brakes system
- Emergency stop button
- Emergent descent valve
- Automatic diagnostic indicator
- Tilt sensor alarm
- Siren
- Safety brackets
- Forklift hole
- Intelligent battery charger
- High capacity battery
- Controlled by imported intelligent technology.
- Powered by DC, can be controlled manually or automatically with adjustable speed.
- Excellent climbing ability.
- Recharge restriction for platform rising.
- Automatic braking function for driving motor.
- Emergent drop locked.
- Automatic malfunction diagnosis for convenient maintenance.
- Explosion-proof valves to protect hydraulic pipe and prevent pipe rupture.
- Spillover valve to prevent high pressure during upward movement and adjust pressure.
- Emergency decline valve for emergency descent or power off.
- Anti-dropping device to prevent platform falling.

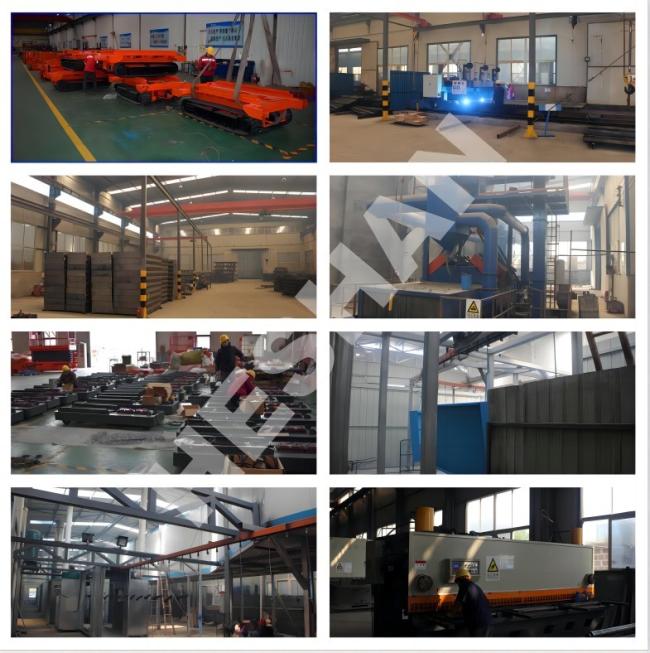

Scissor lift Factory:
