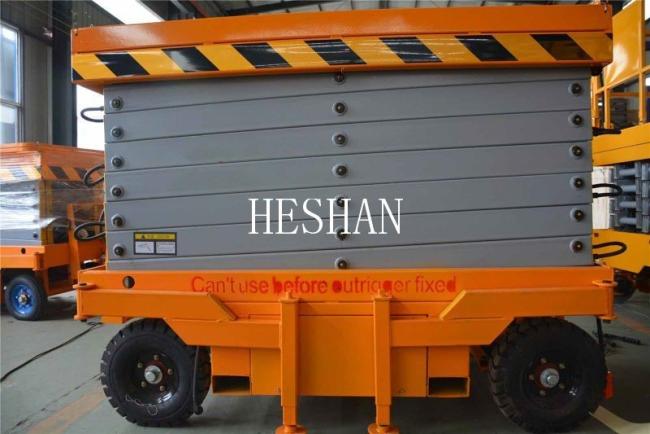

6M Portable Electric Hydraulic Miniaturemovable Scissor Lift

Mobile scissor lifts are a versatile and convenient solution for workers who need to access high heights. These lifts are designed to be easily moved from one location to another, making them ideal for a range of tasks in industries such as construction, maintenance, and warehousing. The lift uses a scissor mechanism to raise and lower the platform, providing a stable and secure working area for workers. Mobile scissor lifts are also equipped with a range of safety features, including automatic shut-off systems, overload protection, and non-slip platforms, ensuring a safe and comfortable working environment. Whether you need to change light bulbs, paint walls, or inspect equipment, mobile scissor lifts provide a practical and efficient solution for your needs.

Basic Parameter:

The unique configurations of the mobile scissor lift include:

1. A platform made of sturdy 60mm x 40mm rectangular tubing and reinforced with a 3mm checkered iron plate.

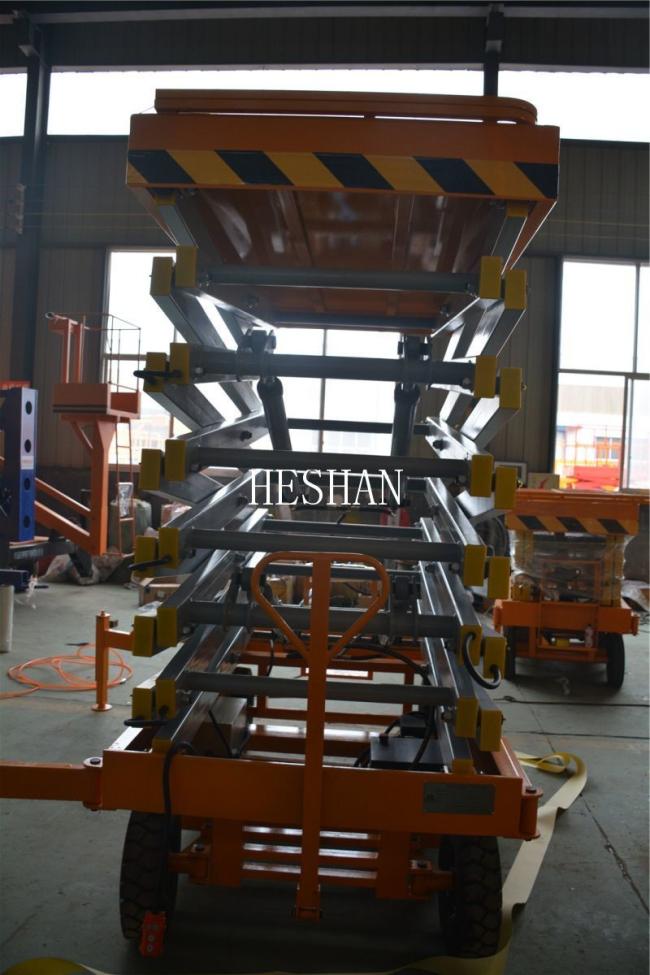

2. Scissors constructed of high strength manganese steel measuring 150mm x 50mm x 5mm.
3. A hydraulic system powered by a 310 10ml/r pump.
4. High precision hydraulic cylinders, with two sets of ￠80 and two sets of ￠100.
5. Durable piston rods, featuring ￠40 and ￠50 with a hard chromium plating surface.
6. A high-pressure oil pump and hydraulic oil adjusted for summer at 45＃ and winter at 32＃.
7. 600-9 rubber wheels, with four pieces in total.

In terms of safety, the mobile scissor lift is equipped with:

1. Explosion-proof valves for added protection.
2. Anti-skid plate for secure footing.
3. Overload protective system to prevent overloading.
4. Single control solenoid valves to prevent dropping in the event of power failure.
5. Emergency decline valve for emergency situations.
6. Four supporting legs for added stability.
