Industrial Articulated Boom Lift Hydraulic Cherry Picker Man Lift SGS Approved
Price:
USD 8000~USD 30000
MOQ:
1 set
Delivery Time:
15-25 work days
Brand:
HESHAN
Product Description

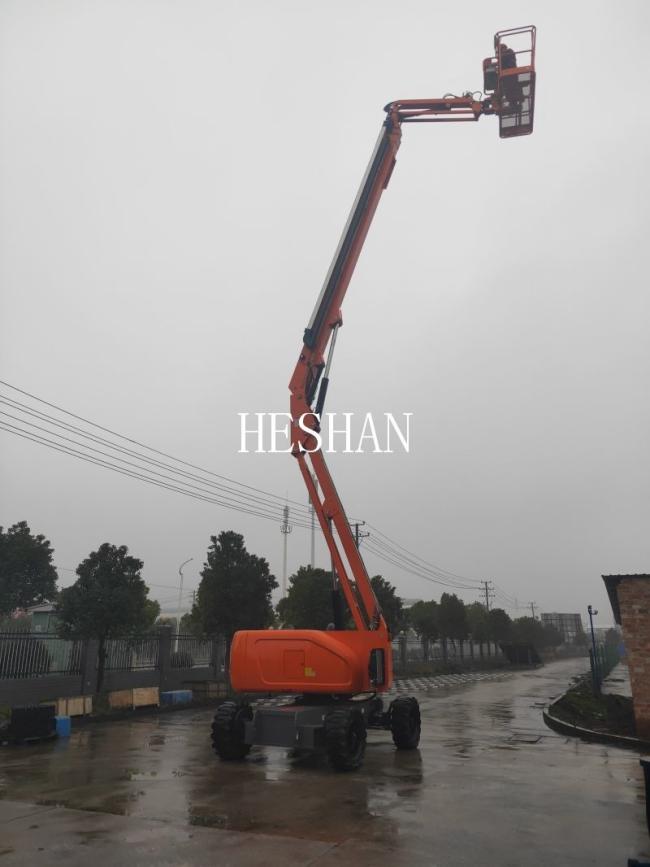

Hydraulic Lifting Equipment Man Lift Articulated Boom Lift Cherry Picker Lift
Articulated manlifts are essential tools in the field of high-altitude work. Their ability to extend and position the boom precisely, combined with their flexibility and maneuverability, make them ideal for accessing high and hard-to-reach areas. This equipment is commonly used in construction, maintenance, and industrial applications, where access to high-altitude areas is essential. Articulated manlifts offer a safe and efficient alternative to traditional access equipment, such as ladders and scaffolding, providing greater stability and reducing the risk of falls and other accidents. Overall, the importance of articulated manlifts in high-altitude work cannot be overstated, as they offer a versatile and efficient solution to accessing and working at height.
Specification:
| Model Type No. | GTZZ-12D | GTZZ-16D | GTZZ-20D | GTZZ-24D | GTZZ-25D | GTZZ-30D | GTZZ-38D | GTZZ-40D | GTZZ-45D | |
| Working Height Max | 14 m | 18 m | 22 m | 26.2 m | 27.1 m | 32 m | 40.1 m | 42.3 m | 47.8 m | |
| Platform Height Max | 12 m | 16 m | 20 m | 24.2 m | 25.1 m | 30 m | 38.1m | 40.3 m | 35.8 m | |
| Working Radius Max | 8 m | 9.8 m | 12.6 m | 15.8 m | 16 m | 20.2 m | 21.6 m | 21.6 m | 23 m | |
| Lifting capacity | 200kg | 230 kg | 230 kg | 230 kg | 230 kg | 480 kg | 480 kg | 480kg | 480 kg | |
| Crossing Height | 5m | 7.75 m | 9.2 m | 9.8 m | 9.2 m | 12.2m | 19.5m | 19.5m | 19.5m | |
| Length( stowed) Ⓓ | 5.3m | 7.7 m | 9.07 m | 9.92 m | 9.75 m | 12.52 m | 11.37 m | 12.15m | 11.6m | |
| Width (stowed) Ⓔ | 2m | 2.28 m | 2.38 m | 2.48 m | 2.58 m | 2.5 m | 2.5 m | 2.49m | 2.5 m | |
| Height(stowed) Ⓒ | 2.26m | 2.38 m | 2.49 m | 2.82 m | 2.8 m | 3.17 m | 3.17 m | 3.17m | 5.1 m | |
| Wheel base Ⓕ | 2.4m | 2.45m | 2.45m | 3 m | 3 m | 3.66 m | 3.96 m | 3.96m | 5.6 m | |
| Ground clearance Ⓖ | 200mm | 0.43 m | 0.43 m | 0.43 m | 0.43 m | 0.43 m | 0.43 m | 0.43 m | 0.38 m | |
| Platform Ⓑ*Ⓐ | 1.1*0.67m | 1.83*0.76 m | 1.83*0.76 m | 1.83*0.76 m | 1.83*0.76 m | 2.44×0.91m | 2.44×0.91m | 2.44*0.91m | 2.44×0.91m | |
| Tuning radius (inside) | 3.0m | 2.61 m | 2.66 m | 2.6 m | 2.6 m | 2.74 m | 3.13m | 3.13m | 2.69 m | |
| Tuning radius(outside) | 5.2m | 5.61 m | 5.66 m | 5.85m | 5.85 m | 5.85 m | 6.5m | 6.5m | 7.07 m | |
| Speed(stowed) | 3.2km/h | 4.2km/h | 4.2km/h | 4.2 km/h | 4.2 km/h | 4.14 m | 4.14 m | 4.14m | 4.4 km/h | |
| Travel speed(raised) | 0.8km/h | 1.1km/h | 1.1km/h | 1.1km/h | 1.1km/h | 1.1km/h | 1.1km/h | 1.1km/h | 1.1km/h | |
| Turn table swing | 360° Continuous | |||||||||
| Platform Leveling | Automatic leveling | |||||||||
| Swing Speed | 0~0.8rpm | 0~0.8rpm | 0~0.8rpm | 0~0.8rpm | 0~0.8rpm | 0~0.8rpm | 0~0.8rpm | 0~0.8rpm | 0~0.8rpm | |
| Grade ability | 30% | 45% | 45% | 45% | 45% | 45% | 45% | 45% | 40% | |
| Solid tire | 33*12-20 | 33×12-20 | 33×12-20 | 36×14-20 | 385/65-24 | 385/65-22.5 | 385/65-22.5 | 445/65-22.5 | 445/65-22.5 | |
Features & Advantages
- China's renowned YSD diesel pump station.
- Electrical box with waterproof and dustproof features, ideal for outdoor use.
- Control panel that is protected from rain.
- Self-leveling feature for optimal and safe operation.
- Water-resistant diesel engine, motor, and battery cover.
- Maintenance access point designed for easy use.
- Manually operated diesel engine accelerator, providing more flexible operation.
- Double cylinders with balance valve and emergency decline switch, ensuring safety even in case of hydraulic hose rupture.
- Basket leveling switch, making adjustments easier.
- Torsion shaft with excellent shock absorption for improved road performance.
- Hydraulic oil filtration alarm system that reminds you to replace oil if impurities are present.
- Basket and arm lock system to prevent equipment body sway during transportation.
- Illuminated platform for working.
- Brake lights connected to the tractor.
- Anti-pinch basket.
- Safety harness for operator protection.
- Stable rotary motor capable of 360-degree rotation.
- Free quick wear parts for prompt replacement included in the offer.
- Touch display fault code, easy maintenance.
Touch display fault code, easy maintenance.
Looking for a versatile machine that can tackle any job? Look no further than our boom lifts. With their strong ability to reach up and over obstacles, you can get to even the most hard-to-access areas. And with our articulating and telescopic boom lifts available, you can choose the right machine for your specific needs.
Superior Reach and Height:
Experience unmatched reach and height capabilities with our Articulated Boom lift. The extendable boom sections and articulating joints provide impressive working range, allowing operators to access elevated work areas that would otherwise be challenging to reach. With our Articulated Boom lift, no task is too high or out of reach.
Operator-Focused Design:
We prioritize operator comfort and convenience in the design of our Articulated Boom lift. The spacious platform provides ample room for operators to move comfortably, while ergonomic controls and adjustable seating enhance operator comfort during long work hours. We understand that a comfortable operator is a productive operator.
