12m Electric Mast Lift Aerial Platform Hydraulic Vertical Man Lift Ladder
Price:
1000~1800 USD per set
MOQ:
1 SET
Delivery Time:
5-8 work days
Brand:
HESHAN
Product Description

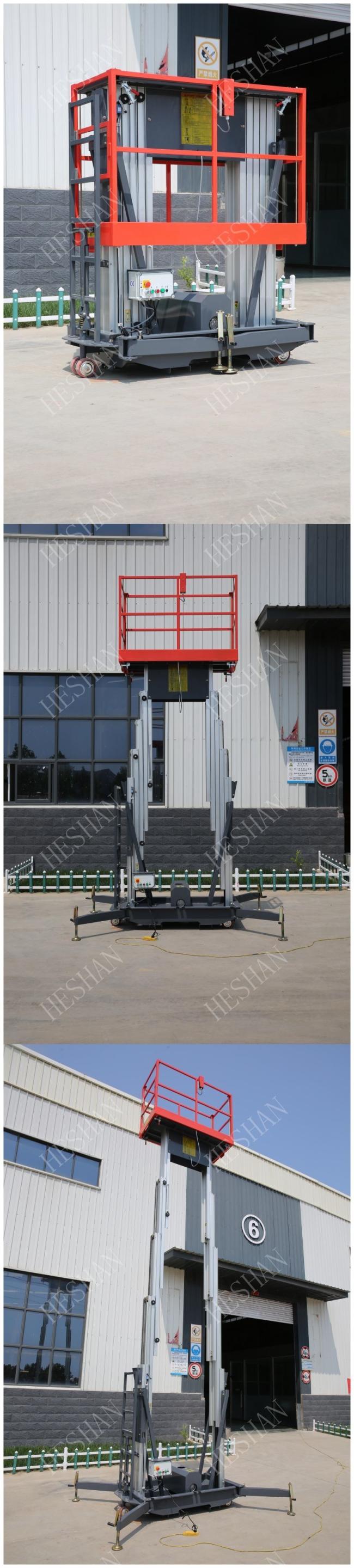

12m Electric Aerial Platform Hydraulic Vertical Mast Man Ladder Lift
Man Ladder Lifts that are suitable for a variety of applications, including construction sites, warehouses, factories, supermarkets, and more. Here are some key features of our Man Ladder Lift:
Multiple operation modes: Our Man Ladder Lift can be operated manually or electronically to meet different work requirements.
High stability: The equipment is made of high-strength materials and is designed to withstand heavy loads and perform reliably over time.
Easy operation: The Man Ladder Lift has a user-friendly operating system that is easy to use and requires no specialized training.

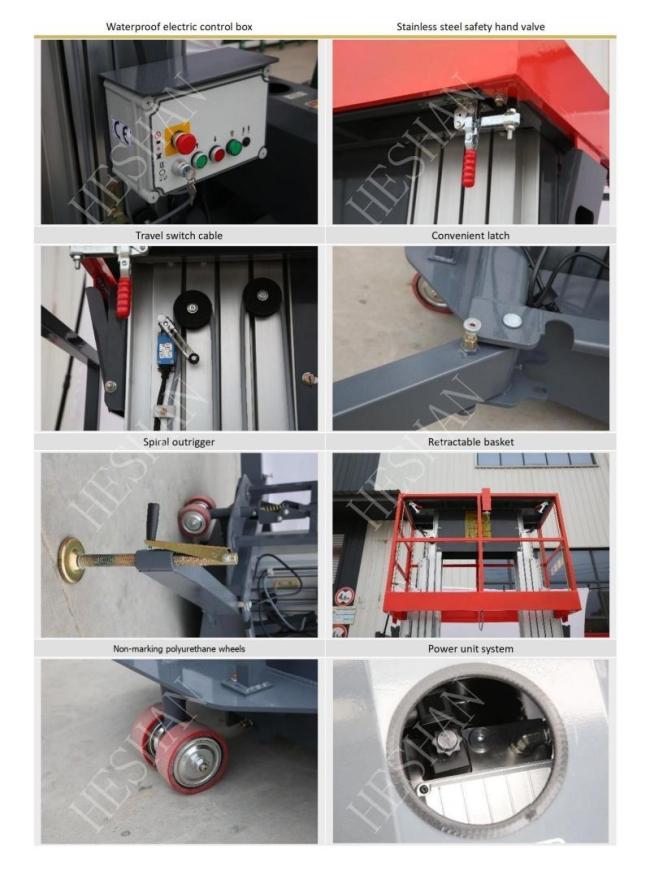

Safe and reliable: Our equipment is equipped with a variety of safety features, such as limit switches and overload protection, to ensure safe and reliable operation.
Multiple specifications: Our Man Ladder Lift comes in a range of specifications to meet different working environments and height requirements.
| Model No. | ADL-6 | ADL-8 | ADL-9 | ADL-10 | ADL-12 | |
| Max.Platform Height | 6m | 8m | 9m | 10m | 12m | |
| Max Working Height | 8m | 10m | 11m | 12m | 14m | |
| Load Capacity | 200kg | 200kg | 200kg | 200kg | 200kg | |
| Platform Size | 1.3*0.62m | 1.3*0.62m | 1.3*0.62m | 1.5*0.62m | 1.5*0.62m | |
| Occupants | One person | |||||
| Outrigger coverage | 1.77*1.82m | 1.77*1.82m | 1.77*1.82m | 2.1*2m | 2.1*2m | |
| Overall size | 1.54*1*1.99m | 1.54*1*1.99m | 1.54*1*1.99m | 1.76*1*1.99m | 1.76*1*1.99m | |
| Net Weight | 630kg | 680kg | 730kg | 800kg | 830kg | |
| Motor power | 1.5kw | 1.5kw | 1.5kw | 1.5kw | 1.5kw | |
| Options | Battery | 2*12V/100AH | ||||
| Motor | 2.2KW | |||||
| Charger | 12V/15A | |||||
