Automatic Warehouse Dock Leveler Hydraulic Fixed Pit Style Dock Leveler
Automatic Hydraulic Fixed Pit Dock Leveler Loading Bays Pit Leveler For Warehouse

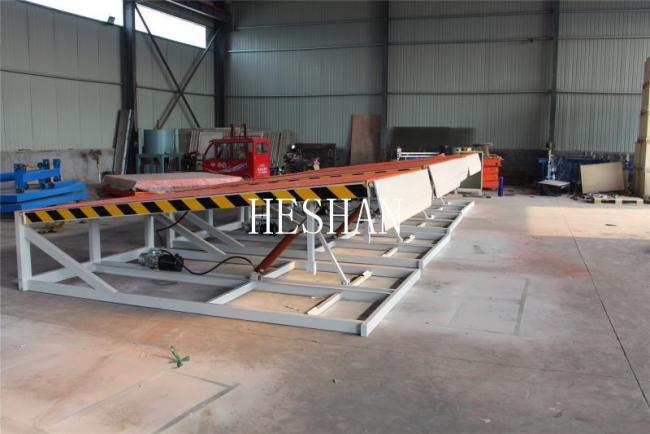

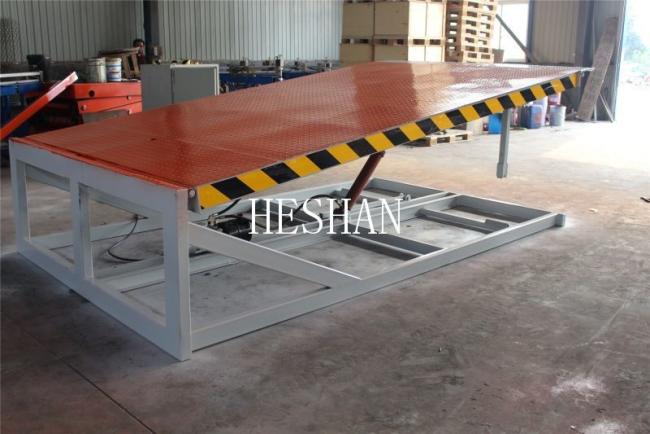

An Automatic Loading Dock Leveler Hydraulic Fixed Pit Dock Leveler is a type of loading dock equipment designed for warehouses and logistics centers. It is installed in a pit at the edge of the loading dock, making it flush with the warehouse floor, and is designed to bridge the gap between the warehouse floor and the truck bed.
The Automatic Loading Dock Leveler Hydraulic Fixed Pit Dock Leveler is equipped with safety features such as safety rails, non-slip surfaces, and automatic locking mechanisms, ensuring the safety of workers and goods being transported.
Specifications:
| Model No. | SDB-6 | SDB-8 | SDB-10 | SDB-12 | |
| Load Capacity (t) | 6 | 8 | 10 | 12 | |
| Platform Size (mm) | L2000/2500*W2000 | L2000/2500*W2000 | L2000/2500*W2000 | L2000/2500*W2000 | |
| Lip Width (mm) | 400 | 400 | 400 | 400 | |
| Travel Height (mm) | Updip | 300 | 300 | 300 | 300 |
| Downdip | 200 | 200 | 200 | 200 | |
| Motor Power (kw) | 0.75 | 0.75 | 0.75 | 0.75 | |
| Pit Size (mm) | 2080/2580*2040*600 | 2080/2580*2040*600 | 2080/2580*2040*600 | 2080/2580*2040*600 | |
| Electrical appliance | Delixi | Delixi | Delixi | Delixi | |
| 1X40’container Qty. | 20sets | 20sets | 20sets | 20sets | |
