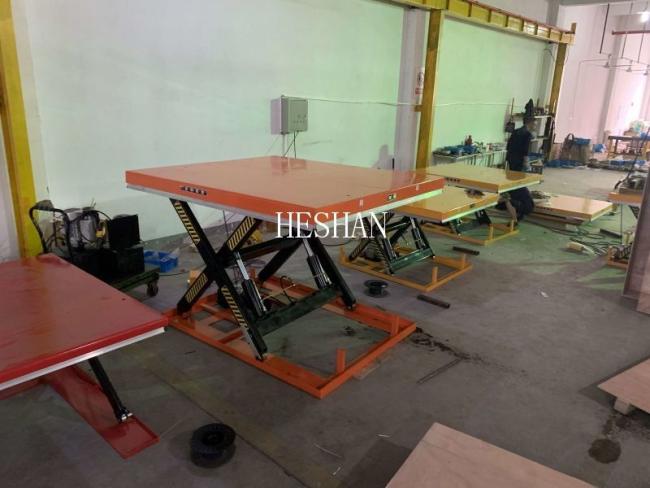

Hydraulic Fixed Stationary Automatic Lifting Table Hydraulic Scissors Lift Table
Hydraulic Fixed Stationary Automatic Lifting Table Hydraulic Scissors Lift Table
Scissor lift tables are used in a variety of industrial, construction and manufacturing applications. They are ideal for lifting and positioning heavy loads in areas where space is limited and access is difficult. The table can be easily adjusted to the desired height, providing a safe and stable platform for the load.One of the key benefits of a scissor lift table is its versatility. It can be used for a wide range of tasks, from lifting and positioning heavy machinery, to transporting goods in a warehouse. The table can be fitted with a range of attachments, such as casters, conveyors, and workstations, to increase its functionality and make it more suitable for specific tasks.
- Load range: 1000kg~4000kg. Or customized according to customer requirements.
- Platform Size: standard parameters or special customization.
- Maximum lifting height: customized.
Standard Hysraulic Electric Scissor Lift Tbale Parameters:
(Can be customized if special size or requirement)
| Model | Load Capacity(KG) | Self Height(MM) | Max Platform Height(MM) | Platform Size(MM) | Base Size(MM) | Lifting time(s) | Motor(KW) | Net weight(KG) |
| SLT01 | 1000 | 205 | 1000 | 1300×820 | 1240×640 | 20~25 | 1.1 | 160 |
| SLT02 | 1000 | 205 | 1000 | 1600×1000 | 1240×640 | 20~25 | 1.1 | 186 |
| SLT03 | 1000 | 240 | 1300 | 1700×850 | 1580×640 | 30~35 | 1.1 | 200 |
| SLT04 | 1000 | 240 | 1300 | 1700×1000 | 1580×640 | 30~35 | 1.1 | 210 |
| SLT05 | 1000 | 240 | 1300 | 2000×850 | 1580×640 | 30~35 | 1.1 | 212 |
| SLT06 | 1000 | 240 | 1300 | 2000×1000 | 1580×640 | 30~35 | 1.1 | 223 |
| SLT07 | 1000 | 240 | 1300 | 1700×1500 | 1580×1320 | 30~35 | 1.1 | 365 |
| SLT08 | 1000 | 240 | 1300 | 2000×1700 | 1580×1320 | 30~35 | 1.1 | 430 |
| SLT2001 | 2000 | 230 | 1000 | 1300×850 | 1220×785 | 20~25 | 1.5 | 235 |
| SLT2002 | 2000 | 230 | 1050 | 1600×1000 | 1280×785 | 20~25 | 1.5 | 268 |
| SLT2003 | 2000 | 250 | 1300 | 1700×850 | 1600×785 | 25~35 | 2.2 | 289 |
| SLT2004 | 2000 | 250 | 1300 | 1700×1000 | 1600×785 | 25~35 | 2.2 | 300 |
| SLT2005 | 2000 | 250 | 1300 | 2000×850 | 1600×785 | 25~35 | 2.2 | 300 |
| SLT2006 | 2000 | 250 | 1300 | 2000×1000 | 1600×785 | 25~35 | 2.2 | 315 |
| SLT2007 | 2000 | 250 | 1400 | 1700×1500 | 1600×1435 | 25~35 | 2.2 | 415 |
| SLT2008 | 2000 | 250 | 1400 | 2000×1800 | 1600×1435 | 25~35 | 2.2 | 500 |
| SLT4001 | 4000 | 240 | 1050 | 1700×1200 | 1600×900 | 30~40 | 2.2 | 375 |
| SLT4002 | 4000 | 240 | 1050 | 2000×1200 | 1600×900 | 30~40 | 2.2 | 405 |
| SLT4003 | 4000 | 300 | 1400 | 2000×1000 | 1980×900 | 35~40 | 2.2 | 470 |
| SLT4004 | 4000 | 300 | 1400 | 2000×1200 | 1980×900 | 35~40 | 2.2 | 490 |
| SLT4005 | 4000 | 300 | 1400 | 2200×1000 | 2000×900 | 35~40 | 2.2 | 480 |
| SLT4006 | 4000 | 300 | 1400 | 2200×1200 | 2000×900 | 35~40 | 2.2 | 505 |
| SLT4007 | 4000 | 350 | 1300 | 1700×1500 | 1620×1400 | 35~40 | 2.2 | 570 |
| SLT4008 | 4000 | 350 | 1300 | 2200×1800 | 1620×1400 | 35~40 | 2.2 | 655 |
Description:
- Meeting the stringent standards of American ANSI/ASME and European EN1570, the Scissor Lift Table ensures compliance with industry regulations and maintains high-quality standards.
- With adequate clearance between the scissors, safe operation is guaranteed, minimizing the risk of accidents and equipment damage.
- Thanks to its compact design, the lift table is easy to operate and maintain, saving time and effort for users.
- The lift table can stop precisely at pre-determined locations, enabling accurate positioning and efficient handling of loads.
- The heavy-duty cylinders come equipped with a drainage system and check valve, effectively preventing accidental lowering and enhancing operational safety.
Safety Precautions:
- Industrial scissor lift table Explosion-Proof Valves: These valves safeguard the hydraulic pipes and prevent hydraulic pipe ruptures.
- Pressure Relief Valve: This valve helps regulate pressure and prevents high pressure buildup during upward movements.
- Emergency Descent Valve: In the event of an emergency or power failure, this valve enables a controlled descent of the platform.
- Anti-Fall Device: This feature ensures the stability and safety of the platform, preventing any accidental dropping.
- Automatic Safety Sensors: Equipped with sensors, the lift platform will automatically stop when it encounters any obstacles or barriers.
Conditions:
Quality warranty: 24 Months.Free Spare Parts Replacement.
Packing: will be packed by high quality boxes and put on pallet.
