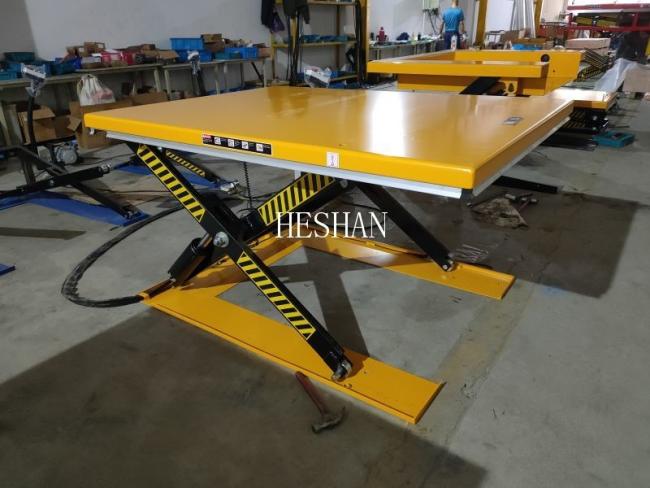

4000 LBS Scissor Lift Table AC Power Hydraulic Portable Electric Lift Table
4000IBS China 2023 New Electric AC Power Hydraulic Portable Scissor Lift Table
Scissor lift tables are used in a variety of industrial, construction and manufacturing applications. They are ideal for lifting and positioning heavy loads in areas where space is limited and access is difficult. The table can be easily adjusted to the desired height, providing a safe and stable platform for the load.One of the key benefits of a scissor lift table is its versatility. It can be used for a wide range of tasks, from lifting and positioning heavy machinery, to transporting goods in a warehouse. The table can be fitted with a range of attachments, such as casters, conveyors, and workstations, to increase its functionality and make it more suitable for specific tasks.
- Load range: 1000kg~4000kg. Or customized according to customer requirements.
- Platform Size: standard parameters or special customization.
- Maximum lifting height: customized.
Standard Hysraulic Electric Scissor Lift Tbale Parameters:
(Can be customized if special size or requirement)
| Model | Load Capacity(KG) | Self Height(MM) | Max Platform Height(MM) | Platform Size(MM) | Base Size(MM) | Lifting time(s) | Motor(KW) | Net weight(KG) |
| SLT01 | 1000 | 205 | 1000 | 1300×820 | 1240×640 | 20~25 | 1.1 | 160 |
| SLT02 | 1000 | 205 | 1000 | 1600×1000 | 1240×640 | 20~25 | 1.1 | 186 |
| SLT03 | 1000 | 240 | 1300 | 1700×850 | 1580×640 | 30~35 | 1.1 | 200 |
| SLT04 | 1000 | 240 | 1300 | 1700×1000 | 1580×640 | 30~35 | 1.1 | 210 |
| SLT05 | 1000 | 240 | 1300 | 2000×850 | 1580×640 | 30~35 | 1.1 | 212 |
| SLT06 | 1000 | 240 | 1300 | 2000×1000 | 1580×640 | 30~35 | 1.1 | 223 |
| SLT07 | 1000 | 240 | 1300 | 1700×1500 | 1580×1320 | 30~35 | 1.1 | 365 |
| SLT08 | 1000 | 240 | 1300 | 2000×1700 | 1580×1320 | 30~35 | 1.1 | 430 |
| SLT2001 | 2000 | 230 | 1000 | 1300×850 | 1220×785 | 20~25 | 1.5 | 235 |
| SLT2002 | 2000 | 230 | 1050 | 1600×1000 | 1280×785 | 20~25 | 1.5 | 268 |
| SLT2003 | 2000 | 250 | 1300 | 1700×850 | 1600×785 | 25~35 | 2.2 | 289 |
| SLT2004 | 2000 | 250 | 1300 | 1700×1000 | 1600×785 | 25~35 | 2.2 | 300 |
| SLT2005 | 2000 | 250 | 1300 | 2000×850 | 1600×785 | 25~35 | 2.2 | 300 |
| SLT2006 | 2000 | 250 | 1300 | 2000×1000 | 1600×785 | 25~35 | 2.2 | 315 |
| SLT2007 | 2000 | 250 | 1400 | 1700×1500 | 1600×1435 | 25~35 | 2.2 | 415 |
| SLT2008 | 2000 | 250 | 1400 | 2000×1800 | 1600×1435 | 25~35 | 2.2 | 500 |
| SLT4001 | 4000 | 240 | 1050 | 1700×1200 | 1600×900 | 30~40 | 2.2 | 375 |
| SLT4002 | 4000 | 240 | 1050 | 2000×1200 | 1600×900 | 30~40 | 2.2 | 405 |
| SLT4003 | 4000 | 300 | 1400 | 2000×1000 | 1980×900 | 35~40 | 2.2 | 470 |
| SLT4004 | 4000 | 300 | 1400 | 2000×1200 | 1980×900 | 35~40 | 2.2 | 490 |
| SLT4005 | 4000 | 300 | 1400 | 2200×1000 | 2000×900 | 35~40 | 2.2 | 480 |
| SLT4006 | 4000 | 300 | 1400 | 2200×1200 | 2000×900 | 35~40 | 2.2 | 505 |
| SLT4007 | 4000 | 350 | 1300 | 1700×1500 | 1620×1400 | 35~40 | 2.2 | 570 |
| SLT4008 | 4000 | 350 | 1300 | 2200×1800 | 1620×1400 | 35~40 | 2.2 | 655 |
Description:
- The Scissor Lift Table meets the standards set by American ANSI/ASME and European EN1570, complying with rigorous safety and quality regulations.
- Adequate clearance between the scissors guarantees safe operation and minimizes the risk of accidents or damage.
- The compact design of the lift table enables easy operation and maintenance, optimizing usability and reducing downtime.
- The lift table features the capability to stop at precise, pre-determined locations, facilitating accurate positioning and efficient load handling.
- The heavy-duty cylinders are equipped with a drainage system and check valve, effectively preventing accidental lowering and enhancing safety measures during operation.
Safety Precautions:
- Industrial scissor lift table Explosion-Proof Valves: These valves safeguard the hydraulic pipes and prevent hydraulic pipe ruptures.
- Pressure Relief Valve: This valve helps regulate pressure and prevents high pressure buildup during upward movements.
- Emergency Descent Valve: In the event of an emergency or power failure, this valve enables a controlled descent of the platform.
- Anti-Fall Device: This feature ensures the stability and safety of the platform, preventing any accidental dropping.
- Automatic Safety Sensors: Equipped with sensors, the lift platform will automatically stop when it encounters any obstacles or barriers.
Conditions:
Quality warranty: 24 Months.Free Spare Parts Replacement.
Packing: will be packed by high quality boxes and put on pallet.
