Wood Lifting 5000kg Heavy Load Scissor Electric Hydraulic Lift Table
Wood Lifting 5000kg Heavy Load Scissor Electric Hydraulic Lift Table
Scissor lift tables are used in a variety of industrial, construction and manufacturing applications. They are ideal for lifting and positioning heavy loads in areas where space is limited and access is difficult. The table can be easily adjusted to the desired height, providing a safe and stable platform for the load.One of the key benefits of a scissor lift table is its versatility. It can be used for a wide range of tasks, from lifting and positioning heavy machinery, to transporting goods in a warehouse. The table can be fitted with a range of attachments, such as casters, conveyors, and workstations, to increase its functionality and make it more suitable for specific tasks.
- Load range: 1000kg~4000kg. Or customized according to customer requirements.
- Platform Size: standard parameters or special customization.
- Maximum lifting height: customized.
Standard Hysraulic Electric Scissor Lift Tbale Parameters:
(Can be customized if special size or requirement)
| Model | Load Capacity(KG) | Self Height(MM) | Max Platform Height(MM) | Platform Size(MM) | Base Size(MM) | Lifting time(s) | Motor(KW) | Net weight(KG) |
| SLT01 | 1000 | 205 | 1000 | 1300×820 | 1240×640 | 20~25 | 1.1 | 160 |
| SLT02 | 1000 | 205 | 1000 | 1600×1000 | 1240×640 | 20~25 | 1.1 | 186 |
| SLT03 | 1000 | 240 | 1300 | 1700×850 | 1580×640 | 30~35 | 1.1 | 200 |
| SLT04 | 1000 | 240 | 1300 | 1700×1000 | 1580×640 | 30~35 | 1.1 | 210 |
| SLT05 | 1000 | 240 | 1300 | 2000×850 | 1580×640 | 30~35 | 1.1 | 212 |
| SLT06 | 1000 | 240 | 1300 | 2000×1000 | 1580×640 | 30~35 | 1.1 | 223 |
| SLT07 | 1000 | 240 | 1300 | 1700×1500 | 1580×1320 | 30~35 | 1.1 | 365 |
| SLT08 | 1000 | 240 | 1300 | 2000×1700 | 1580×1320 | 30~35 | 1.1 | 430 |
| SLT2001 | 2000 | 230 | 1000 | 1300×850 | 1220×785 | 20~25 | 1.5 | 235 |
| SLT2002 | 2000 | 230 | 1050 | 1600×1000 | 1280×785 | 20~25 | 1.5 | 268 |
| SLT2003 | 2000 | 250 | 1300 | 1700×850 | 1600×785 | 25~35 | 2.2 | 289 |
| SLT2004 | 2000 | 250 | 1300 | 1700×1000 | 1600×785 | 25~35 | 2.2 | 300 |
| SLT2005 | 2000 | 250 | 1300 | 2000×850 | 1600×785 | 25~35 | 2.2 | 300 |
| SLT2006 | 2000 | 250 | 1300 | 2000×1000 | 1600×785 | 25~35 | 2.2 | 315 |
| SLT2007 | 2000 | 250 | 1400 | 1700×1500 | 1600×1435 | 25~35 | 2.2 | 415 |
| SLT2008 | 2000 | 250 | 1400 | 2000×1800 | 1600×1435 | 25~35 | 2.2 | 500 |
| SLT4001 | 4000 | 240 | 1050 | 1700×1200 | 1600×900 | 30~40 | 2.2 | 375 |
| SLT4002 | 4000 | 240 | 1050 | 2000×1200 | 1600×900 | 30~40 | 2.2 | 405 |
| SLT4003 | 4000 | 300 | 1400 | 2000×1000 | 1980×900 | 35~40 | 2.2 | 470 |
| SLT4004 | 4000 | 300 | 1400 | 2000×1200 | 1980×900 | 35~40 | 2.2 | 490 |
| SLT4005 | 4000 | 300 | 1400 | 2200×1000 | 2000×900 | 35~40 | 2.2 | 480 |
| SLT4006 | 4000 | 300 | 1400 | 2200×1200 | 2000×900 | 35~40 | 2.2 | 505 |
| SLT4007 | 4000 | 350 | 1300 | 1700×1500 | 1620×1400 | 35~40 | 2.2 | 570 |
| SLT4008 | 4000 | 350 | 1300 | 2200×1800 | 1620×1400 | 35~40 | 2.2 | 655 |
Description:
- The surface of the Scissor Lift Table is treated with a high-quality stoving varnish, delivering exceptional anti-corrosion protection for long-lasting performance and durability.
- A premium pump station ensures smooth and stable lifting and lowering operations, guaranteeing reliable and efficient functionality.
- The scissor design of the table incorporates anti-pinch technology and self-lubricating main pin-rolls, promoting enhanced durability and reducing maintenance needs.
- With the inclusion of a removable lifting eye, lifting and installation become effortless, streamlining the process and maximizing convenience.

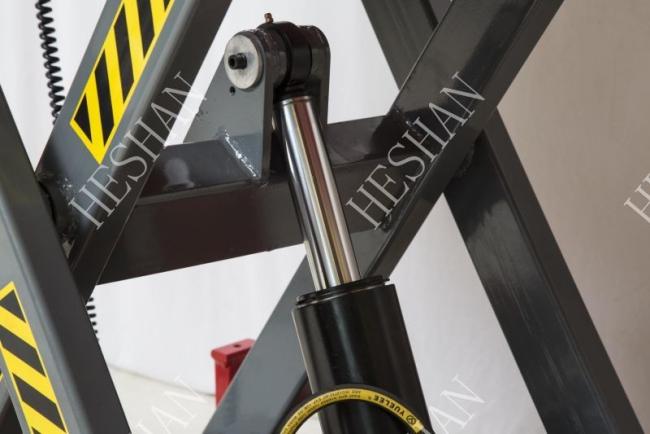

- The heavy-duty cylinders are equipped with a drainage system and check valve to prevent unexpected lowering in the event of a hose burst, prioritizing safety during operation.
- To safeguard against overloading, a pressure relief valve is integrated, while the flow control valve allows for adjustable descent speed, offering precise control and flexibility.
- The platform is effectively protected by a durable aluminum alloy blend-stop, ensuring reliable shielding against impact and wear.
Safety Precautions:
- Industrial scissor lift table Explosion-Proof Valves: These valves safeguard the hydraulic pipes and prevent hydraulic pipe ruptures.
- Pressure Relief Valve: This valve helps regulate pressure and prevents high pressure buildup during upward movements.
- Emergency Descent Valve: In the event of an emergency or power failure, this valve enables a controlled descent of the platform.
- Anti-Fall Device: This feature ensures the stability and safety of the platform, preventing any accidental dropping.
- Automatic Safety Sensors: Equipped with sensors, the lift platform will automatically stop when it encounters any obstacles or barriers.
Conditions:
Quality warranty: 24 Months.Free Spare Parts Replacement.
Packing: will be packed by high quality boxes and put on pallet.
