Practical Wooden Aluminium Composite Panel Facade Nontoxic Weatherproof
Fireproof Decoration ACP Sheet Aluminum Composite Panel With Wood Grain
PVDF Aluminum Composite Panel dimensions:
1) Available thickness: 3mm, 4mm and 6mm
2) Available width: 1000-2000mm; 1220mm, 1250mm and 1500mm are favored
3) Length: Maximum is up to 5800mm; 2440mm, 2500mm, 3050mm and 4050mm are most popular
4) Thickness of aluminum sheet: 0.3mm, 0.4mm and 0.5mm
5) Customized panel size available
PVDF ACP applications:
A) Widely used for architectural wall cladding like galleries, exhibition, saloons, stores, offices, banks, hotels, restaurants and apartments.
B) Decorative materials for buildings.
C) Kitchen cabinets, billboards, signboards, tunnels, subway, interiors.
D) Ceilings, eaves, galleries, balconies, partitions, interior decorations.
E) Telephone booths, vehicle bodies, yachts, industrial usage etc
| Material | Front side | Aluminum Alloy(3003) coated with Fluorin carbon resin (PVDF) or Polyester resin (PE) roasting painting |
| Core | Non-toxic polyethylene or Plastic fireproof materials(B1/A2) | |
| Back side | Aluminium alloy sheet coated with polyester resin painting |
Specification of Aluminum composite panel
| Panel Thickness | 2mm,3mm,4mm,5mm,6mm are available |
| Alu thickness |
0.5mm,0.4mm,0.3mm,0.21mm,0.18mm,0.15mm, 0.12mm,0.1mm,0.06mm |
| Width |
1220mm(regular),1250mm,1300mm,1500mm, 1550mm,1570mm,1575mm(Maximum) |
| Length | 2440mm(regular),and or by customer’s offers,5800mm(Maximum) |
| Standard size |
1220(Width)x2440(Length)x3mm(Thickness); 1250(Width)x2440(Length)x4mm(Thickness); |
| Surface Finish | MIRROR ,MARBLE IMITATION,WOOD IMITATION,BRUSH,PVC FILM,PP FILM,PEARL SERIES,GLOSSY SURFACE,MATT SURFACE |
| Core material | ( Normal non toxic polyethylene, one side unbroken polyethylene, two side unbroken polyethylene, virgin LDPE, ) B1 non-combustible mineral filled core,A2 non-combustible mineral filled core |
| Coating | PE COATING,PVDF COATING,FEVE COATING,ANODIZED COATING |
| Standard | According to China National Standard GB/t 17748-2008 |
Features
1.Light weight, high strength, extreme rigidity; superior impact resistance,
2.Excellent surface flatness and smoothness ;
3.Heat insulation, sound insulation, fire-resistance;
4.Acid-resistance, alkali-resistance, good weather proofing and non-resonance;
5.Various uniform colors ,can be easily processed and fabricated, quickly installed;
6.Elegant and magnificent, good flexibility fits various designs;
7.Easily maintenance, simply cleaning.
Applications

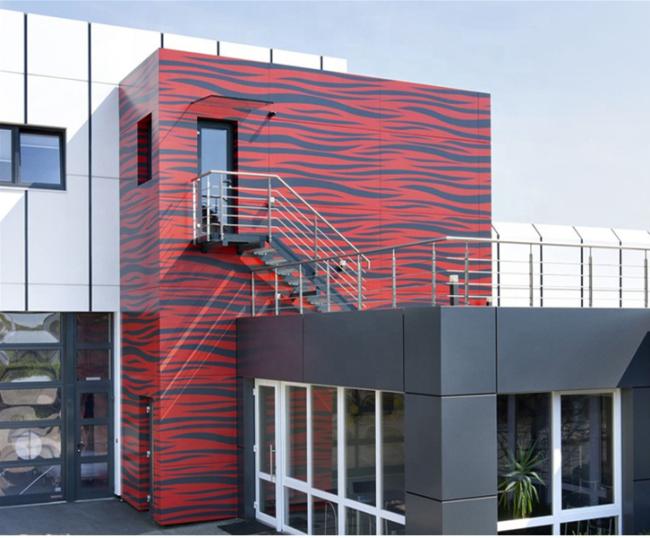

1.Constructional exterior curtain walls;
2.Decorative renovation for store-added old buildings;
3.Indoors decoration for interior walls, ceilings, bathrooms, kitchens and balconies;
4.Gallaies,exhibition,saloons,stores,offices,banks,hotels,restaurants and apartments;
5.Advertisement board, display platforms and signboards;
6.Raw materials in industrial purpose;
7.Materials used for vehicle and boat.
