Electrical Control Wheat Flour Processing Plant Machine 60 Ton 220KW

Wheat flour mill plant is designed and installed together with the steel structure support. The main support structure is made of three levels: the roller mills are located on the ground floor, the sifters are installed on the first floor, the cyclones and pneumatic pipes are on the second floor.

Workshop height is relatively low to reduce customers’ investment. Optional PLC control systems can realize central control with a high degree of automation and make operation easier and more flexible. Enclosed ventilation can avoid dust spills to keep high sanitary working conditions. The whole mill can be compactly installed in a warehouse and designs can be customized as per different requirements.

Cleaning Section

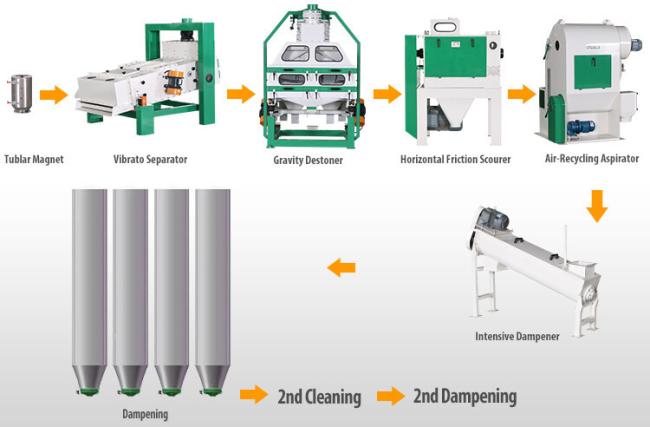

In the cleaning section, we adopt drying-type cleaning technology. It normally includes 2 times sifting, 2 times scouring, 2 times de-stoning, one time purifying, 4 times aspiration, 1 to 2 times dampening, 3 times magnetic separation, and so on. In the cleaning section, there are several aspiration systems that can reduce the dust spray-out from the machine and keep a good working environment. This is a complicated thorough flow sheet that can remove most of the coarse offal, middle size offal, and fine offal in the wheat.

Milling Section

In the milling section, there are four types of systems to mill the wheat to flour. They are the 4-Break system, 7-Reduction system,1-Semolina system, and 1-Tail system. The whole design will insure less bran is mixed into the bran and the flour yield is maximized. Because of the well-designed pneumatic lifting system, the whole mill material is transferred by a High-pressure fan. The milling room will be clean and sanitary for aspiration adoption.

Flour Blending Section

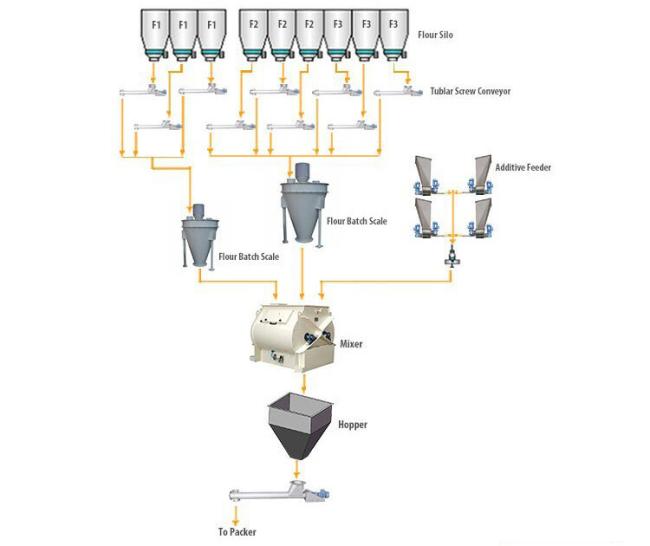

The flour blending system mainly consists of a pneumatic conveying system, bulk flour storage system, blending system, and final flour discharging system. It is the most perfect and efficient way to produce tailored flour and keep the stability of flour quality. For this 200TPD flour mill packing and blending system, there are 3 flour storage bins. The flour in storage bins is blown into 3 flour packing bins and packed finally.

Packing Section

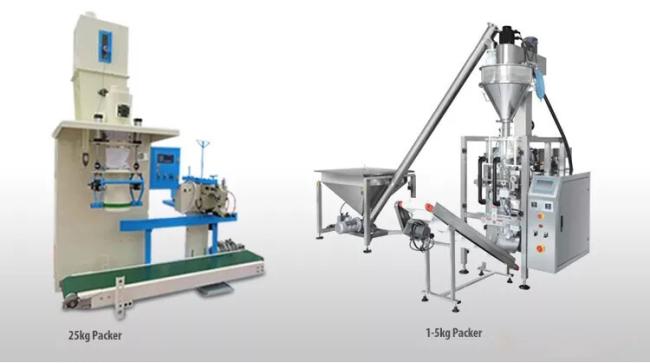

The packing machine has features of high measuring accuracy, fastpacking speed, reliable and stable working. It can weigh and count automatically, and it can accumulate weight. The packing machine has the function of fault self-diagnosis. The packing machine is with sealed type bag-clamping mechanism, which can prevent material from leaking out.The packing specification includes 1-5kg,2.5-10kg,20-25kg,30-50kg.The clients can choose different packing specifications according to requirements.

Electrical Control And Management

We will supply an electrical control cabinet, signal cable, cable trays and cable ladders, and other electrical installation parts. The substation and motor power cable are not included except customer especially required. PLC control system is an optional choice for customers. In a PLC control system, all the machinery is controlled by Programmed Logical Controller which can ensure the machinery runs stably and fluently.

The system will make some judgments and do reactions accordingly when any machine is at fault or stopped abnormally. At the same time, it will alarm and remind the operator to settle the faults.

Complete set of wheat flour processing plant adopt various configuration modes for different choices. They are of assembly line design, reasonable layout, beautiful performance.The flour processing plant is with advanced technical process and flexible adjustment. It can produce grade flour and special flour, etc.Rollers mills are manufactured precisely and controlled by manual or pneumatic mode. It can make better grinding effect compared with other ordinary flour processing plant.
