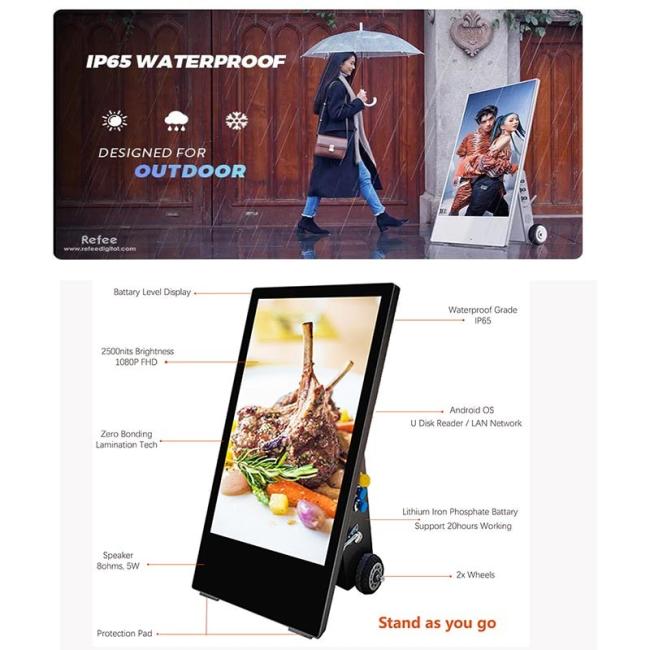

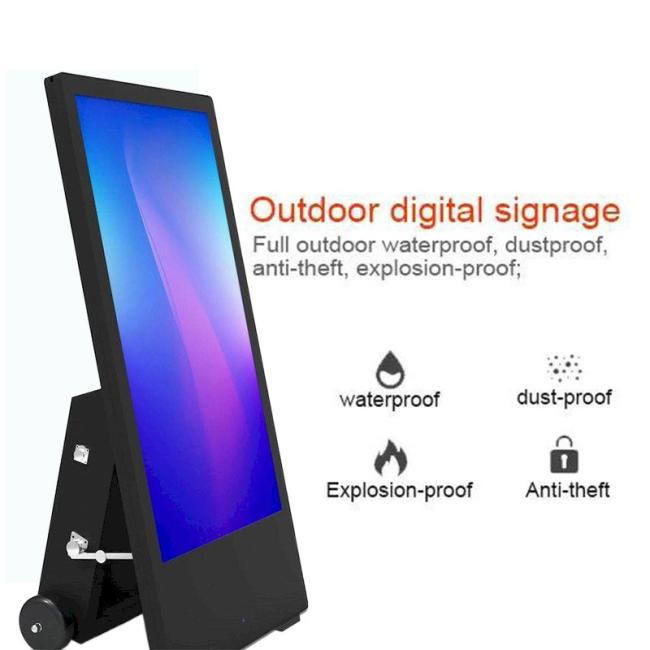

Outdoor Movable Digital Display Totem Advertising Signage Waterproof IP65 Super Thin
Movable Outdoor Digital Signage Advertising Dispaly High Brightness Waterproof IP65
Product Advantages
Full lamination technology is the process of sticking the trackpad (or just the protective glass) to the display using liquid adhesive, gel. In general, this process improves the optical performance of the module, as well as durability and reliability.
The full-bonding process uses an optical-grade adhesive to bond the glass to the top surface of the display. It eliminates the usual air gap between the trackpad and display. When eliminating the air gap, we reduce the number of internal reflective surfaces, thereby increasing the optical performance of the LCD screen. This phenomenon improves readability by reducing reflections and correcting contrast.
Specification of Digital Signage for Advertising
| Item | Subitem | 43INCH TFT-LCD | |
| LCD screen | Resolution ratio | 1920x1080(FHD) | |
| Visible area (mm) | 940.896(H)x 529.254(V) | ||
| Aspect Ratio | 16:9 | ||
| luminance(cd/m2) | 2000(Automatic photosensitivity) | ||
| Color depth | 16.7M | ||
| Viewing angle | 178° | ||
| Contrast ratio | 3000:1 | ||
| Main engine | Multimedia format | Video (MPG, AVI, MP4, RM, RMVB, TS), Audio (MP3, WMA), Image( JPG, GIF, BMP, PNG) | |
| CPU | RK3288 | ||
| RAM | 2GB DDR4 | ||
| ROM | 8GB NAND | ||
| USB | USB2.0 HOST (x2) | ||
| LAN | 10/100M Ethernet | ||
| Wi-Fi | 802.1 1b/g/n | ||
| Operating system | Android 5.1 | ||
| Suona | 8Ω 5W x2 | ||
| Battery (optional) | Battery technology | Adopt outdoor special lithium iron phosphate battery, with better service life, higher resistance to high temperature and high safety factor | |
| Charging time | 8 hours | ||
| Duration | 15 hours以上 | ||
| Battery capacity | 62000mAh | ||
| Voltage | 24V | ||
| Power | 58~110W(Automatic photosensitive power consumption is a variable value) | ||
| Power supply (optional) | 110V | ||
| 220V | |||
| Brightness (optional) | 1500cd/m², battery support >18 hours | ||
| 2000cd/m² , battery support >15 hours | |||
| 2500cd/m² , battery support >12 hours | |||
| Overall | Product size (WxHxD) | 1244x614x190mm | |
| Package size(WxHxD) | 800mm/370mm/1510mm | ||
| Rough weight(kg) | |||
| Net weight(kg) | 55KG | ||
| Work environment | Operate temperature | -20℃ to 70℃ | |
| Storage temperature | -30℃ to 80℃ | High-temperature resistance 105 ℃ maximum | |
| Operate humidity | 10% to 80% | ||
| Storage humidity | 5% to 95% | ||
| Accessories | Remote control, operation manual, charger, charging cable | ||
| Warranty | 1 year warranty | ||
Advantages
