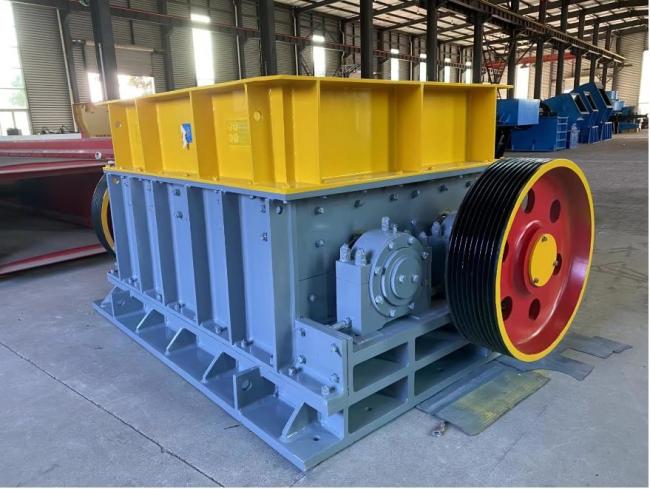

ISO9001 Coal Crushing Machines 75KW*2 Industrial Roller Crusher Low Energy Consumption
Coal Crushing Double Roller Crusher Large Crushing Ratio Low Energy Consumption
Product Introduction
The Double Roller Crusher has a large crushing capacity, and the motor and the reducer are connected by a torque-limiting hydraulic coupling to prevent power overload and sensor overload protection, which is safe and reliable. The spacing between the toothed rollers is adjustable before leaving the factory, and the toothed roller bearings are lubricated centrally. The optimal design of the tooth shape, using the patented eagle claw teeth for instant crushing, high efficiency and low consumption, and uniform grain output. The Double Roller Crusher has a simple structure and is easy to operate.
Technical Reference Data
| Model | Diameter of roller (mm) | Length of roller (mm) | Maximum side length of feeding material (mm) | Grain size of discharging material(mm) | Production capacity (t/h) | Power (kw) | Soft connection weight (t) | Direct connection weight (t) |
| XCMD500 | 500 | 1000 | ≤350 | ≤100-200 | 75-150 | 37*2 | 11.5 | 10.2 |
| 1500 | 100-250 | 45*2 | 13.8 | 12.5 | ||||
| 2000 | 150-350 | 90*2 | 16.5 | 14.8 | ||||
| 2500 | 200-500 | 110*2 | 20 | 18.3 | ||||
| XCMD650 | 650 | 1000 | ≤500 | ≤100-300 | 150-350 | 45*2 | 14.3 | 12.5 |
| 1500 | 200-450 | 55*2 | 20.5 | 18 | ||||
| 2000 | 250-550 | 75*2 | 25 | 23 | ||||
| 2500 | 300-650 | 90*2 | 31 | 27 | ||||
| XCMD750 | 750 | 1000 | ≤600 | ≤100-300 | 150-350 | 45*2 | 25 | 23 |
| 1500 | 200-450 | 55*2 | 28.5 | 26.5 | ||||
| 2000 | 250-550 | 75*2 | 32 | 29.2 | ||||
| 2500 | 300-650 | 90*2 | 35.8 | 32.8 | ||||
| XCMD850 | 850 | 1000 | ≤680 | ≤100-300 | 300-650 | 75*2 | 29 | 26.5 |
| 1500 | 400-1000 | 90*2 | 34.5 | 31.5 | ||||
| 2000 | 450-1200 | 110*2 | 39 | 36 | ||||
| 2500 | 500-1500 | 132*2 | 42 | 39 | ||||
| XCMD1000 | 1000 | 1000 | ≤800 | ≤100-300 | 400-750 | 90*2 | 49.8 | 44 |
| 1500 | 500-1200 | 110*2 | 55 | 49.2 | ||||
| 2000 | 550-1500 | 132*0 | 61 | 55.5 | ||||
| 2500 | 650-1800 | 160*2 | 68 | 63 | ||||
| XCMD1200 | 1200 | 1500 | ≤960 | ≤100-400 | 700-1500 | 160*2 | 84 | 76 |
| 2000 | 800-1800 | 185*2 | 96 | 88 | ||||
| 2500 | 1000-2500 | 220*2 | 109 | 101 |
Equipment Crushing Assembly
FAQ
1. Are you a crushing and screening equipment manufacturer?
Yes, we are a professional manufacturer of crushing and screening equipment. We welcome customers to visit our factory at any time.
2. How long is the delivery time of your product?
The delivery time is within 30-90 days.
3. Do you provide machine operation guidance?
Yes. We have professional engineers for installation, commissioning and operation guidance.
