330-980 TPH Throughput Heavy Duty Apron Feeder In Coal Handling Plant Strong Bearing
Price:
USD 128,986.30-151,870.97 one set
MOQ:
1 set
Delivery Time:
35 days
Brand:
BENO
Product Description
330-980 TPH Throughput Apron Plate Feeder Strong Bearing Capacity Feeding Equipment
Equipment Characteristics
1. The main components of the Apron Plate Feeder include frame, drive device, head device, operating mechanism, tail tensioning device, etc.
2. The production capacity of the Apron Plate Feeder is 330-980 tons per hour.
3. The chain plate width of the Apron Plate Feeder is 2000 mm, and the chain length is 8000 mm.
4. The motor power of the Apron Plate Feeder is 45 kW.
5. The weight of the Apron Plate Feeder is 42.8 tons.
Equipment Advantages
1. The Apron Plate Feeder has a wide range of applications and strong adaptability to materials.
2. The Apron Plate Feeder has strong bearing capacity and large throughput.
3. The installation mode of the Apron Plate Feeder is flexible, and materials can be transported horizontally or with a certain tilt angle.
4. The Apron Plate Feeder operates stably, safely and reliably.
Technical Reference Data
| Model | Chain plate width (mm) | plate chain length (mm) | Maximum feed side length (mm) | Production capacity (t/h) | Chain speed (r/min) | Power (kw) | Weight (t) |
| XCBW8005 | 800 | 5000 | ≤400 | 50-150 | 0.05-0.2 | 7.5 | 13.8 |
| XCBW1006 | 1000 | 6000 | ≤450 | 70-200 | 0.05-0.2 | 11 | 17.5 |
| XCBW1008 | 8000 | 15 | 20 | ||||
| XCBW1010 | 10000 | 22.8 | |||||
| XCBW1013 | 13000 | 18.5 | 26.5 | ||||
| XCBW1206 | 1200 | 6000 | ≤650 | 120-280 | 0.05-0.2 | 18.5 | 21 |
| XCBW1208 | 8000 | 23.8 | |||||
| XCBW1210 | 10000 | 22 | 25.6 | ||||
| XCBW1212 | 12000 | 28.5 | |||||
| XCBW1506 | 1500 | 6000 | ≤800 | 200-600 | 0.05-0.2 | 22 | 26.5 |
| XCBW1508 | 8000 | 29.5 | |||||
| XCBW1513 | 13000 | 30 | 36.8 | ||||
| XCBW1608 | 1600 | 8000 | ≤850 | 220-680 | 0.05-0.2 | 37 | 31.3 |
| XCBW1810 | 1800 | 10000 | ≤850 | 280-820 | 0.05-0.2 | 37 | 38.6 |
| XCBW2008 | 2000 | 8000 | ≤1000 | 330-980 | 0.05-0.2 | 45 | 42.8 |
Note: The feeding capacity of the Apron Plate Feeder in the table is based on dry and medium-hardness block materials, ore, rock, lump coal, and other materials whose temperature is not more than 100 ℃. The loose density of the materials is 1.6 tons per cubic meter, and the stone density is 2.7 tons per cubic meter.

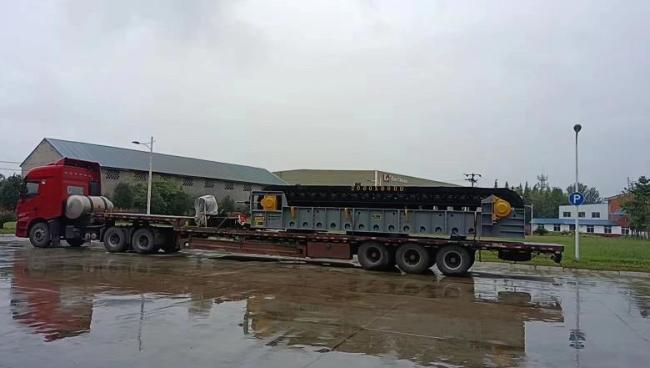

Equipment Delivery
