China High Capacity Primary Gyratory Crushers 380 To 510TPH Hard Rock Crushing for sale

High Capacity Primary Gyratory Crushers 380 To 510TPH Hard Rock Crushing

Price Negotiable

Price: USD 369,863.01-435,483.87 one set

MOQ: 1 set

Delivery Time: 60 days

Brand: BENO

Product Description

Large Throughput Gyratory Crusher 380-510 TPH Output Hard Rock Crushing

Equipment Description

The Gyratory Crushers produced by our company have many models, complete specifications, advanced design, reliable performance and stable operation, which are well received by customers. Our Gyratory Crusher is mainly used in building materials, chemical industry and other industries. It can be used to crush materials with large particle size and high hardness, and has a large crushing ratio. Gyratory Crusher is the preferred coarse crushing equipment for large mining crushing enterprises.

Equipment Principle

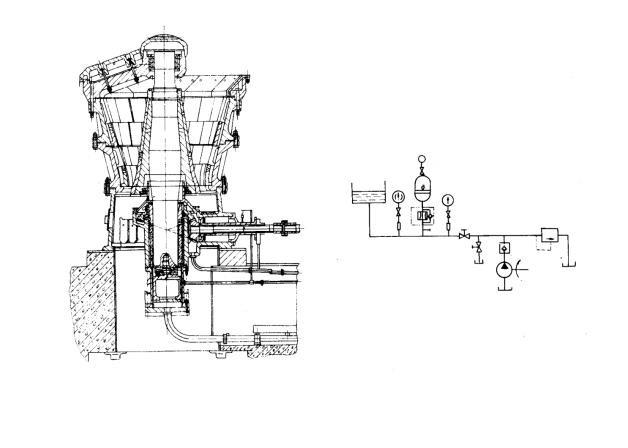

The cone breaking cone performs a rotary swing motion under the eccentric sleeve action, driving the crushing wall to squeeze and rub the material between the crushing wall and the rolling mortar wall. According to the lamination theory, the material is subjected to multiple directions of force, crushed and polished according to its own texture, forming stable stone particles. Those that meet the discharge requirements fall from the rotary swing gap of the crushing wall, and the remaining materials continue to be crushed until they meet the requirements.

Equipment Characteristics

1. The size of the feeding port of this Gyratory Crusher is 900 mm, and the maximum feeding particle size is 750 mm.

2. The size of the ore discharge port of this Gyratory Crusher is 90 mm, and the adjustment range of the ore discharge port is 90-120 mm.

3. The production capacity of this Gyratory Crusher is 380-510 tons per hour.

4. The installed power of this Gyratory Crusher is 220 kW.

Technical Reference Data

Model	Size of feed opening (mm)	Maximum feed size (mm)	Size of discharge port (mm)	Discharge port adjustment range (mm)	Power (kw)	Production capacity (t/h)
XCXP0506	500	420	60	60-75	130	140-170
XCXP0710	700	580	100	100-130	155	310-400
XCXP0909	900	750	90	90-120	220	380-510
XCXP0913			130	130-160	250	625-770
XCXP0917			170	170-190	280	815-1050
※XCXP1200	1200	1000	160-210	160-230	450	1250-1800
※XCXP1200	1200	1000	160-210	160-230	450	1250-1800
※XCXP1400	1400	1200	170	170-210	500	1520-2660

Equipment advantages

1. Higher crushing efficiency: Adopting an optimized structure of fixed spindle and ball surface axis, which is higher than the efficiency of spring cone breaking.

2. Strong production capacity: The combination of crushing stroke, crushing speed, and crushing chamber shape results in higher yield than spring cone crushing.

3. Better finished product particles: Adopting a proprietary laminated crushing principle, the proportion of cubes in the finished product is significantly increased, needle like particles are reduced, and the grading is more reasonable.

4. Better finished product particles: Adopting a proprietary laminated crushing principle, the proportion of cubes in the finished product is significantly increased, needle like particles are reduced, and the grading is more reasonable.

5. Excellent lubrication mechanism: A multi-point split hydraulic lubrication control system ensures dual protection and overload protection for equipment bearing lubrication.
