YKW85 Series Hollow Rotary Actuators Table

1. Products Overview

The hollow shaft rotation platform is a new type of reducer product. Its hollow shaft can easily integrate equipment needed in applications, such as optical instruments, cameras, sensors, etc., which can achieve high -precision rotation motion control.

Its working principle is to convert the input small scale rotation movement into the rotation movement of the workpiece platform, and at the same time, the speed are reduced and torque increased by the integrated gears.

Functions:

Rotating function:

The hollow shaft rotation platform can achieve a high -precision rotation motion of 360 degrees, which can accurately control the rotation speed and direction.

Carrying function:

The hollow shaft rotation platform can carry a certain weight object, maintaining its stability and balance during the rotation process.

Positioning function:

The hollow shaft rotation platform is equipped with a high -precision positioning system, which can accurately locate the objects on the rotating platform to a specific location.

Applications:

Industrial automation:

The hollow shaft rotation platform is often used in industrial production links such as processing, assembly or testing. Through the rotation platform, the workpiece can be processed and tested at multiple angles to improve production efficiency and quality.

Scientific research:

The hollow shaft rotation platform is widely used in scientific research fields such as physics, chemistry, and biology. For example, in optical experiments, the mid -air rotation platform can be used to adjust the incident angle of the sample to light, and study reflection and transmission phenomenon at different angles.

Medical image:

The hollow shaft rotation platform also has certain applications in the field of medical imaging. For example, in CT scanning, the hollow shaft rotation platform can be used to scan the patient's organs or tissues along different angles to obtain more comprehensive and accurate image data.

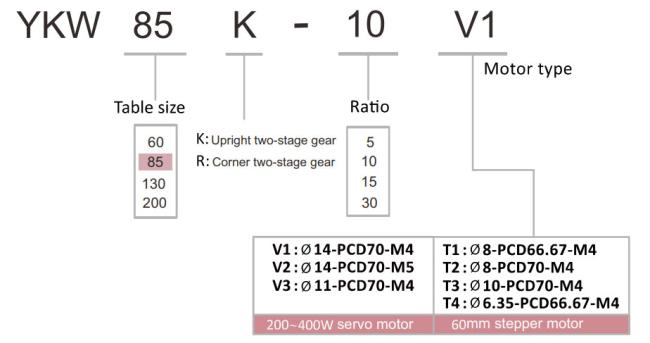

2. Naming Rules

3.YKW85 Series Hollow Rotary Table Main Performance Specifications

4. Mechanical Dimensions (in mm)

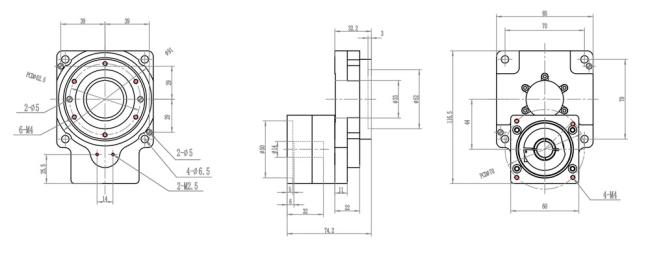

YKW85K5/10 mechanical drawings as bellow,

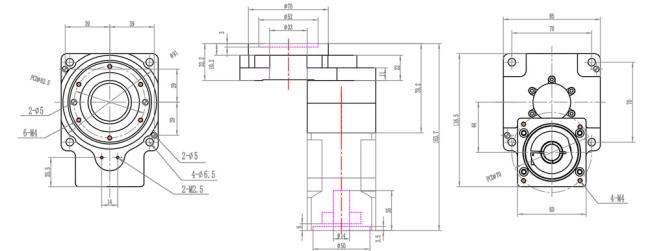

YKW85K15/30 ​mechanical drawings as bellow,
