YKW130 Series Hollow Rotary Actuators Table

1. Products Overview

The hollow shaft rotation platform is a new type of reducer product. Its hollow shaft can easily be used to integrate equipment needed in applications, such as optical instruments, cameras, sensors, etc., which can achieve high -precision rotation motion control.

The advantages of the hollow shaft rotation platform include high -precision, high stability, high efficiency, low noise, etc., which are widely used in the fields of robots, industrial automation, CNC machine etc.

Its working principle is to convert the input small scale rotation movement into the rotation movement of the workpiece platform, and at the same time, the speed are reduced and torque increased by the integrated gears.

Model Slection Guide:

The selection of the hollow shaft rotation platform needs to consider multiple factors, such as platform load, turntable diameter, rotation speed, and environmental environment. You need to choose according to the specific application scenarios and requirements.

Platform load:

According to the load size of the actual needs, select the hollow rotation platform with the appropriate load.

Turning diameter:

According to the size of the object that is rotated by actual needs, select the appropriate diameter of the hollow rotation platform.

Rotating speed:

According to the actual needs of the rotation, select the appropriate speed rotation platform.

Use environment:

Consider the use environment, such as temperature, humidity, vibration, etc., select the appropriate environmental adaptability mid -air rotation platform.

Accuracy Requirements:

According to the accuracy requirements of actual needs, select the appropriate accuracy of the hollow rotation platform.

Specification machine selection: Select the appropriate deceleration model and specifications according to the torque and speed of the rotation of the actual needs.

Other requirements:

According to actual needs, choose other special requirements, such as encoders, locking devices, etc.

Applications:

The hollow shaft rotation platform is widely used in the automation, such as medical imaging, articulated robots, CNC machine, laser marking machine, precision pairing mechanism, light -loaded mechanical joint joints and other fields.

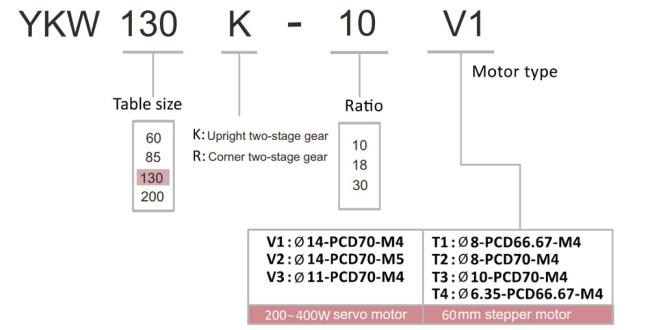

2. Naming Rules

3.YKW85 Series Hollow Rotary Table Main Performance Specifications

4. Mechanical Dimensions (in mm)

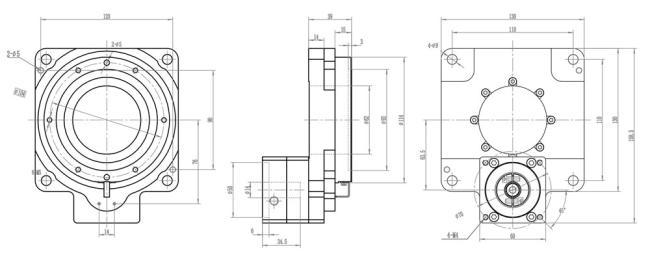

YKW130K10/18 mechanical drawings as bellow,

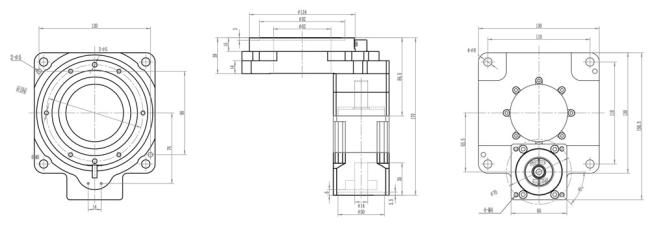

YKW130K30 mechanical drawings as bellow,
