86LHS Series Six Wires 2000N Force 2 Phase Nema34 No Captive External Nut Hybrid linear Stepper Motors Linear Acuators
1. Hybrid Linear Stepper Motors Overview
Hybrid linear stepper motor converts the rotation movement into a linear movement. Due to the accurate linear positioning ability and stability, it is widely used in industrial automation applications. The followings are some of the most common hybrid linear motor applications.
- 3D Printer: In a 3D printer, the screw motor is used to control the linear movement of the printed head in different directions, thereby achieving layers of stacking and creating three -dimensional objects.
- Automated Production Line: The screw motor is used in the production line for material handling, assembly and positioning, and provides high -precision positioning and control.
- Medical Equipment: In the medical field, the screw motor is used to control the movement of medical equipment, such as X -ray equipment, CT scanner and surgery robot.
- Textile Equipment: Textile machines need to control the movement of fabrics, such as weaving machines and sewing machines, to achieve precise fabric processing and sewing operations.
- Semiconductor Manufacturing: In the semiconductor industry, the screw motor is used to control the precise exercise of semiconductor equipment, such as printing circuit board manufacturing equipment.
- Electronic Equipment Assembly: During the electronic manufacturing process, the screw motor is used to assemble linear components, such as the LCD panel assembly and the positioning of the printing circuit board.
- Scientific Research Equipment: In laboratory and scientific research fields, screw motors are used to control the linear movement of instruments, such as the focal length adjustment of microscope, and sample movement.
2. Hybrid Stepper Motor Naming Rules and General Technical Specifications
Linear stepper motor naming rules,
General Specifications,
| Step Angle | 1.8° (2 Phase) |
| Step Angle Accuracy | ±0.09° |
| Size | Nema34, 86mm |
| Insulation Grade | 500VDC, 20 MΩ Min. ,Class B |
| Dielectric Strengt | 500 VAC for 1 Minute |
| Temperature Rise | Less than 80℃ (Rated Current) |
| Suface Temperature | Max.Allowed 100℃ |
| Humidity Range | 20% to 90% RH |
| IP Grade | IP40 |
| Certificates | Rohs, CE, CCC |
3. Hybrid Linear Stepper Motor Performance Datasheet
| Model Name | Wiring |
Rated Voltage |
Rated Current |
Resistance /phase |
Inductance /phase |
Power Consumption | Temp. Rise | Weight |
Insulation Resistance |
|
86LHS5474 |
Bipolar |
2.85V | 5.47A | 0.52Ω | 2.86mH | 31.2W | 75℃ | 2.3kg | 20MΩ |
| 86LHS3124 |
5V |
3.12A |
1.6Ω | 8.8mH | |||||
| 86LHS1304 |
12V |
1.3A |
9.23Ω | 51mH | |||||
| 86LHS3126 | Unipolar | 5V | 3.12A | 1.6Ω | 4.4mH | ||||
| 35LHS1306 | 12V | 1.3A | 23.0Ω | 25.5mH |
Note: Customization of motor specifications available.
| Code | Leadscrew Thread Dimensions in mm | ||
| diameter | step | lead | |
| 3 | φ15.88 | 0.0127 | 2.54 |
| B | φ15.88 | 0.015875 | 3.175 |
| Y | φ15.88 | 0.0635 | 12.7 |
| Z | φ15.88 | 0.127 | 25.4 |
4. Mechanical Dimensions (in mm)

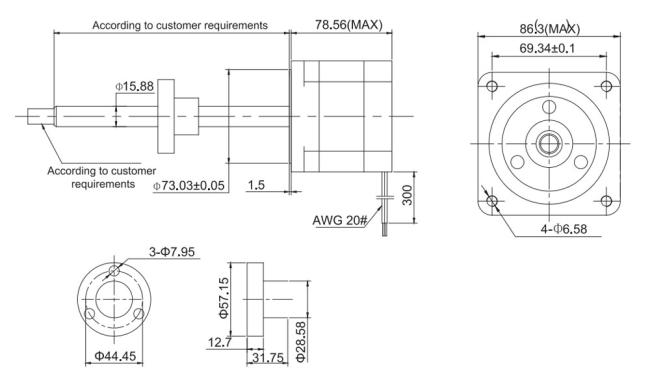

External Nut Type Mechanical Drawings as bellow,

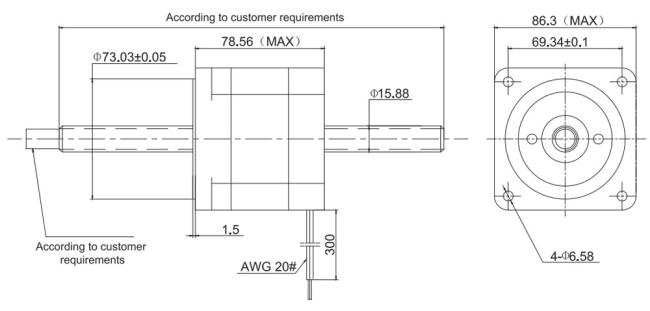

No Captive Type Mechanical Drawings as bellow,

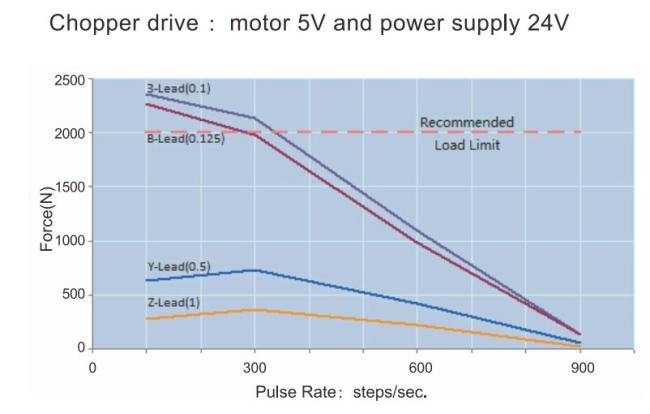

5. Force and Pulse Rate Curves
6. Wirings
