304L 304 Stainless Steel Pipe ERW Welded Seamless Grade 1.4301 1.4306

Price Negotiable
Price: 11000-12000USD/Ton
MOQ: 500 kgs
Delivery Time: 5 - 12 days based on the quantity
Brand: DELTA
Product Description

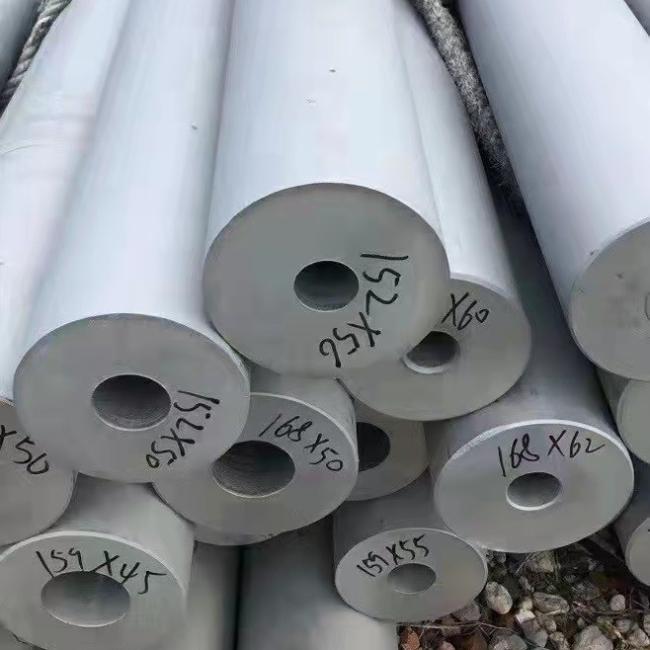

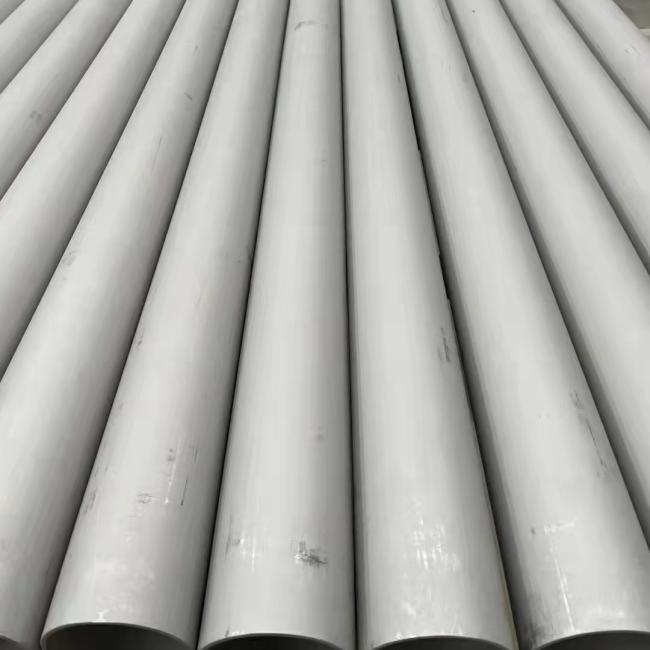

304/304L Stainless Steel Pipe / ERW Welded Pipe / Seamless Steel Pipe Grade 1.4301 1.4306


304L stainless steel pipe is a hollow long round steel, mainly is widely used in petroleum, chemical, medical, food, light industry, machinery, instrument and other industrial pipeline and mechanical structure parts, etc.
In addition, in bending and torsion strength, the weight is lighter, so it is also widely used to make mechanical parts and engineering structures. It is also used to produce all kinds of conventional weapons, guns and shells.

304L stainless steel pipe with 18Cr-8Ni- low carbon is a low-C 304 steel. Under normal conditions, its corrosion resistance is similar to that of 304 steel, but after welding or stress relief, its resistance to intergranular corrosion is excellent; In the case of heat treatment, it can also maintain good corrosion resistance, and the use temperature is -196℃~800℃.
It is applied to outdoor machines in the chemical, coal, and petroleum industries that require high grain boundary corrosion resistance, heat-resistant parts for building materials, and parts with difficult heat treatment.

304L Stainless Steel Pipe is a variant of 304 stainless steel pipe with lower carbon content and is used where welding is required. The lower carbon content minimizes the precipitation of carbides in the heat-affected zone near the weld, and the precipitation of carbides may cause stainless steel to produce intergranular corrosion (welding erosion) in certain environments.
The forging performance of 304L stainless steel is poor and it is difficult to deform. Due to the work hardening phenomenon, the deformation of the core rod cannot be too large and the heat loss is large. Therefore, it must be molded under multiple fires. If the high temperature and heat preservation stage is not handled well, it will cause roughness. crystal.


304/304L Stainless Steel Pipe/Tube Specification

Type:tube
Outer Diameter6-2500mm, (3/8"-100")
Thickness0.3-150mm,(SCH10-XXS)
Length:2000mm, 2500mm, 3000mm, 5800mm, 6000mm,12000mm, etc
Standard:ASTM,AISI,JIS,,GB, DIN,,EN
Surface:pickling , polishing
Application:It is widely used in high-temperature and electric industry, medical devices, construction, chemistry, food industry, agriculture, and ship components.
Certification: ISO, SGS,BV
Technique:Cold Drawn Seamless Tube / Welded pipe
Edge:Mill Edge Slit Edge
Quality:SGS Inspection
Grade (ASTM UNS)201,304,304L,321,316,316L,317L,347H,309S,310S,904L,
S32205,2507,254SMOS,32760,253MA,N08926
Grade (EN)1.4301,1.4307,1.4541,1.4401,1.4404,1.4571,1.4438,1.4539,1.4547,
1.4529,1.4562,1.4410,1.4878,1.4845,1.4828,1.4876,2.4858,2.4819
Supply Ability:5000 Ton/Tons per Month

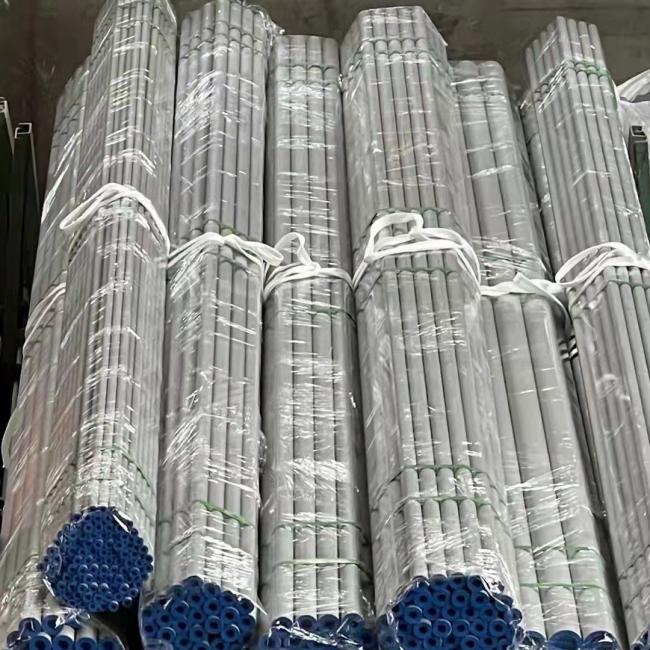

Packaging & Deliveryin bundle,plastic bags,thin film,wooden pallet,standard seaworthy export packing or as customer demands
20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) 24-26CBM
40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) 54CBM
40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High) 68CBM



Stock range and specification

WELDED PRODUCT

SEAMLESS PRODUCT

MPS: 1/8" through 24"
NPS: 1/8" through 12"
Schedules: 5, 10, 10S, 20, 30, 40, 40S, 80, 80S
Schedules: 5, 10, 40, 80, 160, XXH
Specifications: ASTM A312, ASME SA312Specifications: ASTM A312,ASME SA312

Corrosion tested to MIL-P-24691/3 or A262 Practice E

Typical Chemical Composition % (max values, unless noted)
Weight %CMnPSSiCrNi
304.082.00.045.0301.0018.0-20.08.0-11.0
304L.0352.00.045.0301.0018.0-20.08.0-13.0
Typical Mechanical Properties
GradeTensile
 Ultimate/MinYield/MinElongation/Min
 KSIMPAKSIMPA%
304755153020535
304L704852517035
