UNS S31703 1.4438 317L SS Coil ASTM A240 ASTM EN GB JIS
UNS S31703 /1.4438 / 317L Stainless Steel Coil Roll ASTM A240 Stainless Steel Coils

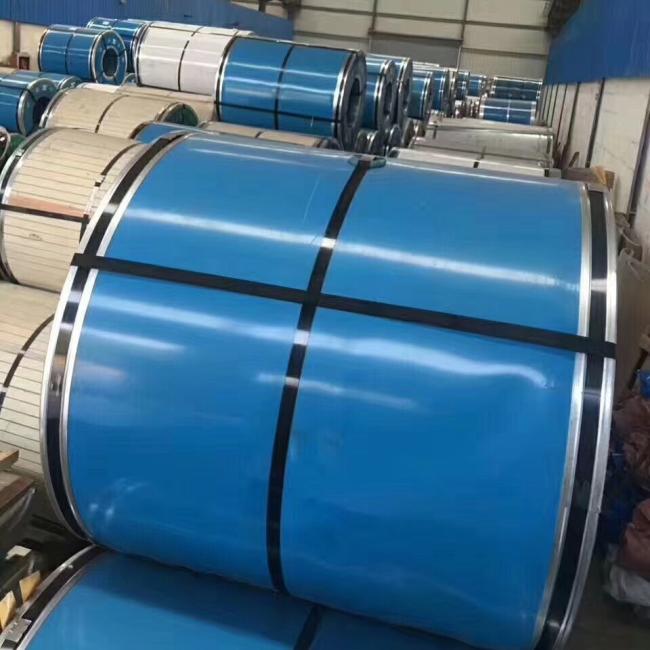

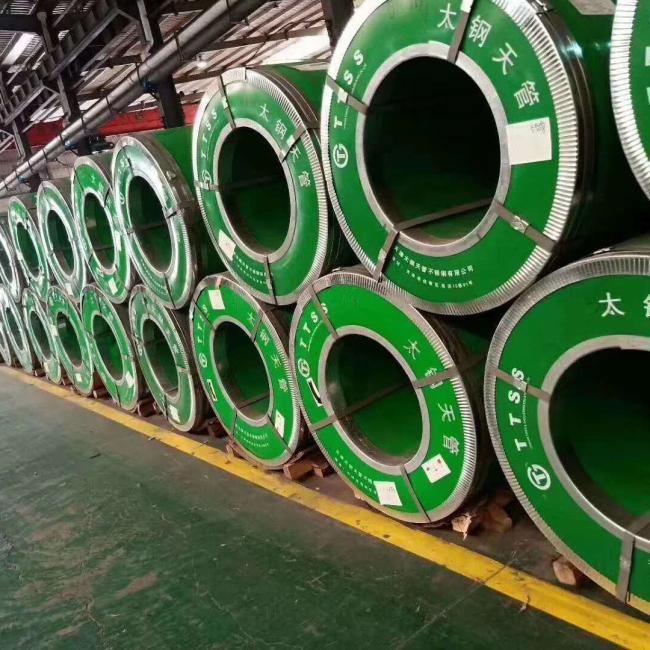

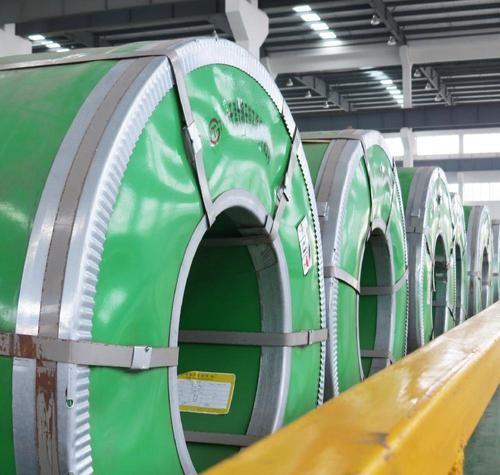

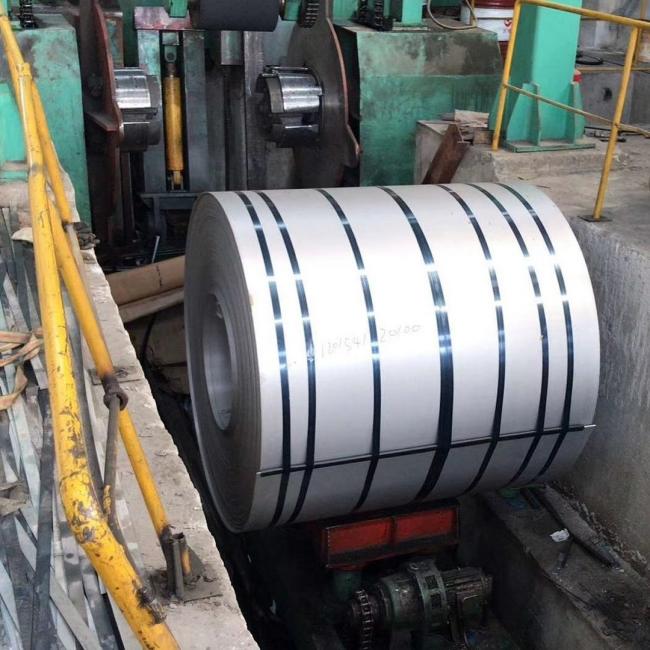

317L Stainless Steel Coil
317L stainless steel coil is one of the most popular stainless steel coils in the market. It is a high strength low-alloy steel, which has good corrosion resistance. The main feature of this metal is its high resistance to corrosion, which makes it ideal for use in chemical plants and marine applications.
In addition, compared with 316L stainless steel coil, 317L stainless steel coil has higher ductility, stress corrosion resistance, compressive strength and high temperature resistance.
It is low carbon grade or L grade, this grade has anti-sensitization performance during welding and heat treatment.
317L Stainless Steel Coil Specifications
| Product Name | 317L stainless steel coil |
| Grades | 317L, 1.4438, UNS S31703 |
| Hardness | ≤95HRB |
| Thickness | 0.02mm-6.0mm |
| Width | 1.0mm-1500mm |
| Edge | Slit/Mill |
| Quantity Tolerance | ±10% |
| Paper Core Internal Diameter | Ø500mm paper core, special internal diameter core and without paper core on customer request |
| Surface Finish | NO.1/2B/2D/BA/HL/Brushed/6K/8K Mirror,etc |
| Packaging | Wooden Pallet/Wooden Case |
| Payment Terms | 30% TT deposit and 70% balance before shipment, 100% LC at sight |
| Delivery Time | 5-7 working days |
| MOQ | 200Kgs |
| Shipping Port | Shanghai/Ningbo port |
| Sample | The sample of 317L stainless steel coil is available |
317L Stainless Steel Coil Chemical Compositions
The chemical components of grade 317L stainless steel coil is summarized in the following table:
| Grade | Standard | C | Si | Mn | P | S | Cr | Ni | Mo |
| 317L | ASTM A240 | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 18.00-20.00 | 11.00-15.00 | 3.0-4.0 |
317L Stainless Steel Coil Mechanical Properties
| Grade | EN Grade | Yield Strength Rp0.2(N/mm²) | Tensile Strength Rm(N/mm²) | Hardness | Vickers Hardness(HV) | Elongation A50% |
| 317L | 1.4438 | ≥205 | ≥515 | Annealed | ≥150 | ≥40 |
What are the applications that 317L stainless steel coils can be used?
317L stainless steel coils can be used in a wide range of applications, including:
- Condensers in fossil
- Pulp and paper manufacturing
- Nuclear fueled power generation stations
- Chemical and petrochemical process equipment
Features of 317L stainless steel coils
317L stainless steel coil has excellent welding characteristics including the ability to be welded using conventional methods or TIG welding.
317L stainless steel coil also has good forming properties making it easy to form into complex shapes using conventional forming techniques.
The mechanical properties at room temperature are very similar to those of 316L stainless steel coil.
The yield strength of both materials is about 25% higher than 304 stainless steel coil, but the lower yield strength of 316L stainless steel coil limits their use to applications where higher working loads are not expected.
What is the standard sea packaging of 317L stainless steel coil?
- Standard export sea packaging:
Waterproof Paper Winding+PVC Film+Strap Banding+Wooden Pallet or Wooden Case; - Customized packaging as your request (Logo or other contents accepted to be printed on the packaging);
- Other special packaging will be designed as customer’s request;
Eye to wall and eye to sky are both available; - By International Express: DHL/UPS/FEDEX/EMS and our own express line;
- By air or By sea;
- Shipping port: Shanghai, Ningbo or as your request.
