ASTM A240 AISI347H Stainless Steel Plate 347 / 347H Thickness 0.6 - 16.0mm
Price:
2100-5300 USD/Ton
MOQ:
500 kgs
Delivery Time:
5 - 12 days based on the quantity
Brand:
TISCO BAOSTEEL
Product Description

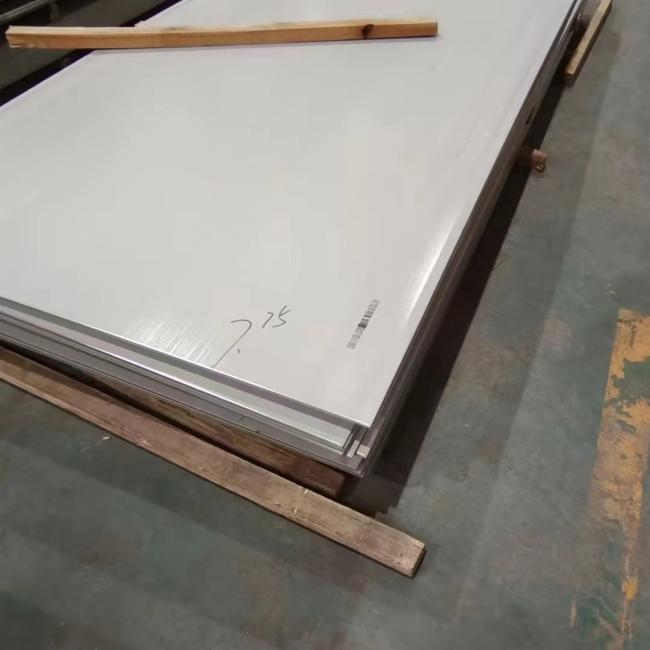

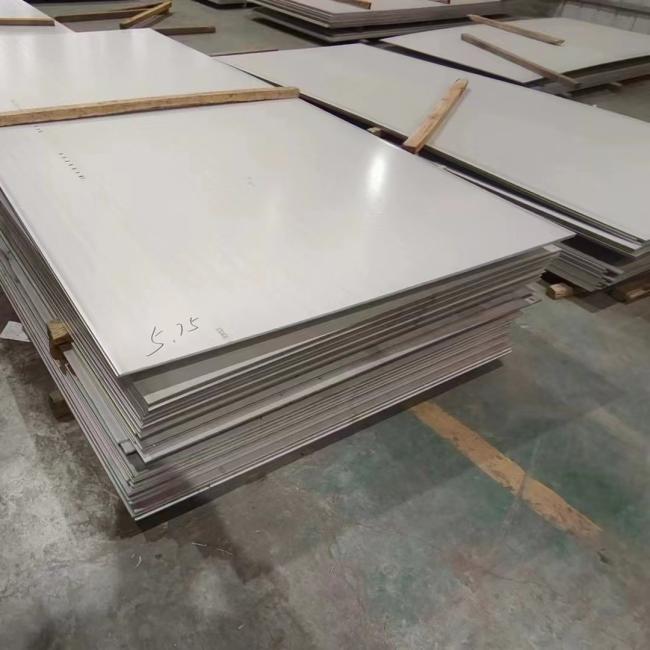

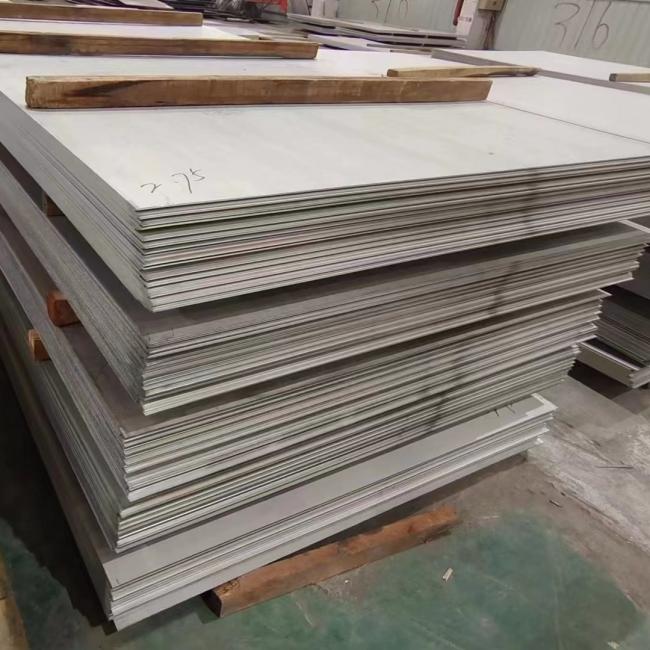

ASTM A240 AISI347H Stainless Steel Plate / SS Plate 347/347H Thickness 0.6 - 16.0mm
347 Stainless Steel Sheet Specification Chart
| Description | ASTM A240 / ASME SA240 Stainless Steel Plates, ASTM A240 Hot Rolled Stainless Steel Plates |
| Standard | ASTM, ASME, BS, DIN, EN |
| Material | 310S, 310, 309, 309S, 316, 316L, 316Ti, 317, 317L, 321, 321H, 347, 347H, 304, 304L, |
| 302, 301, 201, 202, 403, 405, 409, 409L, 410, 410S, 420, 430, 631, 904L, Duplex, etc | |
| Specification | Cold rolled: 1219mm * 2438mm (4′ x 8′), 1219mm * 3048mm (4′ x 10′), 1220mm * 2440mm, 1250mm * 2500mm or as your requirement.
Hot rolled: 1500mm * 2000mm, 1000mm * 3000mm, 1500mm * 4000mm, 1500m * 6000mm or as your requiremnt. |
| Technique | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Form | Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Etc. |
| Surface | 2B, 2D, BA, NO. 1, NO. 4, NO.8, 8K, Mirror, Checkered, Embossed, Hair Line, Sand Blast, Brush, Etching |
| Thickness | 0.25-200mm, 0.3mm to 120mm |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, 12000mm |
| Package | Standard Export Seaworthy Package, or as required. |
| Value Added Services | Cladding,Heat Treatment,Annealed, Pickling, Polish,Rolling,Cutting,Bending,Forging,Minor Fabrication Etc. |
| MTC | Mill Test Certificate, Available as per EN 10204 3.1 |
Aisi 347 Plate Price List
| Type | Description | USA FOB Price | Malaysia FOB Price | Europe FOB Price | Singapore FOB Price | Saudi Arabia (KSA) FOB Price | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Unit Per mtr | Unit Per mtr | Unit Per mtr | Unit Per mtr | Unit Per mtr | |||||||
| 347 stainless steel sheet | Size : 12swg x 1000 x 2000 | US $ | 5.21 | Malaysia Ringgit | 21.20 | Euro | 4.38 | Singapore Dollar | 6.98 | Saudi Riyal | 19.54 |
Astm A240 Gr 347 Strips Gauge Chart
| NOMINAL DECIMAL | STANDARD VARIANCE FROM | |
|---|---|---|
| METAL GAUGE | (APPROXIMATE INCHES) | NOMINAL DECIMAL (+/- INCHES) |
| 7 | 0.1793 | 0.0080 |
| 8 | 0.1644 | 0.0080 |
| 9 | 0.1495 | 0.0080 |
| 10 | 0.1345 | 0.0070 |
| 11 | 0.1196 | 0.0050 |
| 12 | 0.1046 | 0.0050 |
| 13 | 0.0897 | 0.0050 |
| 14 | 0.0747 | 0.0040 |
| 15 | 0.0673 | 0.0040 |
| 16 | 0.0598 | 0.0030 |
| 17 | 0.0538 | 0.0030 |
| 18 | 0.0478 | 0.0030 |
| 19 | 0.0418 | 0.0030 |
| 20 | 0.0359 | 0.0030 |
| 21 | 0.0329 | 0.0025 |
| 22 | 0.0299 | 0.0020 |
| 23 | 0.0269 | 0.0020 |
| 24 | 0.0239 | 0.0020 |
| 25 | 0.0209 | 0.0015 |
| 26 | 0.0179 | 0.0015 |
| 28 | 0.0149 | 0.0010 |
Sa240 Type 347 Perforated Sheet Tolerance
| Gauge | LB/Sq. Ft. | LB/Sq In. | Gauge Tolerance | ||
|---|---|---|---|---|---|
| 72″ Wide | 96″ Wide | ||||
| 3/16 | 0.1875 | 8.579 | 0.05958 | +.045″ -.010″ | +.050″ -.010″ |
| 7/32 | 0.2187 | 9.870 | 0.06854 | ||
| 1/4 | 0.2500 | 11.162 | 0.07750 | ||
| 5/16 | 0.3125 | 13.746 | 0.09546 | ||
| 3/8 | 0.3750 | 16.496 | 0.11456 | +.055″ -.010″ | +.060″ -.010″ |
| 7/16 | 0.4375 | 19.080 | 0.13250 | ||
| 1/2 | 0.5000 | 21.633 | 0.15044 | ||
| 9/16 | 0.5625 | 24.247 | 0.16838 | ||
| 5/8 | 0.6250 | 26.831 | 0.18633 | ||
| 11/16 | 0.6875 | 29.415 | 0.20427 | ||
| 3/4 | 0.7500 | 32.123 | 0.22308 | +.060″ -.010″ | +.065″ -.010″ |
| 13/16 | 0.8125 | 34.707 | 0.24102 | ||
| 7/8 | 0.8750 | 37.291 | 0.25897 | ||
| 15/16 | 0.9375 | 39.875 | 0.27691 | ||
| 1 | 1.0000 | 42.665 | 0.29628 | +.070″ -.010″ | +.075 -.010″ |
| 1-1/8 | 1.1250 | 47.833 | 0.33217 | ||
| 1-1/4 | 1.2500 | 53.001 | 0.36806 | ||
| 1-3/8 | 1.3750 | 58.169 | 0.40395 | ||
| 1-1/2 | 1.5000 | 63.337 | 0.43984 | ||
| 1-3/4 | 1.7500 | 73.672 | 0.51161 | ||
| 2 | 2.0000 | 84.008 | 0.58339 | +.125″ -.010″ | +.150″ -.010″ |
| 2-1/8 | 2.1250 | 89.610 | 0.62229 | ||
| 2-1/4 | 2.2500 | 94.777 | 0.65817 | ||
| 2-1/2 | 2.5000 | 105.113 | 0.72995 | ||
| 2-3/4 | 2.7500 | 115.449 | 0.80173 | ||
| 3 | 3.0000 | 126.301 | 0.87709 | +.150″ -.010″ | +.160″ -.010″ |
| 3-1/2 | 3.5000 | 146.972 | 1.02064 | ||
| 4 | 4.0000 | 168.264 | 1.16850 | +.180″ -.010″ | +.200″ -.010 |
Chemical Composition of 347h Stainless Steel Sheets
| Type | Grade | ASTM A240 Chemical Composition | |||||||||
| ASTM(A240M) | Others(JIS) | C | Si | Mn | P | S | Ni | Cr | Mo | Others | |
| Austenitic Steels | |||||||||||
| 347 | SUS347 | ≤0.08 | ≤0.75 | ≤2.00 | ≤0.045 | ≤0.030 | 9.0/13.0 | 17.0/19.0 | ― | Nb:10ʷC/1.00 | |
Sa240 347h Foil Mechanical Properties Table
| Type | Mechanical Properties for Stainless Steel Plates, Stainless Steel Sheet | |||||||
| ASTM(A240M) | Others(JIS) | Tensile Properties | Hardness | |||||
| Yield Strength (Mpa) | Tensile Strength (Mpa) | Elongation (%) | HBW | HRBW | ||||
| Austenitic Steels | ||||||||
| 347 | SUS347 | ≥205 | ≥515 | ≥40 | ≤201 | ≤92 | ||
Astm A240 Gr 347 Strips Physical Properties
| Density ( g.cm-3 ) | 7.93 |
| Melting point (°C ) | 1400-1425 |
