H1150 Heat Treatment Stainless Steel Rod 630 Bars 17-4PH 4 - 250mm Polishing Bright
H1150 Heat Treatment 17-4PH Stainless Steel Rod 630 Stainless Bars Diameter 4-250mm Hot Rolled
| Products | Stainless Steel Bar |
| Grade | 17-4PH / 630 / UNS S17400 |
| Diameter | 4 - 350mm |
| Length | 6m or custom cutting any length as request |
| Finishing | Bright Bar / Black Surface |
| Heat Treatment | Solid Solution , ageing |
| Surface Process | Polishing , Peeling |
| Other Grade |
201 303 304 304L 309S 310S 316L 316Ti 317L 321 347 410 420 430 431 2205 2507 904L 254SMO 416 440A/B/C.etc |
| MOQ | 500 Kgs |
| Loading Port | Shanghai Port |
| Processing | Cutting |
| Packing | Wooden box or cutting as request |
MATERIAL DESCRIPTION FOR ALLOY 1.4542 / 17-4 PH
17-4 PH is a martensitic precipitation hardening stainless steel with additions of copper (Cu), niobium (Nb) and tantalum (Ta). The grade combines high strength and hardness values with moderate corrosion resistance. Different heat treatment temperatures can optimize mechanical properties, e.g. yield strength at 1100 – 1300MPa. Our stock material is double aged at 1150F – defined as DH1150. Age hardening is can also be performed at 480°C to 620°C in a one-step process, where the lowest temperature gives the highest strength. To achieve good toughness at low temperatures, precipitation-hardening temperatures below 550°C are not recommended.
Applications of 17-4PH Stainless Steel Bar
17-4 PH provides an outstanding combination of high strength, good mechanical properties, good corrosion resistance, outstanding wear resistance and good toughness at temperatures up to 310°C. 17-4 PH is used in chemical, petrochemical, paper and general metalworking industries. Only approved by NACE for restricted components and environments.
Heat Treatment
Solution annealing at 1000 to 1050°C, hardened at 480°C (H900) to 621°C (H1150). DH1150: Double aged at 1150F – 620°C.
Weldability
Good, Pre-heating and post-heating practices used for standard hardenable stainless grades are not required.
Chemical composition
| Weight % | C | Si | Mn | S | P | Cr | Ni | Cu | Nb+Ta |
| Min. | 15,00 | 3,00 | 3,00 | 0,15 | |||||
| Max. | 0,070 | 1,00 | 1,00 | 0,030 | 0,040 | 17,50 | 5,00 | 5,00 | 0,45 |
Product Standards: EN 10088-3, ASTM A564, ASTM A705
Approvals: NACE MR0175/ ISO 15156-3 with max 33HRc
Mechanical properties
| Condition | Yield strength Rp0.2, MPa |
Tensile strength Rm, MPa |
Elongation [%] |
Hardness [HB] |
Impact, Charpy-V, -32ºC [J] |
Pre |
| H 900 | ≥ 1170 | ≥ 1310 | ≥ 8 | ≤ 440 | ≥ 17 | |
| H 1075 | ≥ 860 | ≥ 1000 | ≥ 10 | ≤ 375 | ≥ 27 | ≥ 17 |
| H 1150 | ≥ 725 | ≥ 930 | ≥ 16 | ≤ 352 | ≥ 27 | ≥ 17 |
| DH 1150 | ≥ 725 | ≥ 860 | ≥ 16 | ≤ 311 | ≥ 27 | ≥ 17 |

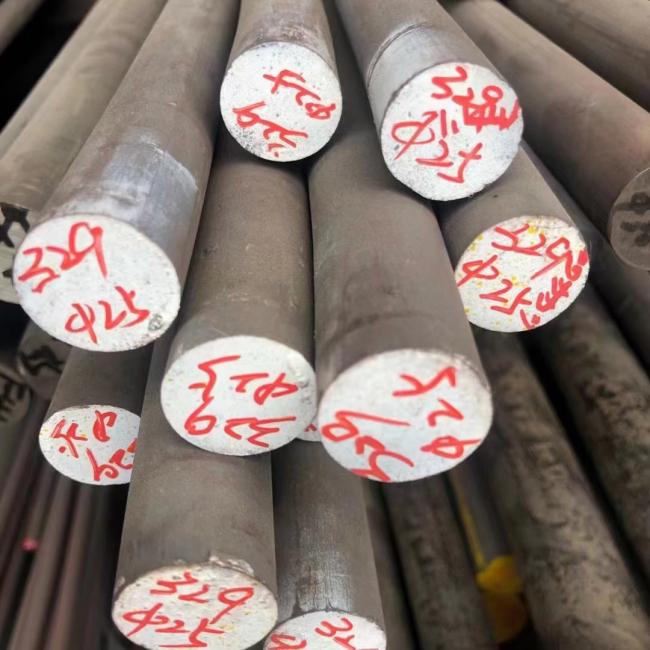

Round bar stock
| Standard Diameter we have stock | |||
| 4mm | 5mm | 6mm | 8mm |
| 10mm | 12mm | 14mm | 15mm |
| 16mm | 18mm | 20mm | 22mm |
| 24mm | 25mm | 28mm | 30mm |
| 32mm | 35mm | 38mm | 40mm |
| 42mm | 45mm | 48mm | 50mm |
| 55mm | 60mm | 65mm | 70mm |
| 75mm | 80mm | 85mm | 90mm |
| 95mm | 100mm | 105mm | 110mm |
| 115mm | 120mm | 130mm | 140mm |
| 150mm | 160mm | 170mm | 180mm |
| 190mm | 200mm | 210mm | 220mm |
| 230mm | 240mm | 250mm | 300mm |
| 320mm | 330mm | 350mm | |
