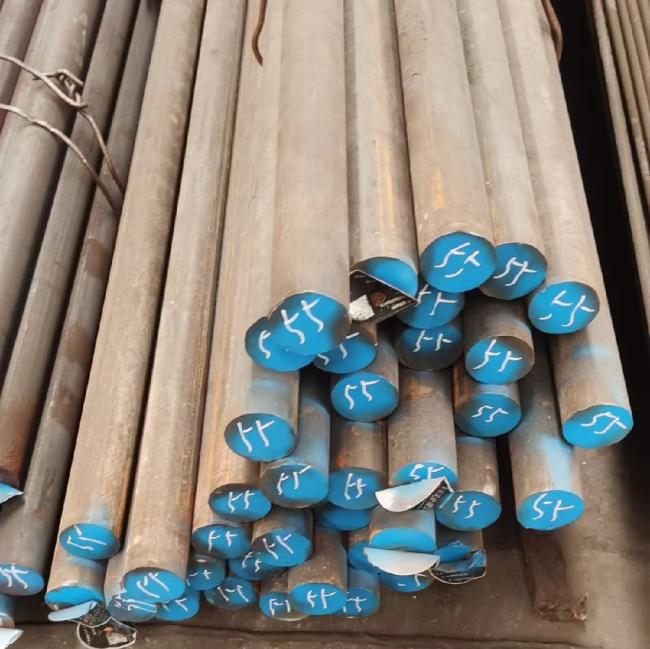

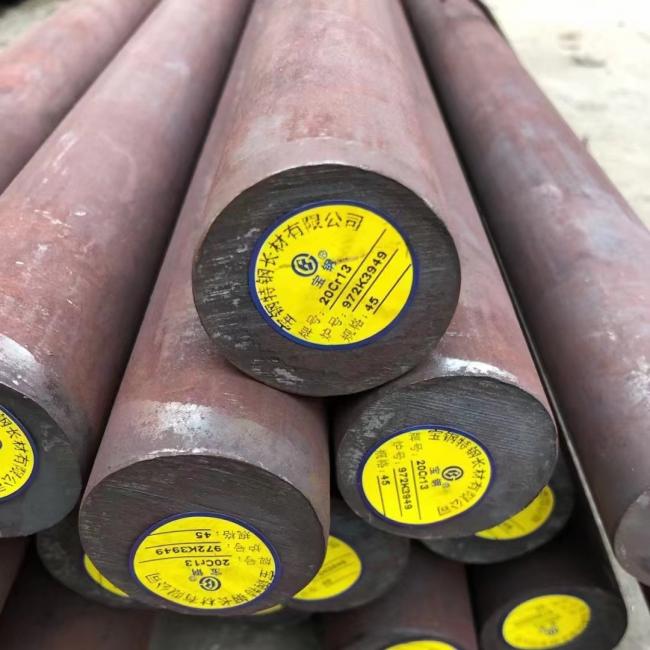

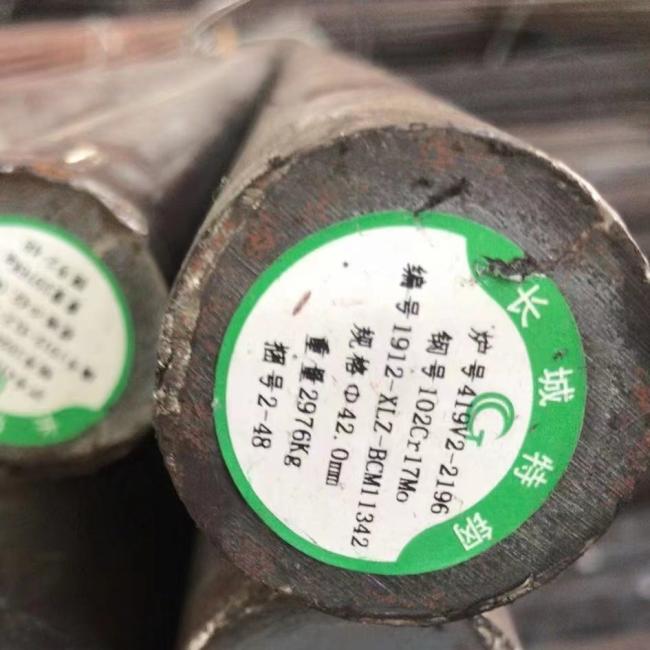

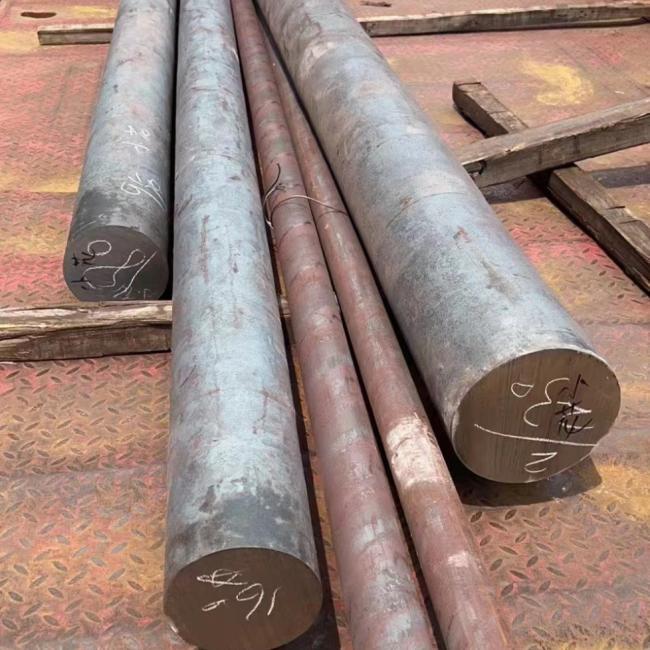

Forged Stainless Steel Bar Grade 416 UNS S41600 SS Rod Diameter 4 - 160mm
Forged Stainless Steel Bar Grade 416 Stainless Steel UNS S41600 SS Rod Diameter 4 - 160mm
| Products | Stainless Steel Bar |
| Grade | 416 |
| Diameter | 4 - 350mm |
| Length | 6m or custom cutting any length as request |
| Finishing | Bright Bar / Black Surface |
| Heat Treatment | Solid Solution , ageing |
| Surface Process | Polishing , Peeling |
| Other Grade |
201 303 304 304L 309S 310S 316L 316Ti 317L 321 347 410 420 430 431 2205 2507 904L 254SMO 416 440A/B/C.etc |
| MOQ | 500 Kgs |
| Loading Port | Shanghai Port |
| Processing | Cutting |
| Packing | Wooden box or cutting as request |
Type 416 stainless is a martensitic, free machining stainless steel. It is treated with hot working, which gives it elevated strength and hardness. I416 stainless has the highest machinability of any stainless steel. One of the first free-machining stainless steels ever developed, 416 offers considerable flexibility in machining applications. The addition of manganese-rich sulfides evenly distributed throughout the steel provides a natural lubricant, preventing build-up on cutting tools during the machining process. The additives also act as chip breakers, substantially increasing machining rates to 85%. Free machining steel like 416 allows for faster speeds and feeds and an overall increase in cutting tool life.
Considered the stainless steel king of machinability, 416 stainless steel achieves such outstanding levels because of the extra sulfur found in its properties. The additional sulfur forms manganese sulfide inclusions which have the effect of not only lowering the corrosion resistance, but also 416’s formability and weldability, compared to its non-free machining counterpart 410 stainless steel.
Chemical Formula
Fe, <0.15% C, 12.0-14.0% Cr, <1.25% Mn, <1.0% Si, <0.06% P, >0.15% S
Inventory
416 Stainless Steel Round Bar, 416 Stainless Steel Flat Bar, 416 Stainless Steel Square Bar
Common Trade Names
416 Stainless, 416 Stainless Steel
Features
- Because of its poor welding qualities, individuals would be directed to use 410 grade as a placement, if welding work was needed.
- Found relatively corrosion resistant in dry atmospheres, fresh water and moderate to mild alkalies/acids.
Applications
Similar to 410 grade, 416 stainless steel is often found used in common bolts, nuts, and gears, but it also has become commonplace in valve parts, pump and motor shafts, and washing machine components.
Size of our 416 stainless steel bar in stock
| Standard Size in stock of our 416 Stainless Steel Bar | |||
| 4mm | 5mm | 6mm | 8mm |
| 10mm | 12mm | 14mm | 15mm |
| 16mm | 18mm | 19mm | 20mm |
| 22mm | 24mm | 25mm | 28mm |
| 30mm | 32mm | 35mm | 38mm |
| 40mm | 45mm | 48mm | 50mm |
| 55mm | 60mm | 65mm | 70mm |
| 75mm | 80mm | 85mm | 90mm |
| 95mm | 100mm | 105mm | 110mm |
| 115mm | 120mm | 130mm | 140mm |
| 150mm | 160mm | 180mm | 200-300mm |
