SCH5 SCH10 304 Stainless Steel Pipe ERW Welded Stainless Pipe OD10 - 406mm for Structure

Price Negotiable

Price: 2400 - 3500 USD/Ton

MOQ: 500 kgs

Delivery Time: 5 - 12 days based on the quantity

Brand: DELTA

Product Description

SCH5 SCH10 304 Stainless Steel Pipe ERW Welded Stainless Pipe OD10 - 406mm for Structure

Stainless Steel Welded Pipe

Product:	Stainless steel welded pipe, stainless steel erw pipe, stainless steel efw pipe
Application:	In Petroleum, Aerospace, Chemical, Power, Boilers, Military Industry
Size:	OD: 2" - 48"
	WT: 5S, 10S, STD, XH, 40, 80, 100, 120, 160, XXH
	LENGTH: Single Random, Double Random, Cut Length max to 23m
Standard	ASTM A240, ASTM A269, ASTM A312, ASTM A358, ASTM A778
Grades	201, 304/304L, 316/316L, 317/317L, 347/347H, 321/321H, 904L
Surface	Annealed, Pickling, Polished

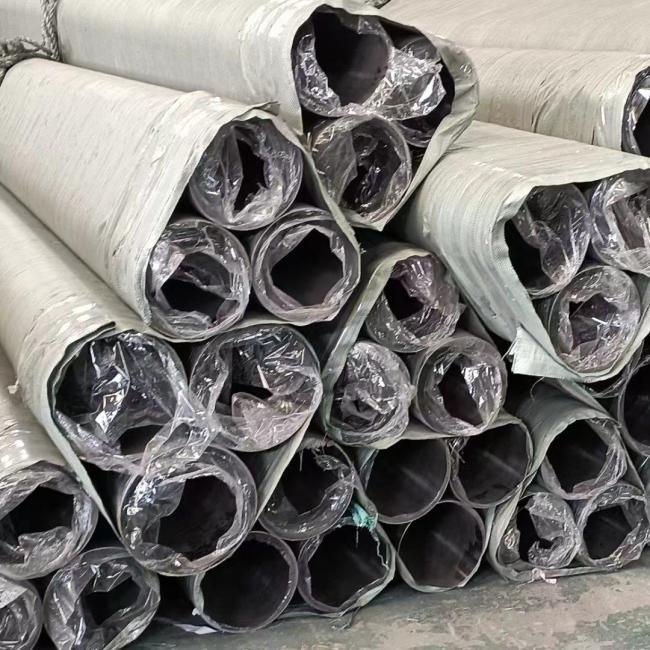

Packing	Waterproof Paper Wrapped, Packed in Wooden Cabins

stainless steel welded pipe is corrosion resistant and this type of material is extremely durable in harsh conditions. This type of pipe is popular in industrial applications in the following industries:

Chemical, Food and beverage,Marine,Mining,Oil and gas,Pharmaceutical,Petrochemical,Power generation,Renewable energy.

Product	Stainless Steel Welded Pipe
Size	Outside Diameter: 2" - 48"
Size	Wall Thickness: 5S, 10S, STD, XH, 40, 80, 100, 120, 160, XXH
Standard	ASTMA312/A1016/A269/A268/A789/A632/A250/A270/A358/A688/A814/A409
Standard	EN10216/EN10297/JIS G3448/G3459/G3463
Grades	200 series:201,202.204Cu.
	300series:301,302,304,304Cu,303,303Se,304L,305,307,308,308L,309,309S,310, 310S,316,316L,321.
	400 series:410,420,430,420J2,439,409,430S,444,431,441,446,440A,440B,440C.
	Duplex and Others:2205,904L,S31803,330,660,630,17-4PH,631,17-7PH,2507,F51,S31254 etc.
Application	In Chemical Industry, Coal, Oil Field Open Machine, Building Materials Heat-resistant Parts

Specification

Outside Diameter NPS	Outside Diameter (mm)	Nominal Wall Thickness (mm)
		ASME B36.19M				ASME B36.10M
		SCH 5S	SCH 10S	SCH 40S	SCH 80S	SCH 5	SCH 10	SCH 20	STD	XS
1/4	13.72	—	1.65	2.24	3.02		1.65	—	2.24	3.02
3/8	17.15	—	1.65	2.31	3.2		1.65	—	2.31	3.2
1/2	21.34	1.65	2.11	2.77	3.73	1.65	2.11	—	2.77	3.73
3/4	26.67	1.65	2.11	2.87	3.91	1.65	2.11	—	2.87	3.91
1	33.4	1.65	2.77	3.38	4.55	1.65	2.77	—	3.38	4.55
1 1/4	42.16	1.65	2.77	3.56	4.85	1.65	2.77	—	3.56	4.85
1 1/2	48.26	1.65	2.77	3.68	5.08	1.65	2.77	—	3.68	5.08
2	60.33	1.65	2.77	3.91	5.54	1.65	2.77	—	3.91	5.54
2 1/2	73.03	2.11	3.05	5.16	7.01	2.11	3.05	—	5.16	7.01
3	88.9	2.11	3.05	5.49	7.62	2.11	3.05	—	5.49	7.62
3 1/2	101.6	2.11	3.05	5.74	8.08	2.11	3.05	—	5.74	8.08
4	114.3	2.11	3.05	6.02	8.56	2.11	3.05	—	6.02	8.56
5	141.3	2.77	3.4	6.55	9.53	2.77	3.4	—	6.55	9.53
6	168.28	2.77	3.4	7.11	10.97	2.77	3.4	—	7.11	10.97
8	219.08	2.77	3.76	8.18	12.7	2.77	3.76	6.35	8.18	12.7
10	273.05	3.4	4.19	9.27	12.7	3.4	4.19	6.35	9.27	12.7
12	323.85	3.96	4.57	9.53	12.7	3.96	4.57	6.35	9.53	12.7
14	355.6	3.96	4.78	9.53	12.7	3.96	6.35	7.92	9.53	12.7
16	406.4	4.19	4.78	9.53	12.7	4.19	6.35	7.92	9.53	12.7
18	457.2	4.19	4.78	9.53	12.7	4.19	6.35	7.92	9.53	12.7
20	508	4.78	5.54	9.53	12.7	4.78	6.35	9.53	9.53	12.7
22	558.8	4.78	5.54			4.78	6.35	9.53	9.53	12.7
24	609.6	5.54	6.35	9.53	12.7	5.54	6.35	9.53	9.53	12.7
26	660.4	—	—	—	—	—	7.92	12.7	9.53	12.7
28	711.2	—	—	—	—	—	7.92	12.7	9.53	12.7
30	762	6.35	7.92	—	6.35	—	7.92	12.7	9.53	12.7
32	812.8	Thinkness: 8.63-30mm

Welded Stainless Steel Pipe Tolerances

Welded Stainless Steel Pipe Tolerances
NPS Designator	Permissible Variations in Outside Diameter
NPS Designator	Over In.	Under In.
1/8 to 1-1/2, inch	1/64 (0.015)	1/32 (0.031)
Over 1-1/2 to 4, inch	1/32 (0.031)	1/32 (0.031)
Over 4 to 8, inch	1/16 (0.062)	1/32 (0.031)
Over 8 to 18, inch	3/23 (0.093)	1/32 (0.031)
