ASTM A312 TP304 Stainless Steel Seamless Pipe / AISI304 Stainless Steel Tube SCH40 SCH80
Price:
2400 - 3500 USD/Ton
MOQ:
500 kgs
Delivery Time:
5 - 12 days based on the quantity
Brand:
DELTA
Product Description

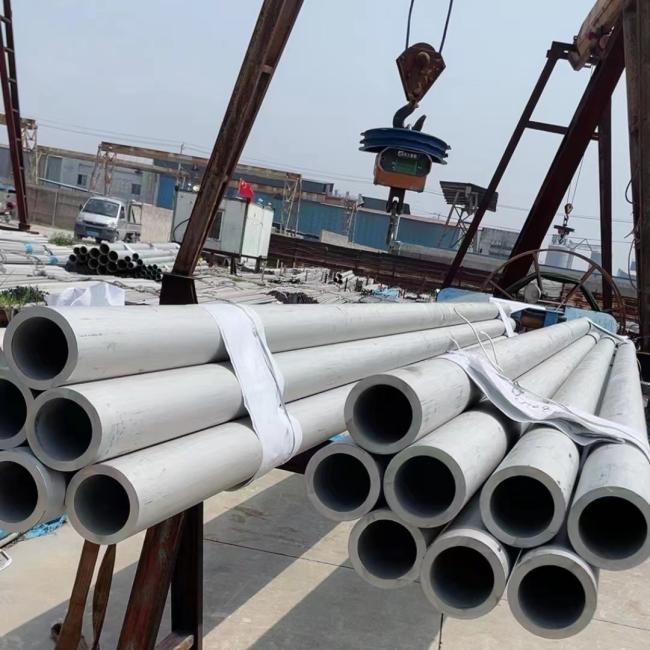

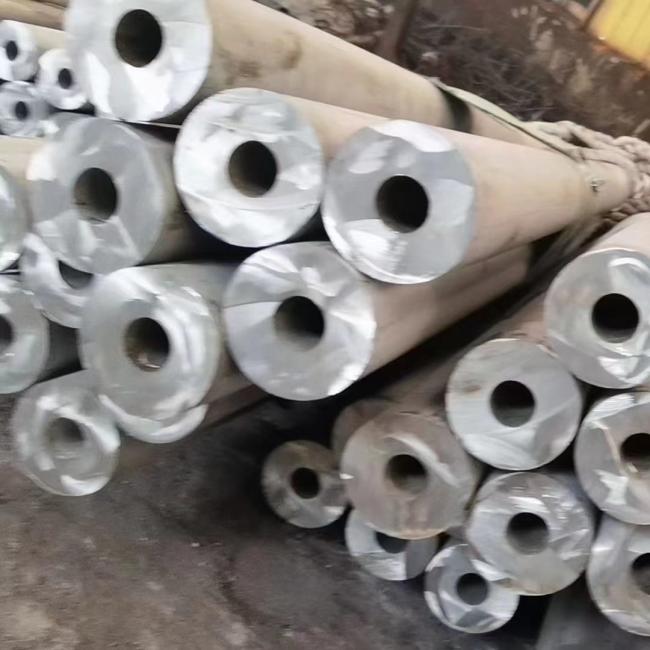

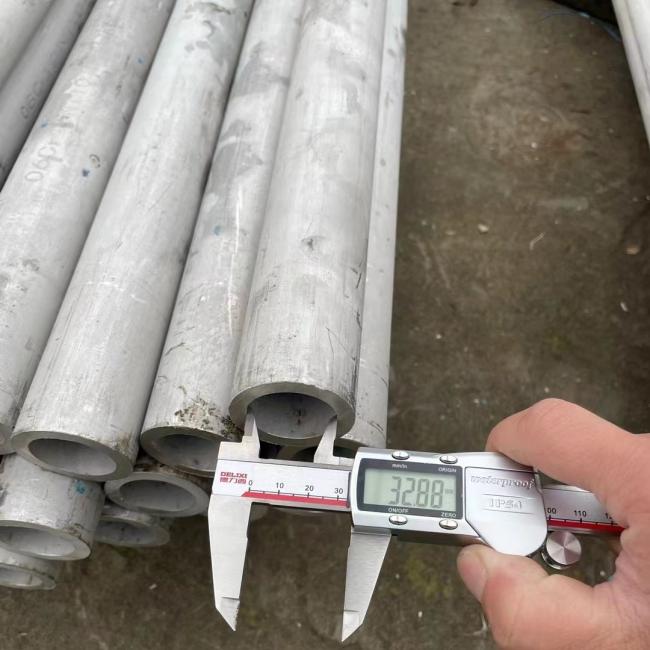

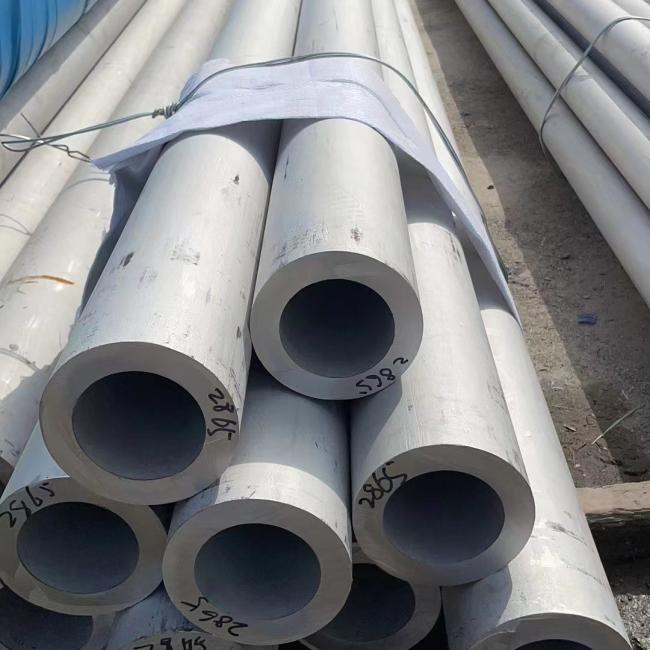

ASTM A312 TP304 Stainless Steel Seamless Pipe / AISI304 Stainless Steel Tube SCH40 SCH80
The Stainless Steel 304 Seamless Pipe nominal bore size ranges from ½ inches to 16 inches, the ERW pipes range from ½ inches to 24 inches and the EFW pipes range from 6 inches to 100 inches. The sizes of all pipes range from 1/8 inches to 30 inches. The Stainless Steel 304 Welded Pipe is welded from a narrow piece of sheet or a strip. The seamless, welded or LSAW pipes vary in form as round, square, rectangular and hydraulic types.
The ASTM A312 TP304 Pipe is used for high pressure and high temperature applications because of the high operating temperature of 870 degrees Celsius and the strength. The minimum yield strength of the SS UNS S30400 ERW Pipe is 205MPa and the minimum tensile strength is 515MPa. The applications include commercial, industrial, domestic and general corrosive services. The ASME SA312 Grade 304 Welded Pipe is one of the most cost effective stainless steel pipes in the market. These are also the most used of stainless steel pipes in the world.
ASTM A312 TP304 Seamless Pipe Material Specification
| Specifications | ASTM A 312 ASME SA 312 / ASTM A 358 ASME SA 358 |
| Dimensions | ASTM, ASME and API |
| SS 304 Pipes | 1/2″ NB – 16″ NB |
| ERW 304 Pipes | 1/2″ NB – 24″ NB |
| EFW 304 Pipes | 6″ NB – 100″ NB |
| Size | 1/8″NB TO 30″NB IN |
| Specialized in | Large Diameter Size |
| Schedule | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Type | Seamless / ERW / Welded / Fabricated / LSAW Pipes |
| Form | Round, Square, Rectangular, Hydraulic Etc |
| Length | Single Random, Double Random & Cut Length. |
| End | Plain End, Beveled End, Treaded |
Schedule Chart of SS 304 Welded Pipe
| 1/8" IPS(.405"O. D.) | 3 1/2" IPS( 4.000"O. D.) |
|---|---|
| SCH 40, 80 | SCH 10, 40, 80, 160, XXH |
| 1/4" IPS(.540"O. D.) | 4" IPS(4.500"O. D.) |
| SCH 10, 40, 80 | SCH 10, 40, 80, 160, XXH |
| 3/8" IPS(.675"O. D.) | 5" IPS( 5.563"O. D.) |
| SCH 10, 40, 80 | SCH 10, 40, 80, 160, XXH |
| 1/2" IPS(.840"O. D.) | 6" IPS(6.625"O. D.) |
| SCH 5, 10, 40, 80, 160, XXH | SCH 5, 10, 40, 80, 120, 160, XXH |
| 3/4" IPS(1.050"O. D.) | 8 ” IPS(8.625"O. D.) |
| SCH 10, 40, 80, 160, XXH | SCH 5, 10, 40, 80, 120, 160, XXH |
| 1" IPS:(1.315′O. D.) | 10" IPS(10.750"O. D.) |
| SCH 5, 10, 40, 80, 160, XXH | SCH 10, 20, 40, 80 (.500), TRUE 80(.500) |
| 1-1/4" IPS(1.660"O. D.) | 12" IPS(12.750"O. D.) |
| SCH 10, 40, 80, 160, XXH | SCH 10, 20, 40(.375), TRUE40(.406), SCH80(.500) |
| 1-1/2" IPS(1.900"O. D.) | 14" IPS(14.000"O. D.) |
| SCH 10, 40, 80, 160, XXH | SCH10 (.188), SCH40 (.375) |
| 2" IPS(2.375"O. D.) | 16" IPS(16.000"O. D.) |
| SCH 10, 40, 80, 160, XXH | SCH10(.188), SCH40(.375) |
| 2 1/2" IPS(2.875"O. D.) | 18" IPS (18.000"O. D.) |
| SCH 10, 40, 80, 160, XXH | SCH-40 (.375) |
| 3" IPS( 3.500"O. D.) | |
| SCH 5, 10, 40, 80, 160, XXH |
304 stainless steel Exhaust Pipe Size Chart In Mm
WT= wall thickness, OD= Outside Diameter, ID= Inside Diameter
| ASTM A312 SS 304 Pipe OD mm |
Pipe WT mm |
in. | Sch | Kg/m |
|---|---|---|---|---|
| 13.72 | 1.65 | 1/4 | 10S | 0.50 |
| 13.72 | 2.24 | 1/4 | 40S | 0.64 |
| 13.72 | 3.02 | 1/4 | 80S | 0.81 |
| 17.15 | 1.65 | 3/8 | 10S | 0.64 |
| 17.15 | 2.31 | 3/8 | 40S | 0.86 |
| 17.15 | 3.20 | 3/8 | 80S | 1.12 |
| 21.34 | 2.11 | 1/2 | 10S | 1.02 |
| 21.34 | 2.77 | 1/2 | 40S | 1.29 |
| 21.34 | 3.73 | 1/2 | 80S | 1.65 |
| 26.67 | 2.11 | 3/4 | 10S | 1.30 |
| 26.67 | 2.87 | 3/4 | 40S | 1.71 |
| 26.67 | 3.91 | 3/4 | 80S | 2.23 |
| 33.40 | 2.77 | 1 | 10S | 2.13 |
| 33.40 | 3.38 | 1 | 40S | 2.54 |
| 33.40 | 4.55 | 1 | 80S | 3.29 |
| 33.40 | 6.352) | 1 | 160 | 4.30 |
| 42.16 | 2.77 | 1¼ | 10S | 2.73 |
| 42.16 | 3.56 | 1¼ | 40S | 3.44 |
| 42.16 | 4.85 | 1¼ | 80S | 4.53 |
| 42.16 | 6.352) | 1¼ | 160 | 5.69 |
| 48.26 | 2.77 | 1½ | 10S | 3.16 |
| 48.26 | 3.68 | 1½ | 40S | 4.11 |
| 48.26 | 5.08 | 1½ | 80S | 5.49 |
| 60.33 | 2.77 | 2 | 10S | 3.99 |
| 60.33 | 3.91 | 2 | 40S | 5.52 |
| 60.33 | 5.54 | 2 | 80S | 7.60 |
| 60.33 | 8.742) | 2 | 160 | 11.29 |
| 73.03 | 3.05 | 2½ | 10S | 5.35 |
| 73.03 | 5.16 | 2½ | 40S | 8.77 |
| 73.03 | 7.01 | 2½ | 80S | 11.59 |
| 88.90 | 3.05 | 3 | 10S | 6.56 |
| 88.90 | 5.49 | 3 | 40S | 11.47 |
| 88.90 | 7.62 | 3 | 80S | 15.51 |
| 88.90 | 11.132) | 3 | 160 | 21.67 |
| 101.60 | 3.05 | 3½ | 10S | 7.53 |
| 101.60 | 5.74 | 3½ | 40S | 13.78 |
| 101.60 | 8.08 | 3½ | 80S | 18.92 |
| 114.30 | 3.05 | 4 | 10S | 8.50 |
| 114.30 | 6.02 | 4 | 40S | 16.32 |
| 114.30 | 8.56 | 4 | 80S | 22.67 |
| 114.30 | 13.492) | 4 | 160 | 34.05 |
| 141.30 | 6.55 | 5 | 40S | 22.10 |
| 141.30 | 9.53 | 5 | 80S | 31.44 |
| 141.30 | 15.882) | 5 | 160 | 49.87 |
| 168.28 | 3.4 | 6 | 10S | 14.04 |
| 168.28 | 7.11 | 6 | 40S | 28.69 |
| 168.28 | 10.97 | 6 | 80S | 43.21 |
| 168.28 | 14.27 | 6 | 120 | 54.75 |
| 168.28 | 18.262) | 6 | 160 | 68.59 |
| 219.08 | 8.18 | 8 | 40S | 43.20 |
| 219.08 | 12.7 | 8 | 80S | 65.63 |
| 219.08 | 18.23 | 8 | 120 | 91.30 |
| 219.08 | 23.012) | 8 | 160 | 112.97 |
SS 304 Erw Tube Size Chart
| Wall Thickness | Stainless Steel 304 Tube Sizes ( O.D.) Sizes ( O.D.) |
|---|---|
| .010 | 1/16" , 1/8" , 3/16" |
| .020 | 1/16" , 1/8" , 3/16" , 1/4" , 5/16" , 3/8" |
| .012 | 1/8" |
| .016 | 1/8" , 3/16" |
| .028 | 1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 3/4" , 1" , 1 1/2" , 2" |
| .035 | 1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 7/16" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4" |
| .049 | 3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/8" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4" |
| .065 | 1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 3/4" , 2" , 2 1/2" , 3" |
| .083 | 1/4" , 3/8" , 1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 7/8" , 2" , 2 1/2" ,3" |
| .095 | 1/2" , 5/8" , 1" , 1 1/4" , 1 1/2" , 2" |
| .109 | 1/2" , 3/4" , 1" , 1 1/4" , 1 1/2" , 2" |
| .120 | 1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 2" , 2 1/4" , 2 1/2" , 3" |
| .125 | 3/4" , 1" , 1 1/4" , 1 1/2" , 2" , 3" , 3 1/4" |
| .134 | 1" |
| .250 | 3" |
| .375 | 3 1/2" |
Surface Finish of SS 304 Seamless Pipe
| Surface Finish | Internal Surface(ID) | Exterbal Surface(OD) | |||
| Roughness Average(RA) | Roughness Average(RA) | ||||
| μ inch | μm | μ inch | μm | ||
| AP | Annealed & Pickled | Not defined | Not defined | 40 or Not defined | 1.0 or Not defined |
| BA | Beight Annealed | 40,32,25,20 | 1.0,0.8,0.6,0.5 | 32 | 0.8 |
| MP | Mechanical Polish | 40,32,25,20 | 1.0,0.8,0.6,0.5 | 32 | 0.8 |
| EP | Electro Polish | 15,10,7,5 | 0.38,0.25,0.20;0.13 | 32 | 0.8 |
ASME SA312 SS 304 Round Pipe Chemical Structure
| Element | SS 304 |
| Ni | 8.0 – 11.0 |
| C | 0.08 |
| Mn | 2.0 max |
| P | 0.045 max |
| S | 0.03 max |
| Si | 1.0 max |
| Cr | 18.0 – 20.0 |
Schedule 10 304 Stainless Steel Pipe Properties Table
| Element | SS 304 |
| Density | 8.0 g/cm3 |
| Melting Point | 1400 °C (2550 °F) |
| Tensile Strength | Psi – 75000 , MPa – 515 |
| Yield Strength (0.2%Offset) | Psi – 30000 , MPa – 205 |
| Elongation | 35 % |
| Elongation | 35 % |
SS DIN 1.4301 Hexagonal Pipe Physical Composition
| Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (m/m/0C) | Thermal Conductivity (W/m.K) | Specific Heat 0-1000C (J/kg.K) | Electrical Resistivity (n.m) | |||
| 0-1000C | 0-3150C | 0-5380C | at 1000C | at 5000C | |||||
| 304 | 8000 | 193 | 17.2 | 17.8 | 18.4 | 16.2 | 21.5 | 500 | 720 |
Stainless Steel DIN 1.4307 Clad Pipe Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | JIS | AFNOR | BS | GOST | EN |
| SS 304 | 1.4301 | S30400 | SUS 304 | Z7CN18‐09 | 304S31 | 08Х18Н10 | X5CrNi18-10 |
Schedule 10 SS 304 Pipe Pressure Rating, SS DIN 1.4301 Hexagonal Pipe, SS UNS S30400 Pipes, Stainless Steel DIN 1.4307 Clad Pipe
304 SS Schedule 40 Pipe Standard Weight Chart
| 28 | .028" Thick |
| 035 | .035" Thick |
| 039 | .039" Thick |
| 049 | .049" Thick |
| 065 | .065" Thick |
| 083 | .083" Thick |
| 109 | .109" Thick |
304 SS Schedule 40 Pipe, SS UNS S30400 Square Pipe Thickness 9.0mm, Check ASTM A312 SS F304 Rectangular Pipe on Sale
Pressure Rating Table of SS UNS S30400 Square Pipe
| NPS | Outside Diameter | Wall Thickness | Weight | Weight | |||
| in | mm | in | mm | Sched | kg/Mtr | Lb/ft | |
| 1/2″ | 0.840 | 21 | 0.109 | 2.769 | 40 STD | 1.268 | 0.851 |
| 0.147 | 3.734 | 80 STD | 1.621 | 1.088 | |||
| 3/4″ | 1.050 | 27 | 0.113 | 2.870 | 40 STD | 1.684 | 1.131 |
| 0.154 | 3.912 | 80 STD | 2.195 | 1.474 | |||
| 1″ | 1.315 | 33 | 0.133 | 3.378 | 40 STD | 2.501 | 1.679 |
| 0.179 | 4.547 | 80 STD | 3.325 | 2.172 | |||
| 1 1/4″ | 1.660 | 42 | 0.140 | 3.556 | 40 STD | 3.385 | 2.273 |
| 0.191 | 4.851 | 80 STD | 4.464 | 2.997 | |||
| 1 1/2″ | 1.900 | 48 | 0.145 | 3.683 | 40 STD | 4.048 | 2.718 |
| 0.200 | 5.080 | 80 STD | 5.409 | 3.361 | |||
| 2″ | 2.375 | 60 | 0.154 | 3.912 | 40 STD | 5.441 | 3.653 |
| 0.218 | 5.537 | 80 STD | 7.480 | 5.022 | |||
| 2 1/2″ | 2.875 | 73 | 0.203 | 5.516 | 40 STD | 8.629 | 5.793 |
| 0.276 | 7.010 | 80 STD | 11.411 | 7.661 | |||
| 3″ | 3.500 | 89 | 0.216 | 5.486 | 40 STD | 11.284 | 7.576 |
| 0.300 | 7.620 | 80 STD | 15.272 | 10.253 | |||
| 4″ | 4.500 | 114 | 0.237 | 6.020 | 16.073 | 10.790 | |
| 0.337 | 8.560 | 22.318 | 14.983 | ||||
| 6″ | 6.625 | 168 | 0.188 | 4.775 | 19.252 | 12.924 | |
| 0.203 | 5.516 | 20.739 | 13.923 | ||||
| 0.219 | 5.563 | 22.318 | 14.983 | ||||
| 0.250 | 6.350 | 25.354 | 17.021 | ||||
| 0.280 | 7.112 | 40 STD | 58.263 | 18.974 | |||
| 0.312 | 7.925 | 31.334 | 21.036 | ||||
| 0.375 | 9.525 | 37.285 | 25.031 | ||||
| 0.432 | 10.973 | 80 XHY | 42.561 | 28.573 | |||
| 0.500 | 12.700 | 48.719 | 32.708 | ||||
| 8″ | 8.625 | 219 | 0.188 | 4.775 | 25.233 | 16.940 | |
| 0.203 | 5.156 | 27.198 | 18.259 | ||||
| 0.219 | 5.563 | 29.286 | 19.661 | ||||
| 0.250 | 6.350 | 20 | 33.308 | 22.361 | |||
| 0.277 | 7.036 | 30 | 36.786 | 24.696 | |||
| 0.322 | 8.179 | 40 | 42.352 | 28.554 | |||
| 0.375 | 9.525 | 49.216 | 33.041 | ||||
| 0.406 | 10.312 | 60 | 53.085 | 35.638 | |||
| 0.500 | 12.700 | 80 XHY | 64.627 | 43.388 | |||
| 10″ | 10.750 | 273 | 0.188 | 4.775 | 31.588 | 21.207 | |
| 0.219 | 5.563 | 36.689 | 24.631 | ||||
| 0.250 | 6.350 | 20 | 41.759 | 28.035 | |||
| 0.307 | 7.798 | 30 | 51.002 | 34.240 | |||
| 0.344 | 8.738 | 56.946 | 38.231 | ||||
| 0.365 | 9.271 | 40 STD | 63.301 | 40.483 | |||
| 0.438 | 11.125 | 71.852 | 48.238 | ||||
| 0.500 | 12.700 | 60 XHY | 81.530 | 54.735 | |||
| 0.594 | 15.088 | 80 | 95.969 | 64.429 | |||
| 12″ | 12.750 | 324 | 0.188 | 4.775 | 37.570 | 25.222 | |
| 0.219 | 5.563 | 43.657 | 29.309 | ||||
| 0.250 | 6.350 | 49.713 | 33.375 | ||||
| 0.281 | 7.137 | 55.739 | 37.420 | ||||
| 0.312 | 7.925 | 61.735 | 41.445 | ||||
| 0.375 | 9.525 | 73.824 | 49.562 | ||||
| 0.406 | 10.312 | 79.727 | 53.525 | ||||
| 0.500 | 12.700 | 97.438 | 65.415 | ||||
| 0.562 | 14.275 | 108.966 | 73.154 | ||||
| 14″ | 14.000 | 356 | 0.188 | 4.775 | 41.308 | 27.732 | |
| 0.219 | 5.563 | 48.012 | 32.233 | ||||
| 0.250 | 6.350 | 20 | 54.685 | 36.713 | |||
| 0.281 | 7.137 | 61.327 | 41.172 | ||||
| 0.312 | 7.925 | 67.939 | 45.611 | ||||
| 0.375 | 9.525 | STD | 81.281 | 54.568 | |||
| 0.438 | 11.125 | 40 | 94.498 | 63.441 | |||
| 0.500 | 12.700 | XHY | 107.381 | 72.090 | |||
| 0.625 | 15.875 | 132.983 | 89.278 | ||||
| 16” | 16.000 | 406 | 0.188 | 4.775 | 47.290 | 21.748 | |
| 0.219 | 5.563 | 54.980 | 36.910 | ||||
| 0.250 | 6.350 | 10 | 62.639 | 42.053 | |||
| 0.281 | 7.137 | 70.268 | 47.174 | ||||
| 0.312 | 7.925 | 20 | 77.866 | 52.275 | |||
| 0.344 | 8.738 | 85.677 | 57.519 | ||||
| 0.375 | 9.525 |
30 STD |
93.213 | 62.578 | |||
| 0.438 | 11.125 | 108.433 | 72.797 | ||||
| 0.500 | 12.700 |
40 XHY |
123.289 | 82.770 | |||
| 18″ | 18.000 | 457 | 0.219 | 5.563 | 61.948 | 41.588 | |
| 0.250 | 6.350 | 70.593 | 47.393 | ||||
| 0.281 | 7.137 | 79.208 | 53.176 | ||||
| 0.312 | 7.925 | 20 | 87.792 | 58.939 | |||
| 0.375 | 9.525 | STD | 105.144 | 70.588 | |||
| 0.438 | 11.125 | 30 | 122.369 | 82.152 | |||
| 0.500 | 12.700 | XHY | 139.198 | 93.450 | |||
| 0.562 | 14.275 | 40 | 155.904 | 104.666 | |||
| 0.625 | 15.875 | 172.754 | 115.978 | ||||
| 20″ | 20.000 | 508 | 0.250 | 6.350 | 78.547 | 52.733 | |
| 0.282 | 7.163 | 88.458 | 59.386 | ||||
| 0.312 | 7.925 | 97.719 | 65.604 | ||||
| 0.375 | 9.525 | 20 STD | 117.075 | 78.598 | |||
| 0.438 | 11.125 | 136.305 | 91.508 | ||||
| 0.500 | 12.700 | 30 XHY | 155.106 | 104.130 | |||
| 0.594 | 15.088 | 40 | 183.378 | 123.110 | |||
| 0.625 | 15.875 | 192.640 | 129.328 | ||||
| 0.688 | 17.475 | 211.368 | 141.901 | ||||
| 24″ | 24.000 | 610 | 0.250 | 6.350 | 94.456 | 63.413 | |
| 0.281 | 7.137 | 106.029 | 71.183 | ||||
| 0.312 | 7.925 | 117.573 | 18.932 | ||||
| 0.375 | 9.525 | 20 STD | 140.938 | 64.618 | |||
| 0.438 | 11.125 | 164.176 | 110.219 | ||||
| 0.500 | 12.700 | XHY | 186.923 | 125.490 | |||
| 0.625 | 15.875 | 232.410 | 156.028 | ||||
| 0.688 | 17.475 | 40 | 255.148 | 171.293 | |||
| 0.750 | 19.050 | 277.401 | 186.233 | ||||
| 30″ | 30.000 | 762 | 0.250 | 6.350 | 118.318 | 79.433 | |
| 0.281 | 7.137 | 132.851 | 89.189 | ||||
| 0.312 | 7.925 | 10 | 147.353 | 98.925 | |||
| 0.375 | 9.525 | STD | 176.731 | 118.648 | |||
| 0.438 | 11.125 | 205.983 | 138.286 | ||||
| 0.500 | 12.700 | 20 XHY | 234.647 | 157.530 | |||
| 0.625 | 15.875 | 30 | 292.066 | 196.078 | |||
| 0.688 | 17.475 | 320.817 | 215.380 | ||||
| 0.750 | 19.050 | 348.988 | 234.293 | ||||
| 36″ | 36.000 | 914 | 0.250 | 6.350 | 142.180 | 95.453 | |
| 0.281 | 7.137 | 159.672 | 107.196 | ||||
| 0.312 | 7.925 | 10 | 177.133 | 118.918 | |||
| 0.375 | 9.525 | STD | 215.525 | 142.678 | |||
| 0.438 | 11.125 | 247.790 | 166.353 | ||||
| 0.500 | 12.700 | 20 XHY | 282.372 | 198.570 | |||
| 0.625 | 15.875 | 351.723 | 236.128 | ||||
| 0.688 | 17.475 | 386.487 | 259.467 | ||||
| 0.750 | 19.050 | 420.576 | 282.353 | ||||
| 42″ | 42.000 | 1067 | 0.312 | 7.925 | 206.914 | 138.911 | |
| 0.375 | 9.525 | STD | 248.319 | 166.708 | |||
| 0.500 | 12.700 | XHY | 33.097 | 221.610 | |||
| 0.750 | 19.050 | 492.163 | 330.413 | ||||
| 48″ | 48.000 | 1219 | 0.375 | 9.525 | STD | 284.112 | 190.738 |
| 0.438 | 11.125 | 331.404 | 222.487 | ||||
| 0.500 | 12.700 | XHY | 377.822 | 253.650 | |||
| 0.750 | 19.050 | 563.750 | 378.473 | ||||
| 0.875 | 22.225 | 655.969 | 440.383 | ||||
Huge Stock Of Stainless Steel 304 Tube
| SS 304 EFW Pipes | SS 304 Large Pipes |
| Stainless Steel 304 Welded Pipes | ASTM A312 tp304 Thick Wall Pipes |
| 304 SS CDW Pipes | Cold Drawn ASTM A312 tp304 Seamless Pipes |
| Stainless Steel 304 Seamless Pipes | 4 inch Stainless Steel 304 Pipes |
| ASTM A312 tp304 ERW Pipe | Schedule 5S ASTM A213 Stainless Steel 304 Pipe |
| 304 Stainless Steel Pipes | Schedule 40 TP304 SS Pipes |
| ASME SA213 TP 304 Stainless Steel Fabricated Pipes | SS WERKSTOFF NR. 1.4301 Clad Pipes |
| SA213 tp304 Cold Drawn Pipes | ASME SA213 TP 304 Stainless Steel Pipes material |
| SS UNS S30400 Bush Hex Pipes | Cold Drawn 304 Stainless Steel Welded Pipes |
| GOST 08Х18Н10 Stainless steel Rectangular Pipes | 304 Stainless Steel Capillary Pipe |
| SS WERKSTOFF NR. 1.4301 Beveled End Pipes | 304 Stainless Steel Rectangle Pipes |
| Capillary 304 Stainless Steel Thin Pipes | SS UNS S30400 Electropolished Pipes |
Tolerance Chart of 304 Stainless Steel 304 Tube
| Stainless Steel 304 Pipe OD | ASTM A312 TP304 Pipe Tolerance |
|---|---|
| 4 to 35mm | +/- 0.08mm |
| 35 to 38mm | +/- 0.15mm |
| 38 to 60mm | +/- 0.20mm |
| 60 and above | +/- 0.25mm |
Similar Products
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
Company
JIANGSU MITTEL STEEL INDUSTRIAL LIMITED
Location
No.283-1, Youyi Middle Road, Xishan District, Wuxi City, Jiangsu Province
Contact Person
Gao Ben
