DN 10 - DN300 Stainless Steel TP316L Pipe Tube / 1.4404 Stainless Pipe SCH40 SCH80S
Price:
2400 - 3500 USD/Ton
MOQ:
500 kgs
Delivery Time:
5 - 12 days based on the quantity
Brand:
DELTA
Product Description
DN 10 - DN300 Stainless Steel TP316L Pipe Tube / 1.4404 Stainless Pipe SCH40 SCH80S
| ASTM / ASME Grade | ASTM A312 / ASTM SA 312 |
| Dimensional ANSI Specifications | ANSI/ ASME B36.19M, ANSI/ ASME B36.10M |
| Different Types and Forms | Rectangle, Hex, Honed, Square, Round, Hydraulic Pipe supplier |
| Basic types we produce | 100% X Ray Welded, CDW, ERW, Welded, Seamless, Fabricated |
| Pipe End Bevel | Plain, Beveled and Treaded End |
| Delivery & Finished Condition | Bright Annealed, Cold Drawn, Polished, Annealed and Pickled, Pickled and Passivated |
| Mechanical Surface Finish | 2B, No.4, No.1, No.8 Mirror Finish or custom Finish as per customer Requirements |
| ASTM A312 TP316L Wall Thickness | SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS |
| Other Facilities we offer | Grooving, Threading, Machining, Ultrasonic Testing, Customer Tagging/ Marking, Destructive, MTR’s Available, Threading, Polishing, Export Documentation, Non Destructive, Beveling, Export Packaging, Cutting, Color Coding, Material testing |

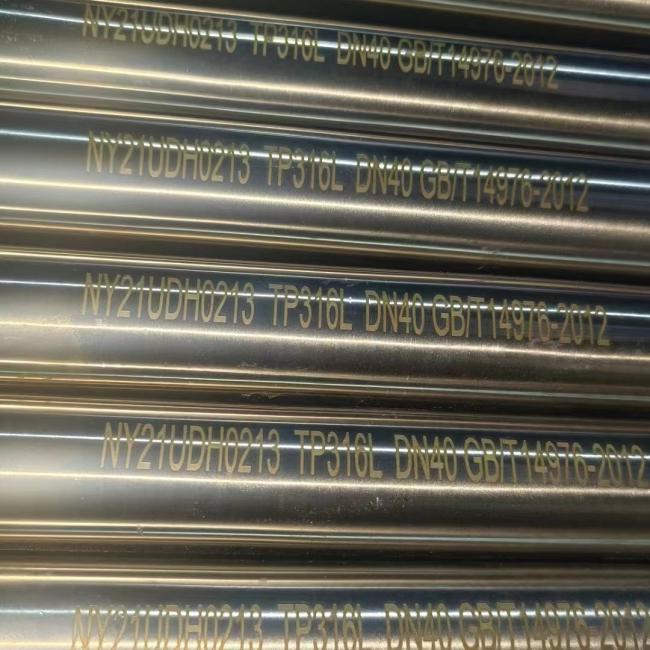

| SS 316L Pipes Marking |
Marked Pipe Sample: ANSI B36.19 ASTM A312 TP316L 12" NB SCH 60S SEAMLESS HEAT NO. XXXX |
| Dual certified 316L Pipe supplier | Dual certification : To certify ASTM A312 316L and ASME SA312 316L material specification |
316L Stainless Steel Pipe for sale
| SS UNS S31603 Box Pipes | SA312 316L Stainless Steel Threaded Pipes |
| werkstoff nr. 1.4436 Stainless Steel 316L C Class Pipes | TP 316L Stainless Steel DIN 1.4436 Water Pipes |
| Stainless Steel UNS S31603 Dairy Pipes | ASTM A312 SS 316L Rectangular Pipes |
| A312 GR TP316L Square Pipes | Austenitic Stainless Steel 316L Round Pipes |
| A312 TP 316L Seamless Pipes | ASTM A312 TP316L Exhaust Pipes |
| TP 316L Stainless Steel Hollow Pipes | A312 TP316L Schedule 40 Pipes |
| ASTM A 312 TP 316L Stainless Steel Schedule 80 Pipes | SA 312 TP 316L 3 Inch Pipes |
| ASTM A312 GR TP316L Schedule 10 Pipes | TP 316L Stainless Steel DIN 1.4436 Erw Pipes |
| A312 Stainless Steel 316L Electropolished Pipes | ASTM A312 SS 316L Polished Pipes |
ASTM A312 TP316L Equivalent grades
| GRADE | UNS | WERKSTOFF NR. | JIS | AFNOR | BS | GOST | EN | SS |
| USA | GERMAN | JAPAN | RUSSIAN | BRITISH | RUSSIAN | EUROPE | SWEDISH | |
| TP 316L | S31603 | 1.4404 / 1.4435 | SUS 316L | Z3CND17‐11‐02 / Z3CND18‐14‐03 | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 | 2348 |
ASTM A312 TP316L allowable stress
| SPECIFICATION | SA-312 | SA-312 |
|---|---|---|
| SS Grade | TP316L | TP316L |
| Nominal Composition | 16Cr-12Ni-2Mo | 16Cr-12Ni-2Mo |
| Product Shape | Welded pipe | Seamless & Welded pipe |
| UNS designation | S31603 | S31603 |
| Sizes/ Thickness [mm] | - | - |
| P Number | 8 | 8 |
| Group Number | 1 | 1 |
| Minimum Tensile Strength [MPa] |
485 | 485 |
| Minimum Yield Strength [MPa] |
170 | 170 |
| I-Applic. and Maximum temperature limit [°C] |
454 | 454 |
| III-Applic. and Maximum temperature limit [°C] | NP | 427 |
| VIII-1-Applic. and Maximum temperature limit [°C] | 454 | 454 |
| XII-Applic. and Maximum temperature limit [°C] | 343 | 343 |
| External Pressure Chart No. |
HA-4 | HA-4 |
316L Pipe Dimensions
| SIZES | OUTSIDE DIAMETER | WALL THICKNESS | WEIGHT |
|---|---|---|---|
| 1/8 inches | 0.405 inches 10.287 mm |
0.068 inches 1.7272 mm |
0.245 lbs/ft 0.36460018 kg/m |
| 1/4 inches | 0.54 inches 13.716 mm |
0.088 inches 2.2352 mm |
0.425 lbs/ft 0.6324697 kg/m |
| 3/8 inches | 0.675 inches 17.145 mm |
0.091 inches 2.3114 mm |
0.568 lbs/ft 0.845277152 kg/m |
| 1/2 inches | 0.84 inches 21.336 mm |
0.109 inches 2.7686 mm |
0.851 lbs/ft 1.266427564 kg/m |
| 3/4 inches | 1.05 inches 26.67 mm |
0.113 inches 2.8702 mm |
1.131 lbs/ft 1.683113484 kg/m |
| 1 inches | 1.315 inches 33.401 mm |
0.133 inches 3.3782 mm |
1.68 lbs/ft 2.50011552 kg/m |
| 1 1/4 inches | 1.66 inches 42.164 mm |
0.140 inches 3.556 mm |
2.274 lbs/ft 3.384084936 kg/m |
| 1 1/2 inches | 1.9 inches 48.26 mm |
0.145 inches 3.683 mm |
2.719 lbs/ft 4.046317916 kg/m |
| 2 inches | 2.375 inches 60.325 mm |
0.154 inches 3.9116 mm |
3.654 lbs/ft 5.437751256 kg/m |
| 2 1/2 inches | 2.875 inches 73.025 mm |
0.203 inches 5.1562 mm |
5.795 lbs/ft 8.62391038 kg/m |
| 3 inches | 3 1/2 inches 88.90 mm |
0.216 inches 5.4864 mm |
7.579 lbs/ft 11.278794956 kg/m |
| 3 1/2 inches | 4 inches 101.6 mm |
0.226 inches 5.7404 mm |
9.113 lbs/ft 13.561638532 kg/m |
| 4 inches | 4.500 inches 114.3 mm |
0.237 inches 6.0198 mm |
10.794 lbs/ft 16.063242216 kg/m |
| 5 inches | 5.563 inches 141.3002 mm |
0.258 inches 6.5532 mm |
14.623 lbs/ft 21.761422172 kg/m |
| 6 inches | 6.625 inches 168.275 mm |
0.280 inches 7.112 mm |
18.981 lbs/ft 28.246840884 kg/m |
| 8 inches | 8.625 inches 219.075 mm |
0.322 inches 8.1788 mm |
28.564 lbs/ft 42.507916496 kg/m |
| 10 inches | 10.75 inches 273.05 mm |
0.365 inches 9.271 mm |
40.498 lbs/ft 60.267665672 kg/m |
| 12 inches | 12.75 inches 323.85 mm |
0.375 inches 9.5250 mm |
49.580 lbs/ft 73.78317112 kg/m |
AISI 316L Pipe Chemical Composition
| ASTM A312 | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| TP316L | min. | - | - | - | - | - | 16.0 | 2.0 | 10.0 | - |
| max. | 0.08 | 2.0 | 0.75 | 0.045 | 0.03 | 18.0 | 3.0 | 14.0 | 0.10 | |
SA 312 TP 316L Pipe Standard
| STANDARD | SS 316L |
|---|---|
| ASTM | A312 |
| ASME | SA 312 |
| WERKSTOFF NR. / DIN | 1.4404 / 1.4435 |
| UNS | S31603 |
| JIS | SUS 316L |
| AFNOR | Z3CND17-11-02 / Z3CND18-14-03 |
ASTM A312 TP 316L Stainless Steel Pipe Roughness
| MATERIAL SURFACE | ABSOLUTE ROUGHNESS COEFFICIENT Ε MM |
|---|---|
| Aluminum Alloy, Lead | 0.001 - 0.002 |
| Drawn Copper/ Brass | 0.0015 |
| 316L Stainless Steel | 0.015 |
316L Pipe Hardness
| GRADE | ROCKWELL B HARDNESS (HR B) MAX | BRINELL HARDNESS (HB) MAX |
|---|---|---|
| 316L | 95 | 217 |
SS 316L Pipe Schedule Chart
| OD | O/D | NOMINAL WALL THICKNESS (NPS) | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DIA | SCHEDULE.5S | SCHEDULE.5 | SCHEDULE 10S | SCHEDULE.10 | SCHEDULE.20S | SCHEDULE.30 | SCHEDULE.40S | SCHEDULE.40 | SCHEDULE 60 | |||||||||||
| (A) | (B) | METER MM |
WALL THK |
WEIGHT KG/MTR | WALL THK |
WEIGHT KG/MTR | WALL THK |
WEIGHT KG/MTR | WALL THK |
WEIGHT KG/MTR | WALL THK |
WEIGHT KG/MTR | WALL THK |
WEIGHT KG/MTR | WALL THK |
WEIGHT KG/MTR | WALL THK |
WEIGHT KG/MTR | WALL THK |
WEIGHT KG/MTR |
| 6 | 1/8 | 10.3 | 1 | 0.23 | 1.2 | 0.27 | 1.5 | 0.33 | 1.73 | 0.37 | ||||||||||
| 8 | 1/4 | 13.7 | 1.2 | 0.37 | 1.65 | 0.49 | 2 | 0.58 | 2.24 | 0.64 | ||||||||||
| 10 | 3/8 | 17.2 | 1.2 | 0.47 | 1.65 | 0.63 | 2 | 0.74 | 2.31 | 0.87 | ||||||||||
| 15 | 1/2 | 21.3 | 1.65 | 0.01 | 1.65 | 0.81 | 2.11 | 1.02 | 2.11 | 1.02 | 2.5 | 1.15 | 2.77 | 1.29 | ||||||
| 20 | 3/4 | 26.7 | 1.65 | 1.03 | 1.65 | 1.03 | 2.11 | 1.3 | 2.11 | 1.3 | 2.5 | 1.49 | 2.87 | 1.71 | ||||||
| 25 | 1 | 33.4 | 1.65 | 1.31 | 1.65 | 1.31 | 2.77 | 2.13 | 2.77 | 2.13 | 3 | 2.24 | 3.38 | 2.54 | ||||||
| 32 | 11/4 | 24.2 | 1.65 | 1.67 | 1.65 | 1.67 | 2.77 | 2.73 | 2.77 | 2.73 | 3 | 2.9 | 3.56 | 3.44 | ||||||
| 40 | 11/2 | 48.3 | 1.65 | 1.93 | 1.65 | 1.93 | 2.77 | 3.16 | 2.77 | 3.16 | 3 | 3.35 | 3.68 | 4.11 | ||||||
| 50 | 2 | 60.3 | 1.65 | 1.93 | 1.65 | 2.42 | 2.77 | 3.99 | 2.77 | 3.99 | 3.5 | 4.9 | 3.91 | 5.52 | ||||||
| 65 | 21/2 | 73 | 2.11 | 3.75 | 2.11 | 3.75 | 3.05 | 5.34 | 3.05 | 5.34 | 3.5 | 6 | 5.16 | 8.77 | ||||||
| 80 | 3 | 88.9 | 2.11 | 4.59 | 2.11 | 4.59 | 3.05 | 6.56 | 3.05 | 6.56 | 4 | 8.37 | 5.49 | 11.47 | ||||||
| 90 | 31/2 | 101.6 | 2.11 | 5.25 | 2.11 | 5.25 | 3.05 | 7.53 | 3.05 | 7.53 | 4 | 9.62 | 5.74 | 13.78 | ||||||
| 100 | 4 | 114.3 | 2.11 | 5.93 | 2.11 | 5.93 | 3.05 | 8.5 | 3.05 | 8.5 | 4.5 | 12.18 | 6.02 | 6.32 | ||||||
| 125 | 5 | 141.3 | 2.77 | 9.61 | 2.77 | 9.61 | 3.4 | 11.74 | 3.43 | 11.74 | 5 | 16.8 | 6.55 | 2210 | ||||||
| 150 | 6 | 168.3 | 2.77 | 11.47 | 2.77 | 11.47 | 3.4 | 14.04 | 3.43 | 14.04 | 5.5 | 22.08 | 7.11 | 28.69 | ||||||
| 200 | 8 | 219.1 | 2.77 | 15 | 2.77 | 15 | 3.76 | 20.77 | 3.76 | 20.27 | 6.35 | 33.82 | 7.04 | 37.38 | 8.18 | 43.2 | 10.81 | 53.9 | ||
| 250 | 10 | 273.1 | 3.4 | 22.95 | 3.4 | 22.95 | 4.19 | 28.2 | 4.19 | 28.2 | 6.35 | 42.41 | 7.8 | 51.81 | 9.27 | 61.22 | 12.2 | 82.8 | ||
| 300 | 12 | 323.9 | 3.96 | 31.72 | 4.19 | 33.6 | 4.57 | 36.54 | 4.57 | 36.54 | 6.35 | 50.48 | 8.38 | 66.2 | 9.53 | 75.01 | 10.31 | 80.94 | 14.27 | 110.62 |
| 350 | 14 | 355.6 | 3.96 | 34.86 | 4.78 | 41.99 | 6.35 | 55.53 | 7.92 | 68.95 | 9.53 | 82.58 | 9.53 | 82.58 | 11.13 | 96 | 15.06 | 128.42 | ||
| 400 | 16 | 406.4 | 4.19 | 42.2 | 4.78 | 48.07 | 6.35 | 63.61 | 7.92 | 79.03 | 9.53 | 94.7 | 9.53 | 94.7 | 12.7 | 125.2 | 16.66 | 162.59 | ||
| 450 | 18 | 457.2 | 4.19 | 47.46 | 4.78 | 54.15 | 6.35 | 71.69 | 7.92 | 89.1 | 11.13 | 124.32 | 9.53 | 106.83 | 14.27 | 158.27 | 19.05 | 209 | ||
| 500 | 2C | 508 | 4.78 | 60.23 | 5.54 | 69.7 | 6.35 | 79.76 | 9.53 | 118.93 | 12.7 | 157.51 | 9.53 | 118.9 | 15.06 | 185.89 | 2062 | 251.65 | ||
| 550 | 22 | 558.8 | 4.78 | 65.95 | 5.54 | 76.75 | 6.35 | 87.84 | 9.53 | 131.07 | 12.7 | 173.66 | 9.53 | 131.07 | 15.88 | 216.04 | 22.23 | 298.55 | ||
| 600 | 24 | 609.6 | 5.54 | 83.8 | 6.35 | 95.92 | 6.35 | 95.92 | 9.53 | 143.2 | 14.27 | 212.72 | 9.53 | 143.2 | 17.45 | 258.74 | 24.59 | 360.21 | ||
| 650 | 26 | 660.4 | 7.92 | 129.4 | 12.7 | 205.97 | 9.53 | 155.32 | ||||||||||||
| 700 | 28 | 711.2 | 7.92 | 139.47 | 12.7 | 222.13 | 15.88 | 276.48 | 9.53 | 167.44 | ||||||||||
| 750 | 3C | 762 | 6.35 | 120.15 | 7.92 | 149.55 | 7.92 | 149.55 | 12.7 | 238.28 | 15.88 | 296.68 | 9.53 | 179.56 | ||||||
| 800 | 32 | 812.8 | 7.92 | 159.62 | 12.7 | 254.44 | 15.88 | 316.88 | 9.53 | 191.69 | 17.48 | 348.11 | ||||||||
| 850 | 34 | 863.6 | 7.92 | 169.64 | 12.7 | 270.5 | 15.88 | 336.96 | 9.53 | 203.74 | 17.48 | 370.22 | ||||||||
| 900 | 36 | 914.4 | 7.92 | 179.77 | 12.7 | |||||||||||||||
ASME SA 312 TP 316L Pipe Mechanical Properties
| ASTM A312 | Tensile Stress (MPa) min | Yield Stress 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| TP316L | 515 | 205 | 40 | 95 | 217 |
A312 Gr TP 316L Stainless Steel Pipe Yield Strength
0.2% Proof (MPa) min
| GRADE | YIELD STRENGTH |
|---|---|
| 316L | 170 |
316L Stainless Steel Pipe Temperature Rating
| GRADE | MEAN CO-EFF OF THERMAL EXPANSION (ΜM/M/°C) | THERMAL CONDUCTIVITY TEMPERATURE (W/M.K) | ELEC RESISTIVITY (NΩ.M) | SPECIFIC HEAT 0-100 °C (J/KG.K) | |||
|---|---|---|---|---|---|---|---|
| 0-100 °C | 0-315 °C | 0-538 °C | AT 100 °C | AT 500 °C | |||
| 316L | 15.9 | 16.2 | 17.5 | 16.3 | 21.5 | 740 | 500 |
AISI 316L Stainless Steel Pipe Tolerances
Nominal pipe size (NPS)
- up to 4 = ± 0.79 mm | 5 thru 8 = + 1.58 mm / - 0.79 mm
- 10 thru 18 = + 2.37 mm / - 0.79 mm | 20 thru 24 = + 3.18 mm / - 0.79 mm
| WALL THICKNESS (WT) | LENGTH | WEIGHT |
|---|---|---|
|
All Diameters = - 12.5% + tolerance not specified |
+ 6.40 mm / - 0 mm | Weight = + 10% / - 1.5% |
Why choose SS 316L Pipe manufacturers instead of a supplier?
- Avoid supplier commission & get lowest price
- All manufacturers provides MTC and MTR test reports with each delivery
- Custom sizes can be produced, depends on the quantity
- 100% exchange and return policy
- Assured High quality material
- Ready sizes to save cost and time
