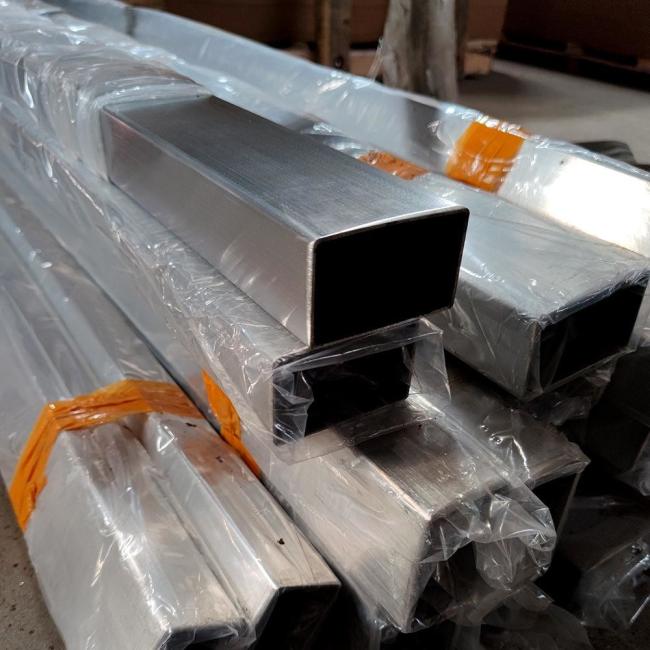

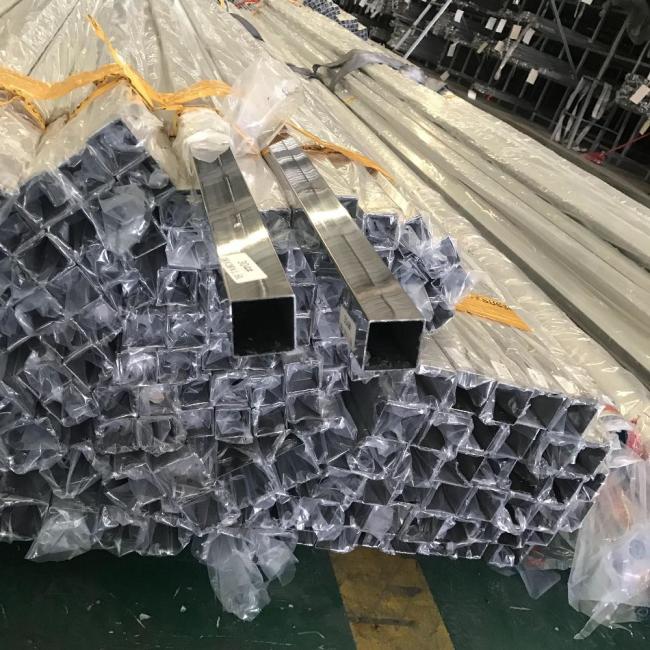

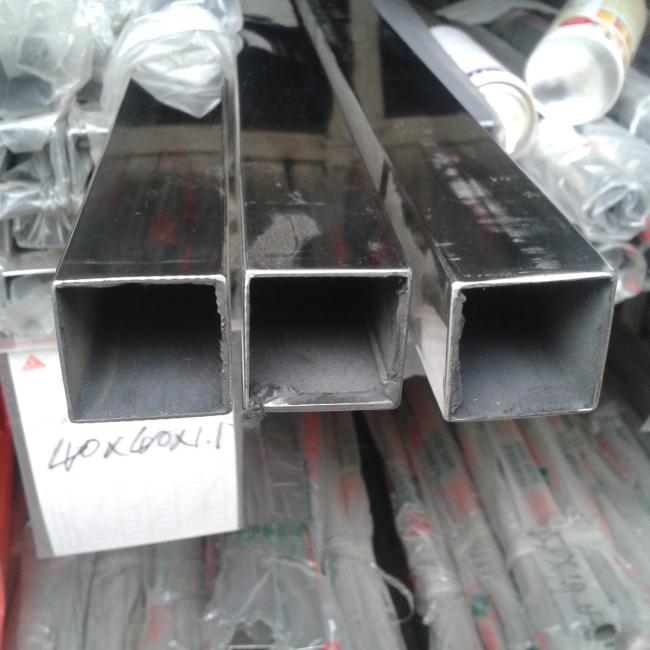

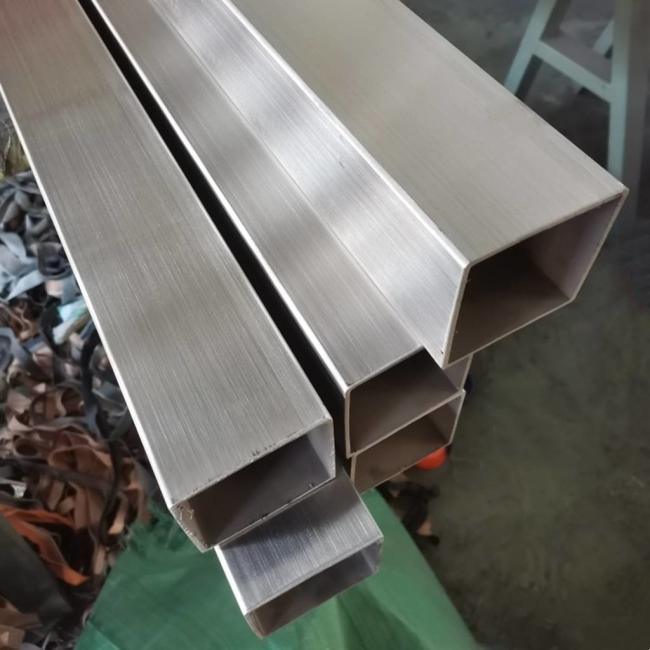

304 Stainless Steel Square Pipe Tube / 316L Stainless Steel Square Tubing 10*10 - 100*100mm
304 Stainless Steel Square Pipe Tube / 316L Stainless Steel Square Tubing 10*10 - 100*100mm

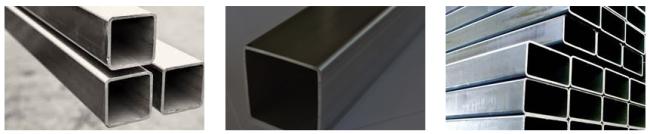

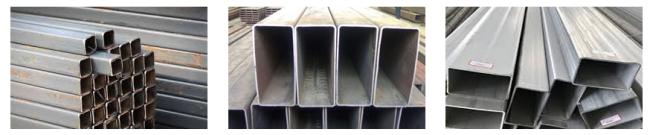

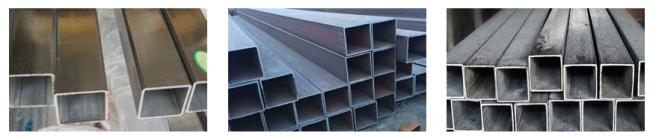

SS 304 Square Tubing, 316 SS Square Tube
Stainless Steel Square Tube is one form of the pipes. There are round, square, rectangular, hexagonal and hydraulic pipe types in the stainless steel varieties. We are a leading supplier and manufacturer of the SS 304 square tubing in different dimensions and scales. There are 304, 316 grades of austenitic stainless steels that are mostly used in industries. There are also other types of stainless steel pipes such as duplex, ferritic, martensitic and alloy steel materials.
Specification Chart of Stainless Steel Square Tubes
| Pipe Size | 12.75 X 12.75, 15 X 15, 20 X 20, 25 X 25, 30 X 30, 40 X 40, 50 X 50, 60 X 60, 75 X 75, 80 X 80, 90 X 90, 100 X100 |
| Stainless Steel Square Pipe Grades | TP - 304/L/H, TP - 316/L/H/Ti, TP - 317L, TP - 321/H, TP - 347/H, 202, JT - 7, J4 - 1, TP - 409/L, TP - 410, TP - 430Ti, TP 439 |
|
Stainless Steel Square Pipe Standards |
ASTM A249 - A269 - A312 - A358 - A409 - A554 - A778 - A789 - A790 |
| TOLERANCE on Length | Commercial Length: 6000mm +/- 30mm Fix Length: from 1200 mm up to 12000mm with a tolerance up to -0/+ 5mm |
| Stainless Steel Square Pipe Finish |
Polished Grit 120 - 600, Seamless, Welded, Brushed, Pickled, Solution An nealed and Pickled up to O.D. 219.1mm,Mirror Polished |
Buy SS 304 square Tubing, SS317 Square Tubes, ASTM A270 Seamless Square Tube in China
square tube Dimension Standard
| MM | 0.65 | 0.80 | 0.90 | 0.95 | 1.00 | 1.20 | 1.50 | 2.00 | 2.50 | |
| 12.5 x 12.5 | 0.075 | 0.091 | 0.102 | 0.107 | 0.112 | 0.133 | 0.163 | |||
| 20 x 20 | 0.176 | 0.184 | 0.220 | 0.271 | 0.354 | 0.433 | 0.508 | |||
| 25 x 25 | 0.221 | 0.232 | 0.277 | 0.343 | 0.450 | 0.553 | 0.652 | |||
| 30 x 30 | 0.267 | 0.280 | 0.335 | 0.415 | 0.516 | 0.673 | 0.796 | |||
| 38 x 38 | 0.340 | 0.358 | 0.427 | 0.531 | 0.700 | 0.866 | 1.027 | |||
| 40 x 40 | 0.358 | 0.376 | 0.450 | 0.559 | 0.738 | 0.898 | 1.084 | |||
| 50 x 50 | 0.473 | 0.565 | 0.703 | 0.930 | 1.153 |
1.372
|
Stainless Steel Square Pipe Chemical Composition Table
| STAINLESS STEEL PIPE GRADES | UNS | C | Mn | P | S | Si | Cr | Ni | Mo |
|---|---|---|---|---|---|---|---|---|---|
| TP304 | S30400 | 0.08 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-11.0 | |
| TP304L | S30403 | 0.035 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-13.0 | |
| TP316 | S3160 | 0.08 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 11.0-14.0 | 2.0-3.0 |
| TP316L | S31603 | 0.035 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 |
SS square tube Mechanical Properties
| Material | Heat | Temperure | Tensile Strength | Yield Strength | Elongation %, Min |
|---|---|---|---|---|---|
| Treatment | Min. | Ksi (MPa), Min. | Ksi (MPa), Min. | ||
| º F(º C) | |||||
| TP304 | Solution | 1900 (1040) | 75(515) | 30(205) | 35 |
| TP304L | Solution | 1900 (1040) | 70(485) | 25(170) | 35 |
| TP316 | Solution | 1900(1040) | 75(515) | 30(205) | 35 |
| TP316L | Solution | 1900(1040) | 70(485) | 25(170) | 35 |
