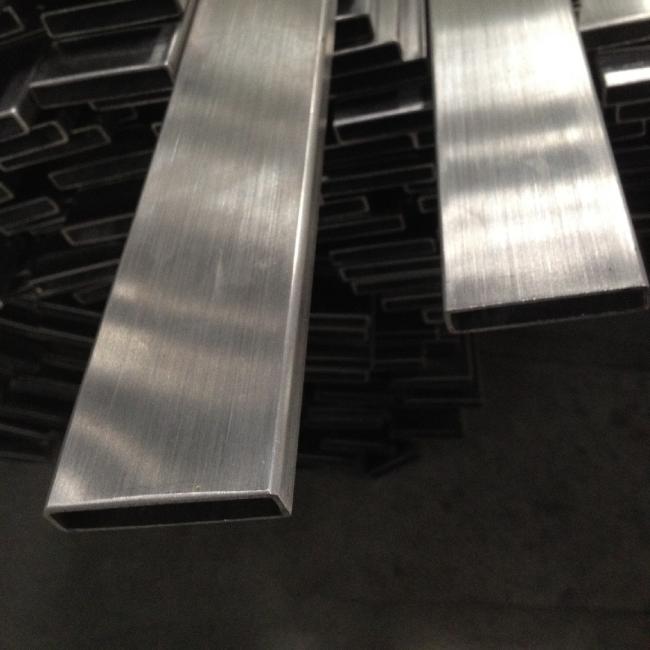

Mirror Hairline Polished 201 304 316 Stainless Steel Square Pipe SS Rectangular Tubing
Price:
2400 - 3500 USD/Ton
MOQ:
500 kgs
Delivery Time:
5 - 12 days based on the quantity
Brand:
DELTA
Product Description
Mirror Hairline Polished 201 304 316 Stainless Steel Square Pipe SS Rectangular Tubing
Description
- Product Name : Mirror Polished stainless steel seamless pipe / tube / tubing
- Standard : ASTM A270 , A269 , A312 , A249 , A554 , A358 , A409 , A778 , A789 , A790 , A928 ,
- EN 10217 , EN 10296,DIN 17456 , DIN 17458 , JISG3459 , JIS G3463 , JIS G3467, JIS G3448 , JIS G3468
- Material : TP321 SUS321 AISI321 UNS S32100 1 . 4541 X 6CrNiTi18 - 10 08 X 18H10T ,
- TP316 / 316L / 316H , 304/304L/304H , 321/321H , 317/317L , 347/347H , 309S , 310S , 2205 , 2507 , 904L (1.4301, 1 . 4306 , 1 . 4948 , 1 . 4401 , 1 . 4404 , 1 . 4571 , 1 . 4541 , 1 . 4833 , 1 . 4878 , 1 . 4550 , 1 . 4462 , 1 . 4438 , 1 . 4845)
- Nominal Dia : 3 / 8" to 80" NB for welded pipe ,Schedules : 5S , 10S , 40S , 80S , 10 , 20 , 30 ...120 , 140 , 160 , XXS
- All dimensions are in accordance with ANSI B36 . 19 and ANSI B36 . 10
- Size range for tube : OD 1 / 4" to 80" ( 6mm to 2000mm) ,THk 0 . 02" to 2" (0 . 5mm to 50mm)
- Length : 20m ( Max ) or as your requirement
- Process : EFW ( argon arc welding / TIG , plasma arc welding / PAW , and submerged arc welding / SAW)
- Finish : Mirror polished , bright annealing, Annealed & pickled ,
- Ends : Beveled or plain end , square cut , burr free , Plastic Cap at Both end
- Inspection & Test
| 1 . 100 % PMI,Spectro Chemical Aanlysis Test for Raw Material |
| 2 . 100 % Dimension & Visual Examination |
| 3 . Mechanical Properties Test Include Tension Test , Flaring Test ( For Seamless tube / pipe) / Flange Test ( For Welded Pipe & Tube) , Hardness Test , Reversed Flattening Test |
| 4 . 100 % Hydrostatic Test or 100 % NON-DESTRUCTIVE Test ( ET or UT ) |
| 5 . Radiographic Test for Welded Pipe (shall be accordance with specification , or shall be as agreed upon between the purchaser and vendor ) |
| 6 . Straightness Test ( optional ) |
| 7 . Roughness Test (optional ) |
| 8 . Intergranular Corrosion Test ( optional ) |
| 9 . Impact Test (optional) |
| 10 . Grain Size Determinations ( optional ) |
| NOTES : ALL THE TESTS AND INSPECTION RESULT NEED TO BE SHOWED IN REPORTS ACCORDING TO STANDARD AND SPECIFICATION . |
We inventory a large variety of ASTM A554 stainless steel square tube in various lengths and custom specifications.
All of our stainless steel square tubing meets and exceeds the industry's strict specifications, so you know you are receiving the highest-quality square tube available today. Stainless steel square tubing resists corrosion, provides additional mechanical properties when required and permits an upgraded stainless steel architectural appearance.

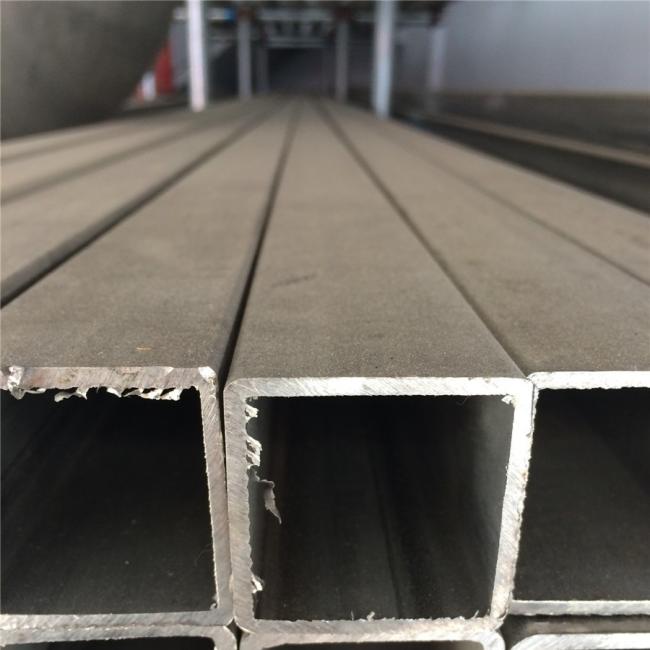

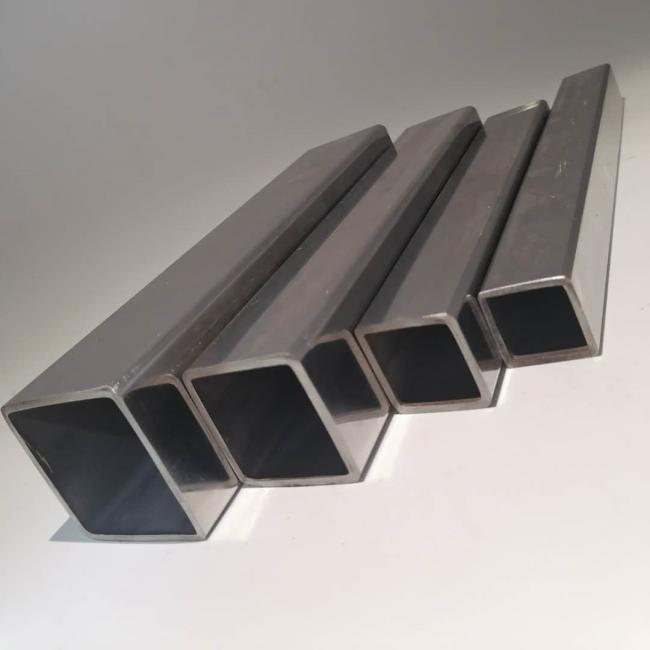

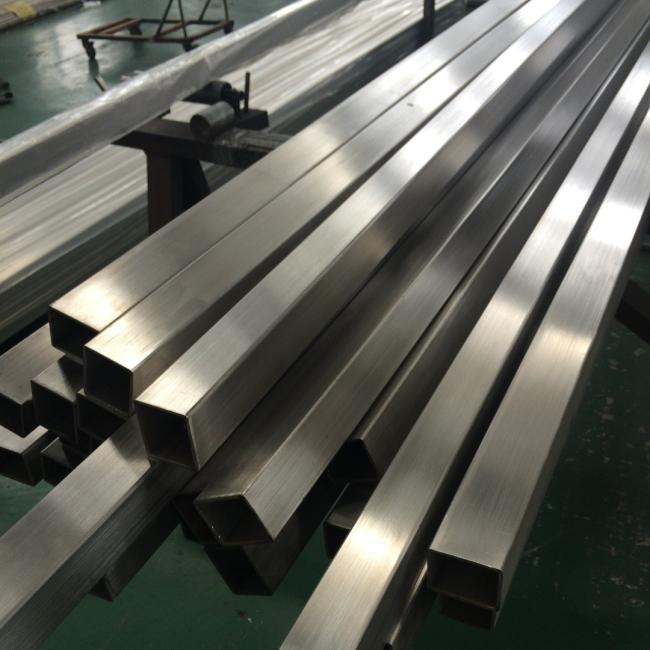

Stainless Steel Square Tube
- Sizes: 1/2" x 1/2" - 12" x 12"
- Wall Thicknesses: .035" - .500"
- Alloys: Aluminum - Carbon - Stainless
