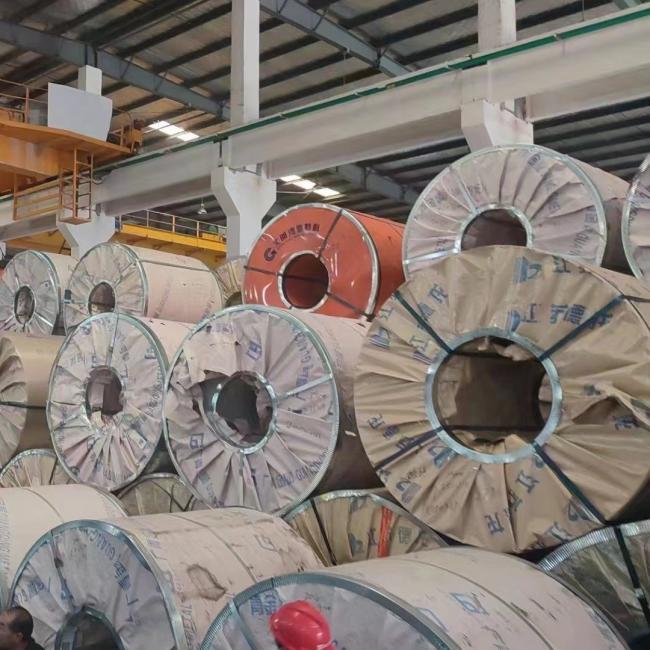

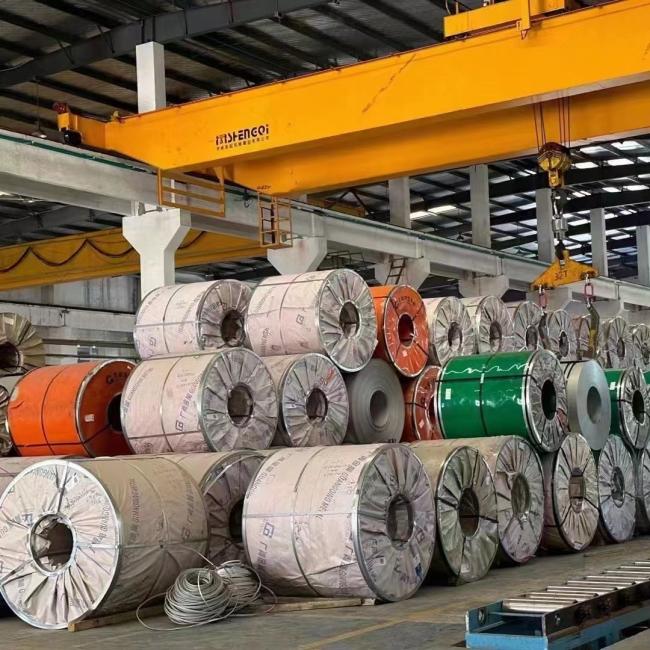

Hot Rolled 317L 3.0 - 12.0mm 317L Alloy Stainless Steel in Coils
Hot Rolled 317L Stainless Steel Plate 3.0 - 12.0mm SS Plate TISCO BAOSTEEL 317L Alloy Stainless Steel in Coils
Specification of SS 317L plate
|
specifications
|
ASTM A240 / ASME SA240, EN 10088-2 |
|---|---|
|
Standard
|
ASME, ASTM, DIN, BS, EN |
|
Thickness
|
1 to 200mm |
|
Length
|
2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
|
Surface
|
2B, etching, BA,, NO.4, NO.8, Brush, NO.1, mirror, 8K, hair line, embossed, 2D, checkered, sand blast, etc |
|
Origin
|
China |
|
Technique
|
Cold Rolled and Hot Rolled |
|
Width
|
1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm etc |
|
Stainless Steel Sheet Finish
|
Cold rolled sheet (CR), SATIN (Met with Plastic Coated), BA NO(8), Hot rolled plate (HR), 2B, 2D |
|
MTC
|
Available as per EN 10204 3.1, Mill Test Certificate |
|
Brand Name
|
TISCO BAOSTEEL POSCO JISCO LISCO |
|
Container
|
40ft HC: 12032m |
|
Form
|
Coils, Foils, Shim Sheets, Rolls, Plain Sheets, Ring (Flange), Strip, Perforated Sheets, Blank (Circle), Chequered Plate, Flats, etc. |
| Price term | CFR, Ex-Work, FOB, CNF, CIF |
|
Size
|
40ft GP: 12032mm x 2352mm x 2393mm |
| 20ft GP: 5898mm x 2352mm x 2393mm |
Detail Size of 317L Stainless Steel Plate We have
| Grade | 304L / S30403 |
| Thickness |
Cold rolled: 0.4mm 0.5mm 0.6mm 0.8mm 1.0mm 1.2mm 1.5mm 2.0mm 2.5mm 3.0mm Hot Rolled : 4.0mm 5.0mm 6.0mm 8.0mm 10.0mm 12.0mm 14.0mm 16.0mm 20.0mm 25mm 30mm 35mm 40mm 45mm 50mm 55mm 60mm |
| Standard Size | 1000*2000mm 1219*2438mm 1500*6000mm |
About 317L Stainless Steel
Alloy 317L is a molybdenum containing, low carbon austenitic stainless steel with increased additions of chromium, nickel, and molybdenum for better corrosion resistance and increased resistance to chemical attack for sulfurous, acetic, formic, citric, and tartaric acids. Due to its low carbon content, 317L also provides resistance to sensitization when welded and higher creep, stress to rupture, and tensile strength at elevated temperatures. It is non-magnetic in the annealed condition but may become slightly magnetic after welding.
Chemical Properties:
| % | Cr | Ni | C | Si | Mn | P | S | Mo | Fe |
|---|---|---|---|---|---|---|---|---|---|
| 317L | min: 18.0 max:20.0 |
min: 11.0 max: 15.0 |
0.035 max |
0.75 max |
2.0 max |
0.04 max |
0.03 max |
min: 3 max: 4 |
balance |
Mechanical Properties:
| Grade | Tensile Strength ksi (min.) |
Yield Strength 0.2% Offset ksi (min.) |
Elongation - % in 50 mm (min.) |
Hardness (Brinell) MAX |
Hardness (Rockwell B) MAX |
|---|---|---|---|---|---|
| 317L | 75 | 30 | 40 | 217 | 95 |
Application of 317L Stainless Steel
Alloy 317L is commonly used to handle sulfur, pulp liquor, acid dyestuffs, acetylating and nitrating mixtures, bleaching solutions, severe coal and oil, and many chemical compounds. Some other applications that use alloy 317L include:
- Paper and pulp handling equipment
- Chemical and petrochemical processing equipment
- Condensers in fossil and nuclear fueled power generation stations
- Food processing equipment
- Textile equipment
