UNS S32760 Super Duplex Stainless Steel Round Bar Diameter 5 - 200mm Hot Rolled for Industrial
UNS S32760 Super Duplex Stainless Steel Round Bar Diameter 5 - 200mm Hot Rolled for Industrial
| Products | Stainless Steel Bar |
| Grade | UNS S32760 |
| Diameter | 5 - 350mm |
| Length | 6m or custom cutting any length as request |
| Finishing | Bright Bar / Black Surface |
| Heat Treatment | Solid Solution , ageing |
| Surface Process | Polishing , Peeling |
| Other Grade |
201 303 304 304L 309S 310S 316L 316Ti 317L 321 347 410 420 430 431 2205 2507 904L 254SMO 416 431 440A/B/C.etc |
| MOQ | 500 Kgs |
| Loading Port | Shanghai Port |

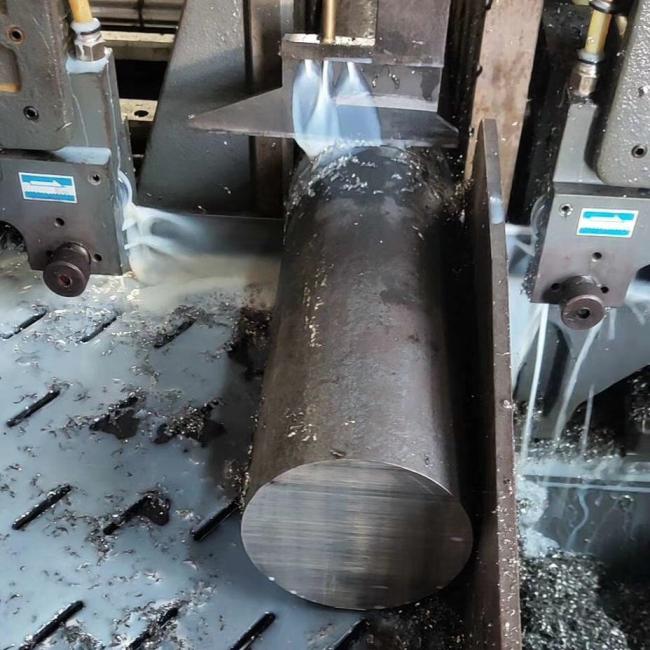

| Processing | Cutting |
| Packing | Wooden box or wrapping by PP bag |
ABOUT UNS S32760
Containing 25% chromium, 7% nickel, 3.6% molybdenum as well as copper, tungsten, and nitrogen, UNS S32760 is a highly alloyed super duplex stainless steel with high PREN for use in aggressive environments.
This is a super duplex grade with a ferritic-austenitic microstructure. The alloy consists of around 40-50% ferrite in the annealed condition. The super duplex microstructure has the high strength of the ferritic grades whilst retaining the corrosion resistance of the austenitic grades. It is not uncommon to see the metal used as a practical solution to chloride-induced stress cracking, which is the Achilles’ heel of stainless steel.
It also has outstanding resistance against sulphide-stress corrosion cracking in sour-gas environments.
Well known for its high impact strength, UNS S32760 displays no ductile-brittle transition but only a slight reduction in impact energy as temperature decreases. Even when welded, UNS S32760 displays only slightly lower impact strength.
It was initially developed as a seawater resistant material for pump applications in the North Sea. Following its success, it became the desired material for a wide range of uses including oil and gas applications, seawater, subsea pipework systems, heat exchangers and more.
SPECIFICATIONS
- UNS Number:S32760
- Werkstoff Number:1.4501
- Standards:ASTM A182, A240, A276, A314, A473, A479, A815, A790, A928.
- Other:F55
CHEMICAL ANALYSIS of UNS S32760 STAINLESS STEEL
| % | Cr | Ni | Mo | Cu | W | C | N | Mn | Si | P | Fe |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Min | 24 | 6 | 3 | 0.5 | - | 0.2 | - | - | - | - | - |
| Max | 26 | 8 | 4 | 1 | 0.03 | 0.3 | 1 | 1 | 0.030 | 0.010 | Balance |
Application of UNS S32760 Super Duplex Stainless Steel
UNS S32760 can be used in a variety of applications including:
- Desalination plants
- Seawater systems
- Heat exchangers
- Subsea pipework systems
- Flue gas desulphurisation (FGD) plants
- Centrifuges and agitators
- Valves and pumps
- Storage tanks and pressure vessels
