AISI317L Stainless Steel Plate / SA240 UNS S31703 Stainless Steel Application for Desulfurizing Tower
Price:
2400 - 3500 USD/Ton
MOQ:
500 kgs
Delivery Time:
5 - 12 days based on the quantity
Brand:
DELTA
Product Description
AISI317L Stainless Steel Plate / SA240 UNS S31703 Stainless Steel Application for Desulfurizing Tower
| Products | Stainless Steel Plate |
| Thickness | 0.6 - 60.0mm |
| Width | 1000mm 1219mm 1500mm 1800mm 2000mm or other width as request |
| Length | 2000mm 2438mm 3000mm 6000mm or other length as request |
| Grade | 201 202 301 304 304L 304H 309S 310S 310H 316L 316Ti 317L 321 347 409L 410 420 430 431 436L 439 441 443 444 2205 2507 904L 600 625 800 825 718 253MA 254SMO.etc |
| Service | Laser Cutting, Surface processing, bending |
| Brand | TISCO BAOSTEEL POSCO LISCO JISCO |
| Standard | ASTM JIS GB DIN EN BS |
| Certificate | ISO MTC C/O F/E |
| Packing | Wooden pallets and waterproof paper |
| Deliver time | 5 - 15 days |
| Loading port | Shanghai Port |

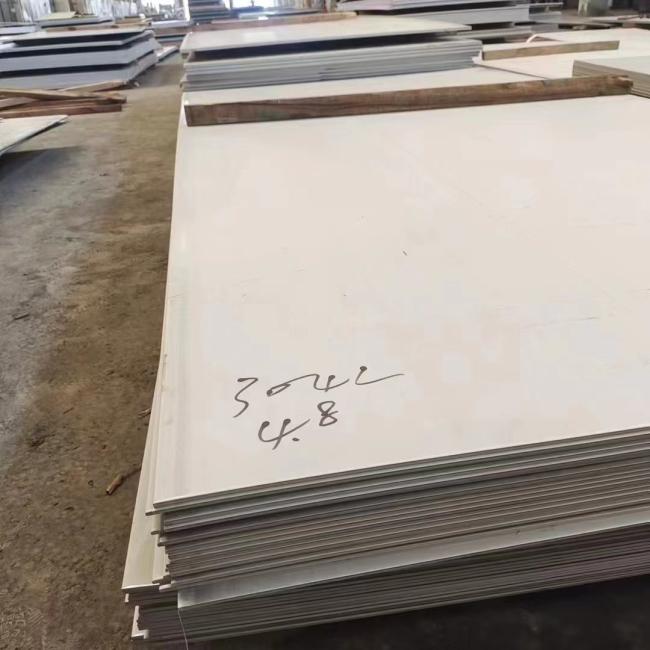

Our 317L Stainless Steel Plate in Stock
| 317L Stainless Steel Plate Standard Size In Stock | ||
| 0.6*1219*2438mm | 3.0*1500*6000mm | 16.0*1500*6000mm |
| 0.8*1219*2438mm | 4.0*1500*6000mm | 20.0*1500*6000mm |
| 1.0*1219*2438mm | 5.0*1500*6000mm | 25.0*1500*6000mm |
| 1.2*1219*2438mm | 6.0*1500*6000mm | 30.0*1500*6000mm |
| 1.5*1219*2438mm | 8.0*1500*6000mm | 35.0*1500*6000mm |
| 2.0*1219*2438mm | 10.0*1500*6000mm | 40.0*1500*6000mm |
| 2.5*1219*2438mm | 12.0*1500*6000mm | 45.0*1500*6000mm |
| 3.0*1219*2438mm | 14.0*1500*6000mm | 50.0*1500*6000mm |
Stainless steel grade 317L is a low carbon version of grade 317 stainless steel. It has the same high strength and corrosion resistance as 317 steel but can produce stronger welds due to the low carbon content.
Chemical Composition of 317L Stainless Steel
| 317L | Cr | Ni | Mo | Mn | Si | P | S | C | Fe |
| Element | 18.0-20.0 | 11.0-15.0 | 3.0-4.0 | 2.0 | 1.0 | 0.045 | 0.03 | 0.03 | Balance |
Mechanical Properties of 317L Stainless Steel
The mechanical properties of grade 317L stainless steel are displayed in the following table.
| Properties | Tensile strength | Yield strength | Modulus of elasticity | Elongation at break (in 50 mm) | Hardness, Rockwell B |
| 317L | 595Mpa | 260Mpa | 200Gpa | 55% | 85 |
Equivalent materials to grade 317L stainless steel
| AISI 317L | ASTM A167 | ASTM A182 | ASTM A213 | ASTM A240 |
| ASTM A249 | ASTM A312 | ASTM A774 | ASTM A778 | ASTM A813 |
| ASTM A814 | DIN 1.4438 | QQ S763 | ASME SA240 | SAE 30317L |
Applications of 317L Stainless Steel Plate
Grade 317L stainless steel is widely used in the following applications:
- Condensers in fossil
- Pulp and paper manufacturing
- Nuclear fueled power generation stations
- Chemical and petrochemical process equipment.
