Heavy Wall 316L Stainless Steel Pipe ANSI B3.6 SCH40 SCH80 XXS SCH10S TP316L Stainless Pipe
Heavy Wall 316L Stainless Steel Pipe ANSI B3.6 SCH40 SCH80 XXS SCH10S TP316L Stainless Pipe
| Product Name | ASTM A312 TP316L Stainless Steel Pipe |
| Out Diameter | 19-813mm |
| Wall Thickness | 0.5-60mm |
| Material Standard | ASTM A312 |
| Steel Grade | ASTM A312 TP316L |
| Surface | Pickling, Solid solution, Polishing |
| Packing | Plastic Film, Plastic Cap, Bundle, Woven bag, Wooden Case, Iron Frame |
| Delivery | Within 3 days with stock, 15-50 days based on production |
| Payment | T/T, D/P, L/C at sight, Usance L/C etc. |
What is stainless steel pipe
Stainless steel seamless pipe is a long strip of steel with a hollow section and no seams around it. The thicker the wall thickness of the product, the more economical and practical it is, and the thinner the wall thickness, the higher its processing cost will be.
The process of this product determines its limited performance. Generally, seamless steel pipes have low precision, uneven wall thickness, low brightness inside and outside the tube, high cost of cutting to length, and pits and black spots on the inside and outside are not easy to remove. Its detection and Shaping must be handled offline. Therefore, it embodies its superiority in terms of high pressure, high strength, and mechanical structural materials.
Chemical Composition of 316L Stainless Steel Pipe
| Grade | C | Mn | P | S | Si | Cr | Ni |
| TP316L | 0.035max | 2.00max | 0.045max | 0.030max | 1.00max | 16.00-18.00 | 10.00-14.00 |
Mechanical Property
| Grade |
Tensile strength Min Ksi(Mpa) |
Yield strength Min Ksi(Mpa) |
Elongation % min |
| TP316L | 70(485) | 25(170) | 35 |

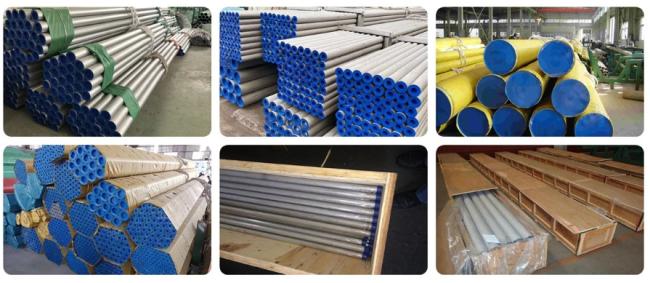

Packing Show
Why Choose US
1.We have a professional product inspection team. Before the delivery of the goods, we will conduct strict comprehensive inspections on each batch of products, such as appearance, size, chemical composition, mechanical properties, etc.
2.In order to meet customers' urgent order needs, we promise to deliver goods within three days for spot orders, and within 15 days for production orders.
3.We will confirm all parameters before quoting, so that you can get an accurate quotation.
We have excellent sales men and technicians to solve your problems quickly and in a timely manner.

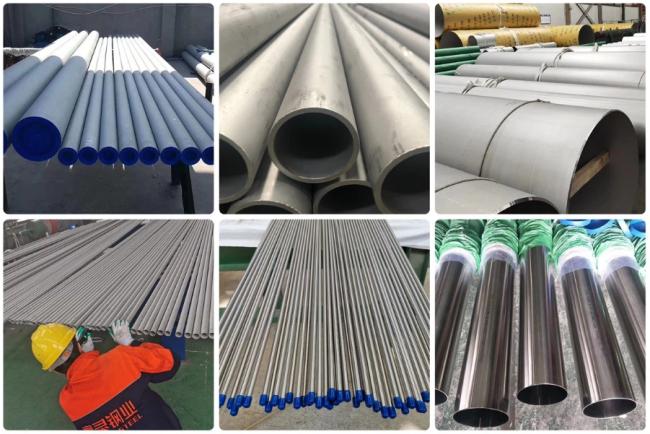

Products Show
