AISI 301 Stainless Steel (UNS S30100)
AISI 301 stainless steel (UNS S30100) is the most susceptible to cold deformation strengthening among conventional austenitic stainless steels. Its work hardening rate is extremely high, with each increase in the amount of cold work, the tensile strength and yield strength will increase significantly. The response to work hardening is particularly important for structural parts, including angle steel and channel sections, which are expected to have additional strength and stiffness after manufacture. On the other hand, for deep drawing applications, lower work hardening rates are generally preferred and can be obtained in austenitic alloys with higher nickel content (especially types 304, 304L, and 305).
Type 301 SS has good corrosion resistance under atmospheric conditions, but it has poor corrosion resistance in reducing media, and chemical media such as acids, alkalis and salts, so it is not recommended for harsh corrosion environments. 301 steel is mainly used in the cold working state to withstand higher loads, but also hopes to reduce the weight of equipment and corrosion-resistant parts.
Specification of 301 Stainless Steel Strip
| ProductName: | 301 Stainless Steel Strip |
| Standard: | ASTM,AISI,DIN,EN,GB,JIS |
| Grade: | 201,301,304,310S,316,316L,430,409,410,434.etc |
| Thickness: | 0.1mm-3.0mm |
| Width: | 15mm-1500mm,or customized |
| Edge: | Slit edge/Mill edge |
| Surface: | 2B,BA,HL,Mirror,2D,NO.1 |
| Packaging: | Standard exporter package or as your requirements |
| Origin: | China |
| Supply Ability: | 50 Tons per Month |
| Price terms: | EX-Work,FOB,CIF,CFR,CNF |
| Payment terms: | T/T,30%advanced payment before production and balance before shipment; |
| MOQ: | 2 Ton each size |
| Delivery time: | 10-15 days after receiving deposit by T/T or L/C. |
| Sample: | Samples free and express charges bear by you. |
Chemical Composition of 301 Stainless Steel Strip
| SS 301 Chemical Composition, % | |||||||||||
| ASTM / SAE Type | AISI (UNS) | C, ≤ | Si, ≤ | Mn, ≤ | P, ≤ | S, ≤ | Cr | Ni | Mo, ≤ | Cu, ≤ | N, ≤ |
| A240/A240M; | 301 | 0.15 | 1.00 | 2.00 | 0.045 | 0.03 | 16.0-18.0 | 6.0-8.0 | – | – | 0.1 |
PROPERTIES of 301 Stainless Steel
| Temper | Tensile Strength | Yield Strength (0.2% Offset) | Elongation | Min Hardness |
| Annealed | 75 KSI min | 30 KSI min / 205 MPA min | 40% Min | B92 or Equiv. Max |
Hardness Detail of our 301 Stainless Steel Strip
| Temper | Tensile Strength | Yield Strength (0.2% Offset) | Elongation |
| 1/16 Hard | 90 KSI min | 55 KSI min / 380 MPA min | 40% Min |
| 1/8 Hard | 100 KSI min | 55 KSI min / 380 MPA min | 40% Min |
| 1/4 Hard | 125 KSI min | 55 KSI min / 380 MPA min | 25% Min |
| 1/2 Hard | 150 KSI min | 110 KSI min / 760 MPA min | 15% < .015" 18% > .015" |
| 3/4 Hard | 175 KSI min | 135 KSI min / 930 MPA min | 10% < .015" 12% > .015" |
| Full-Hard | 185 KSI min | 140 KSI min / 965 MPA min | 8% < .015" 9% > .015" |
| Super Full-Hard | 270 KSI min | 260 KSI min | Report for all thicknesses |
Size Specification of 301 Stainless Steel Strip
| Detail Thickness | 0.1mm 0.2mm 0.3mm 0.4mm 0.5mm 0.6mm 0.7mm 0.8mm 1.0mm 1.2mm 1.5mm 2.0mm 2.5mm 3.0mm |
| Widtd Range | 6 - 1219mm |
| Width tolerance | ±0.5mm |
| Thcikness tolerance | within 5% |
| Weight of strip | within 30kg |
Application of 301 Stainless Steel Strip
- Cooking Apparatus & Utensils
- Structural Parts of Railways
- Automotive Parts
- Aircraft Construction Components
- Numerous others industrial applications
Available Forms in Market: Following are the available forms of 301 Stainless Steels:
- Milled Coils
- Slitted Coils
- Sheets & Plates
- Round Bar

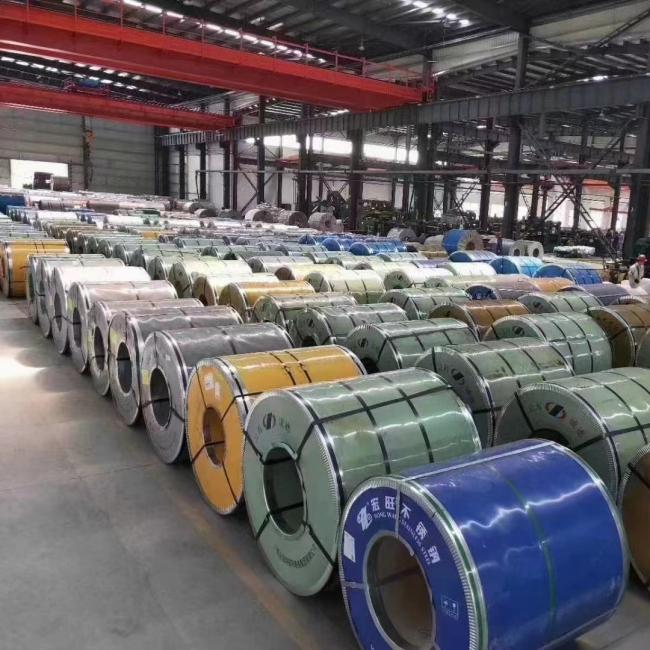

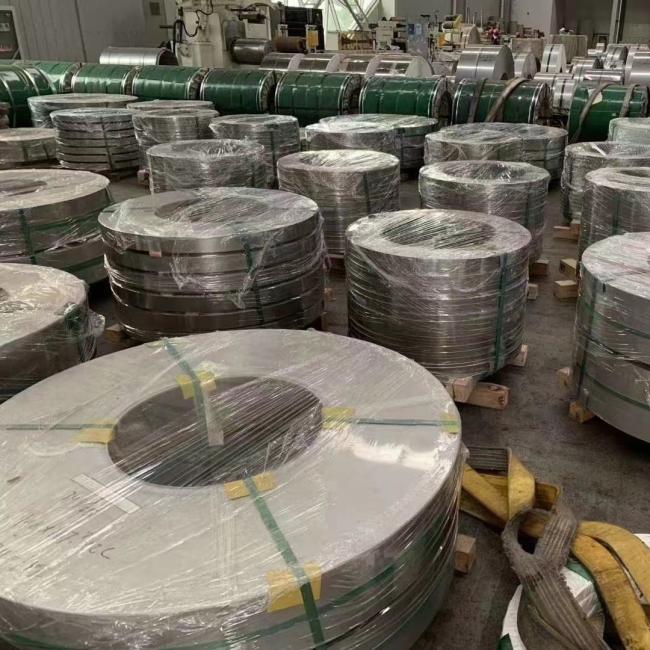

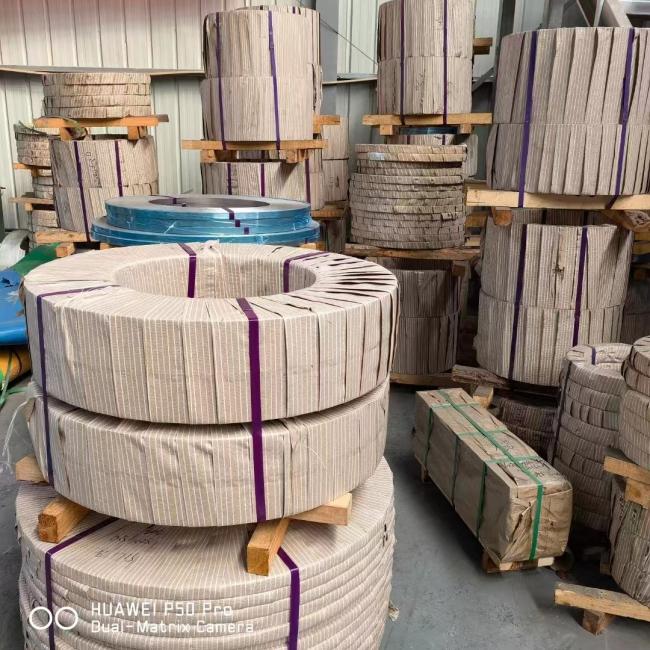

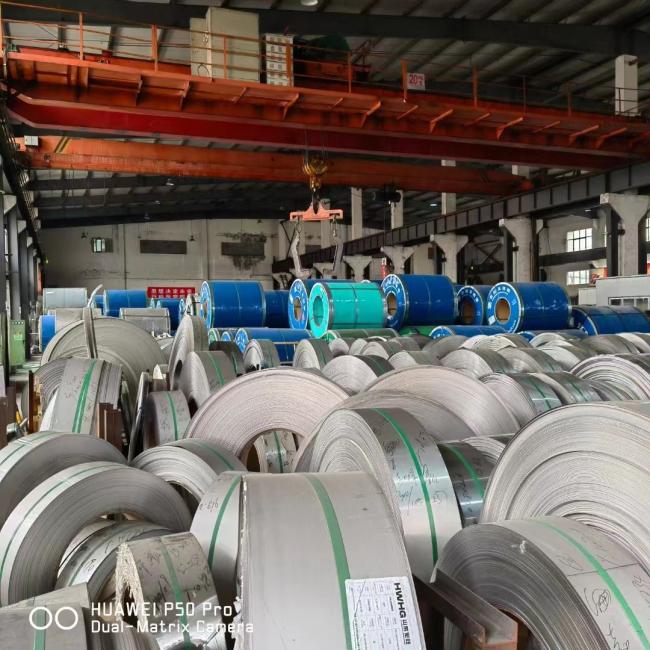

Products Show
