EN 1.4113 / AISI434 Stainless Steel Sheet and Plate Thickness 0.4 - 30.0mm for Liquid Storage Equipment
| Products | Stainless Steel Plate |
| Thickness | 0.4 - 40.0mm |
| Width | 1000mm 1219mm 1500mm 1800mm 2000mm or other width as request |
| Length | 2000mm 2438mm 3000mm 6000mm or other length as request |
| Grade | 201 202 301 304 304L 304H 309S 310S 316L 316Ti 317L 321 347 409L 410 420 430 431 434 436L 439 441 443 444 2205 2507 904L 600 625 800 825 718 253MA 254SMO.etc |
| Service | Laser Cutting, Surface processing, bending |
| Brand | TISCO BAOSTEEL POSCO LISCO JISCO |
| Standard | ASTM JIS GB DIN EN BS |
| Certificate | ISO MTC C/O F/E |
| Packing | Wooden pallets and waterproof paper |
| Deliver time | 5 - 15 days |
| Loading port | Shanghai Port |
Grade 434 stainless steel is one of many ferritic stainless steel grades available. It is valued for its strength, and corrosion resistance, but also for its low coefficient of thermal expansion and magnetic properties all balanced with cost-effectiveness. Due to its numerous desirable properties and affordable cost compared to other stainless steels, 434 stainless steel is often used in the automotive, food packaging and processing, power generation, and chemical processing industries.
SAE 434, like other steel alloys, is made by melting raw iron ore, removing impurities, and then adding the necessary concentrations of alloying elements. SAE 434 has a chemical composition of 16-18% chromium, 1% each of molybdenum, silicon, and manganese, 0.12% carbon, and other elements. This article will shed light on the alloy’s uses, advantages, and disadvantages by examining the composition and properties of 434 stainless steel.
Chemical Composition of 434 Stainless Steel Sheet
| C | Mn | Si | Cr | Ni | Mo | P | S | Cu | Fe |
| 0.08 | 1.0 | 0.6 | 16.0-18.0 | 0.50 | 0.75-1.25 | 0.04 | 0.03 | 0.5 | Bal |
Standard Size of our 434 Stainless Steel Sheet
| Cold Rolled AISI434 Stainless Steel Sheet | ||||
| 0.4*1219*2438mm | 0.5*1219*2438mm | 0.6*1219*2438mm | 0.8*1219*2438mm | 1.0*1219*2438mm |
| 1.2*1219*2438mm | 1.5*1219*2438mm | 2.0*1219*2438mm | 2.5*1219*2438mm | 3.0*1219*2438mm |
| Hot Rolled AISI434 Stainless Steel Plate | ||||
| 3.0*1500*6000mm | 4.0*1500*6000mm | 5.0*1500*6000mm | 6.0*1500*6000mm | 8.0*1500*6000mm |
| 10.0*1500*6000mm | 12.0*1500*6000mm | |||
Applications of 434 Stainless Steel Sheet
- Architectural screens
- Appliances, range hoods
- Restaurant equipment
- Roofing and siding
- Automotive trim
- Automotive trim and molding

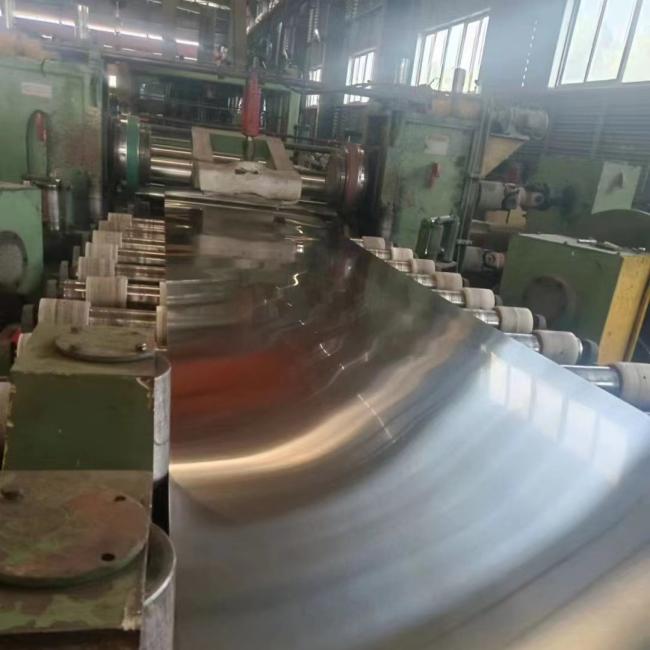

Products Picture
