EN 1.8507 (34CrAlMo5-10) Nitriding Steel Round Bar Diameter 10 - 300mm Custom Cutting
Price:
600-851 USD/Ton
MOQ:
1 Ton
Delivery Time:
5 - 12 days based on the quantity
Brand:
DELTA
Product Description
EN 1.8507 (34CrAlMo5-10) Nitriding Steel Round Bar Diameter 10 - 300mm Custom Cutting
Products Specification
| Products Name | 34CrAlMo5-10 / 1.8507Alloy Steel Round Bar |
| Diameter | 10 - 300mm |
| Length | 6m or custom cutting any length as request |
| Type | Hot Rolled |
| Brand | BAOSTEEL DELTA DONGBEI HUAXI SHAGANG.etc |
| MOQ | 1 Ton |
| Loading Port | Shanghai Port |
| Packing | packing by steel wire rope |
| Deliver time | 5 - 7 days for stock materials |
| Other Grade |
Q195,Q235,10#,20#,35#,45#,Q215,Q345,12Cr1Mov, 15CrMo,304,316,20Cr,40Cr,20CrMo,35CrMo,42CrMo, 40CrNiMo,GCr15,65Mn,50Mn,50Cr,3Cr2W8V,20CrMnTi,5CrMnMo |
| Standard | ASTM GB EN DIN |
| Application | Structure and Industrial |
Regular Standard Size of our Round Bar in Stock
| Standard Diameter | 10 12 15 18 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 120 130 140 150 160 180 200 210 220 230 250 270 300 |
Chemical composition of 34CrAloMo5-10 Alloy Steel
| C | Si | Mn | Ni | Cr | Mo | S | P | Al | |
| min | 0.30 | 0.50 | 1.0 | 0.15 | 0.80 | ||||
| max | 0.37 | 0.40 | 0.80 | 1.30 | 0.25 | 0.025 | 0.030 | 1.20 |
Mechanical properties of 34CrAlMo5-10, 1.8507 according to EN 10085
- Annealed condition +A - Hardness: <248 HB
- Heat-treated condition +QT - dimensions 16 - 70mm
- Tensile strength, Rm: 800 - 1000 MPa
- Yield strength, Re: >600 MPa
- Elongation, A: >14%
- Impact resistance, KV: >35J
- Surface hardness after nitriding - HV1: 950
Heat Treatment Processing
34CrAlMo5-10, 1.8507
- Softening annealing at 650 - 750℃
- Hardening in water or oil at 870 - 930℃
- Tempering at 580 - 700℃
- Nitriding at 480 - 570℃
34CrAlMo5-10 Alloy Steel Products We can Produce
| Steel Grade | Speci |
|
|
Round Bar |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

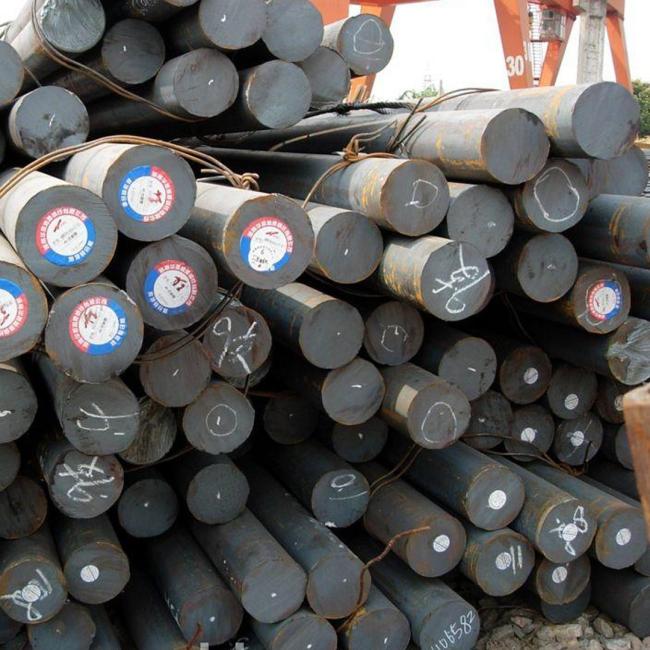

Products Picture
