2mm 2.5mm 3mm 4mm 5mm 6mm 8mm Thickness Stainless Steel Checkered Plate Anti-Slip Plate
Price:
2800 -3200 USD/Ton
MOQ:
500 kgs
Delivery Time:
5 - 12 days based on the quantity
Brand:
DELTA
Product Description
2mm 2.5mm 3mm 4mm 5mm 6mm 8mm Thickness Stainless Steel Checkered Plate Anti-Slip Plate
Quick Information
| Steel Grade | SS 304 / SS 316 / SS 201 |
| Material | STAINLESS STEEL CHEQUERED PLATE 316 |
| Surface Treatment | Hot Rolled |
| Material Grade | SS304 / SS316 / SS202 |
| Thickness | 0.6 - 8.0mm in stock |
| Brand | DELTA |
| Size (feet X feet) | 8 FEET X 4 FEET / 5 FEET X 10 FEET |
| Raw Material | SS CHEQUERED PLATE |
More Informations of our Products
| Item | Stainless Steel Checker Plate/Stainless Steel Chequered Plate |
| Raw Material | Stainless steel sheet (hot rolled and cold rolled) |
| Grades | 201, 202, 301, 304, 304L, 310S, 309S, 316, 316L, 321, 409L, 410, 410S, 420, 430, 904L, etc. |
| Thickness | 0.6mm-10mm |
| Stock Thickness | 0.6mm 0.8mm 1.0mm 1.2mm 1.5mm 2mm, 2.5mm, 3mm, 3.5mm, 4mm, 4.5mm, 5mm, 5.5mm, 6mm, 7mm, 8mm,10mm |
| Width | 600mm – 1,800mm |
| Pattern | Chequered pattern, diamond pattern, lentils pattern, leaves pattern, etc. |
| Finish | 2B, BA, No. 1, No. 4, mirror, brush, hairline, chequered, embossed, etc. |
| Package | Standard export package |
Chemical Composition of Stainless Steel Checkered Plate
| Grade | C | Mn | Si | P | S | Cr | Ni | N | Fe |
|---|---|---|---|---|---|---|---|---|---|
| Stainless Steel Chequered 304 Plates | 0.07max | 2.0max | 0.75max | 0.045max | 0.03max | min: 18.0 max: 20.0 | min: 8.0 max: 10.5 | — | — |
| Stainless Steel Chequered 304L Sheets | 0.03max | 2.0max | 0.75max | 0.045max | 0.03max | min: 18.0 max: 20.0 | min: 8.0 max: 12.0 | 0.10 max | — |
| Stainless Steel Chequered 304H Coil | min: 18.0 max:20.0 | min: 8.0 max: 10.5 | min: 0.04 max:0.10 | 0.75 max | 2.0 max | 0.045 max | 0.03 max | 0.10 max | — |
| Stainless Steel Chequered 316 Foil | Min | - | - | - | 0 | - | 16.0 | 10.0 | - |
| Max | 0.08 | 2.0 | 0.75 | 0.045 | 0.03 | 18.0 | 14.0 | 0.10 | |
| Stainless Steel Chequered 316L Plates | Min | - | - | - | - | - | 16.0 | 10.0 | - |
| Max | 0.03 | 2.0 | 0.75 | 0.045 | 0.03 | 18.0 | 14.0 | 0.10 | |
| Stainless Steel Chequered 316H Sheet | Min | 0.04 | 0.04 | 0 | - | - | 16.0 | 10.0 | - |
| max | 0.10 | 0.10 | 0.75 | 0.045 | 0.03 | 18.0 | 14.0 | - |
Stainless Steel Chequered Plate Application
-
Automotive
-
Railway & Transport
-
Architecture, Building & Construction
-
Chemical & Petrochemical Industries
-
Pharmaceutical
-
Energy and Power
-
Oil and Gas Industries
-
Kitchenware and Food Processing Industries
-
Plumbing And Overhead Water Tanks

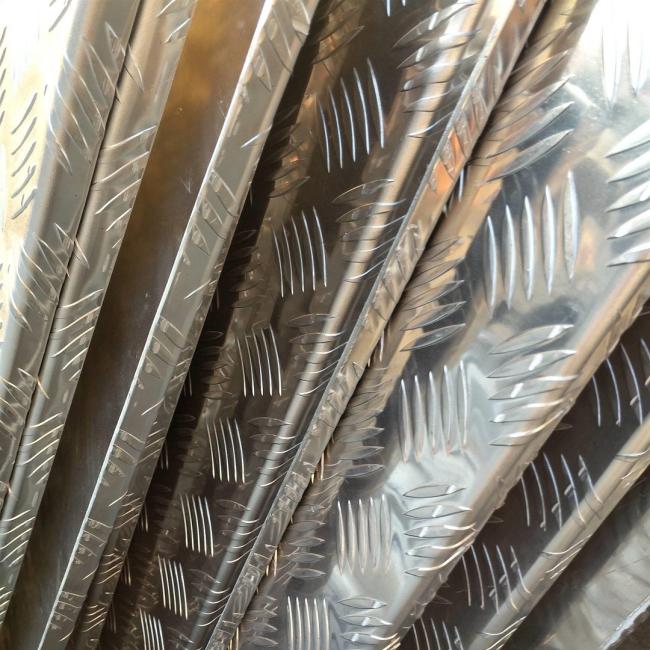

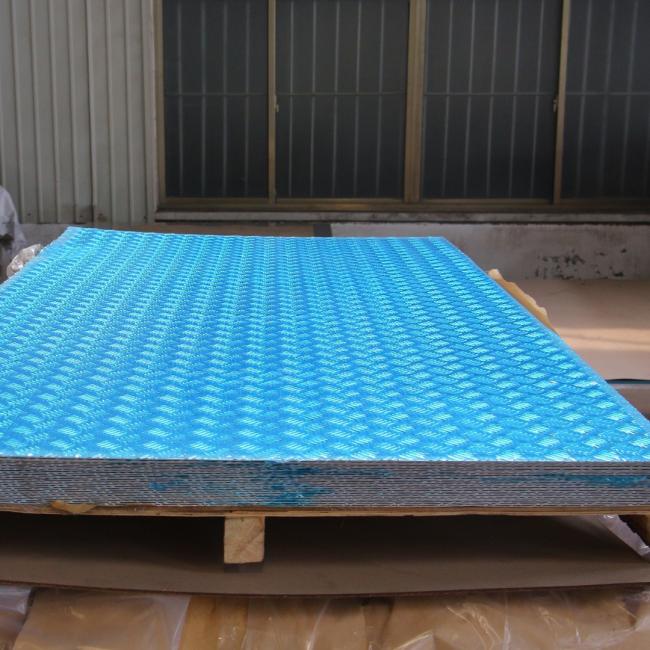

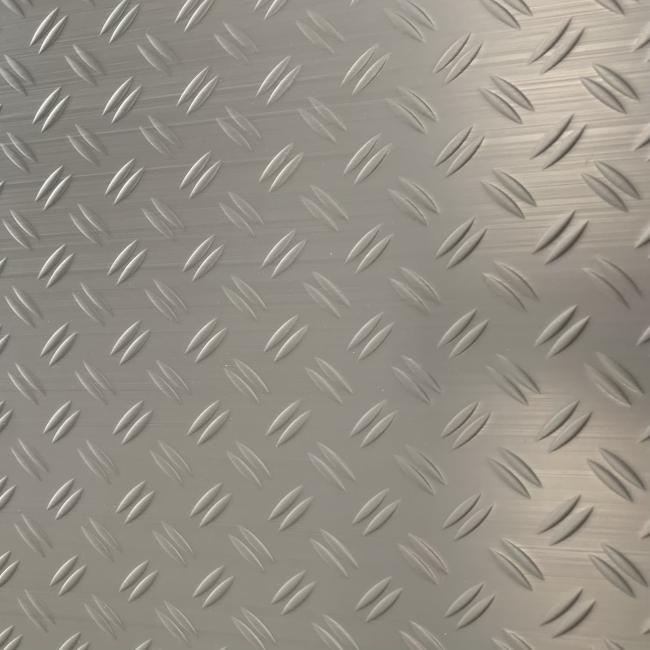

Products Picture
