High Carbon 304H Stainless Steel Sheets UNS S30409 SS Sheets 0.4 - 8.0mm Cold Rolled 2B
Price:
1300 - 1480 USD/Ton
MOQ:
500 kgs
Delivery Time:
5 - 12 days based on the quantity
Brand:
TISCO
Product Description
High Carbon 304H Stainless Steel Sheets UNS S30409 SS Sheets 0.4 - 8.0mm Cold Rolled 2B
Products Specification
| Products Name | 304H Stainless Steel Sheet |
| Standard | ASTM EN JIS GB BIS |
| Thickness |
0.4mm 0.5mm 0.6mm 0.8mm 1.0mm 1.2mm 1.5mm 2.0mm 2.5mm 3.0mm 4.0mm 5.0mm 6.0mm 8.0mm 10.0mm 12.0mm |
| Surface | 2B 2D NO.1 or process other surface as request |
| Standard Size | 1219*2438mm 1000*2000mm |
| Service | Slit Cutting, bending , surface treatment |
| Other Grade | 200 Series: 201 202 |
| 300 Series: 301 304 304L 309S 310S 316L 316Ti 317l 321 329 347 | |
| 400 Series: 409L 410S 416 420 431 436L 439 441 443 444 446 | |
| Special Grade: 254SMO 904L 2205 2507 253MA Nickel Alloy | |
| MOQ | 500 kgs |

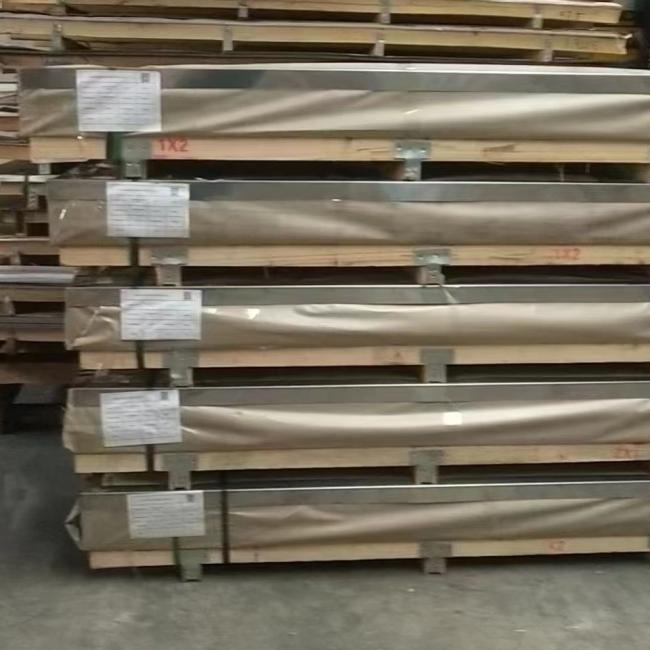

| Packing | Wooden Pallets and waterproof paper |
Unlike 304L, Type 304H has a higher carbon content making the steel more suitable for use in applications where elevated temperatures are present. It is an austenitic chromium-nickel steel alloy and the greater carbon content delivers an increased tensile and yield strength.
304H Stainless Steel Sheets and Plates in Stock
| Cold Rolled 304H Stainlesss Steel Sheets | |||
| 0.3*1219*2438mm | 0.4*1219*2438mm | 0.5*1219*2438mm | 0.6*1219*2438mm |
| 0.8*1219*2438mm | 1.0*1219*2438mm | 1.2*1219*2438mm | 1.5*1219*2438mm |
| 2.0*1219*2438mm | 2.5*1219*2438mm | 3.0*1219*2438mm | |
| Hot Rolled 304H Stainless Steel Plates | |||
| 3.0*1500*6000mm | 4.0*1500*6000mm | 5.0*1500*6000mm | 6.0*1500*6000mm |
| 8.0*1500*6000mm | 10.0*1500*6000mm | 12.0*1500*6000mm | 14.0*1500*6000mm |
| 16.0*1500*6000mm | 18.0*1500*6000mm | 20.0*1500*6000mm | 25.0*1500*6000mm |
| 30.0*1500*6000mm | 35.0*1500*6000mm | 40.0*1500*6000mm | 45.0*1500*6000mm |
Chemical Properties of 304H Stainless Steel Sheets
| % | Cr | Ni | C | Si | Mn | P | S | N |
|---|---|---|---|---|---|---|---|---|
| 304H | min: 18.0 max:20.0 |
min: 8.0 max: 10.5 |
min: 0.04 max:0.10 |
0.75 max |
2.0 max |
0.045 max |
0.03 max |
0.10 max |
Mechanical Properties of 304H Stainless Steel Sheets
| Grade | Tensile Strength ksi (min.) |
Yield Strength 0.2% Offset ksi (min.) |
Elongation - % in 50 mm (min.) |
Hardness (Brinell) MAX |
Hardness (Rockwell B) MAX |
|---|---|---|---|---|---|
| 304H | 75 | 30 | 40 | 201 | 92 |
Alloy 304H is often used as a material of construction up to about 1500oF. Some examples of applications that Alloy 304H is commonly used for includes:
- Most commonly used in petroleum refineries
- Boilers
- Heat exchangers
- Condensers
- Pipelines
- Cooling towers
- Steam exhausts
- Electric generation plants
- On occasion will be found in fertilizer and chemical plants
