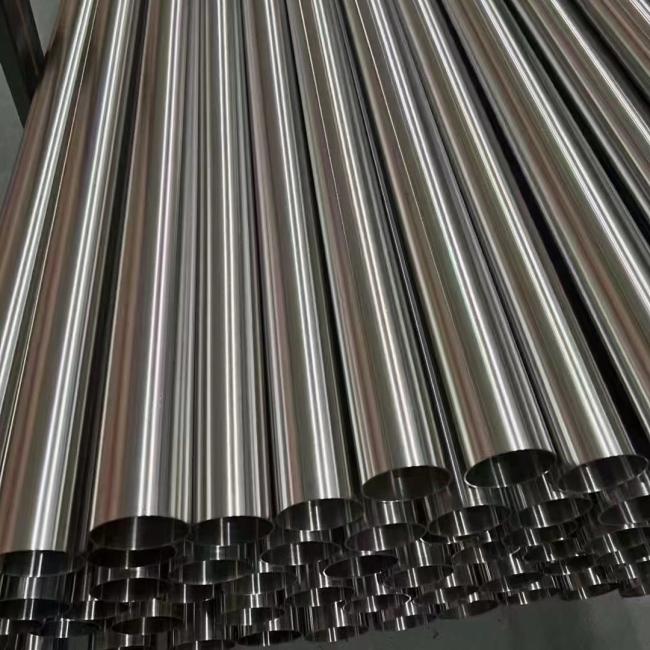

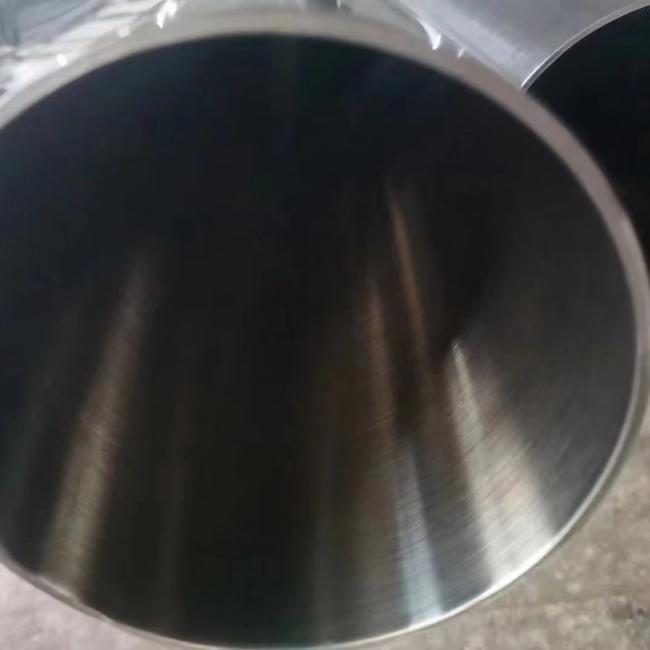

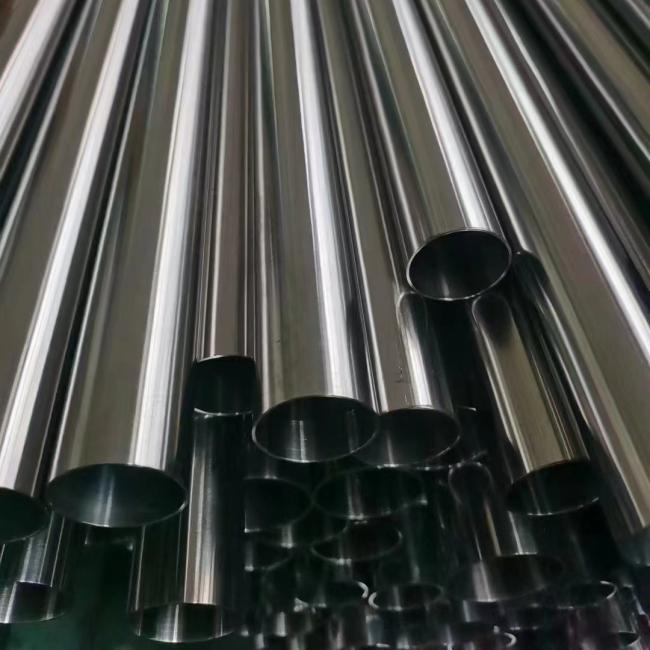

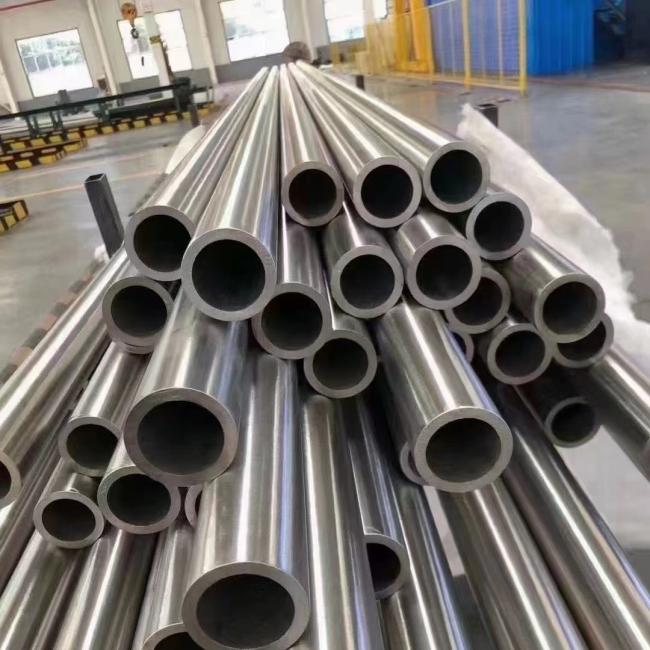

Hastelloy C276 Nickel Alloy Pipe Bright Surface Diameter 10 - 219mm in 6m Length
Hastelloy C276 Nickel Alloy Pipe Bright Surface Diameter 10 - 219mm in 6m Length
| ASTM Specification | ASTM B444 ASME SB 444 |
|---|---|
| Standard | ASTM, ASME, JIS, AISI, AMS, EN, SAE, DIN, NF, TOCT, DS, DTD, GB |
| Diameter | 4 to 219mm W. T.: 0.5 to 20mm |
| Swg & Bwg | 12 Swg., 10 Swg., 16 Swg., 14 Swg., 20 Swg., 18 Swg., |
| Schedule | XS, SCH30, SCH40, XXS, SCH80, SCH120, SCH60, SCH140, STD, SCH10, SCH10S, SCH40S, SCH80, SCH20, SCH5, SCH160 |
| Length | Double Random, Single Random, Standard & Cut length Pipe |
| Finish | Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF, NO.1, NO.4, 2B, BA, HL, 8K, Mirror finish, etc |
| Form | inconel 625 are available in form of Round, Square, Hollow, Rectangular, Hydraulic, Coiled, Straight Pipes, “U” Shape, Pan Cake Coils etc. |
| Type | Seamless / ERW/ EFW / Welded / Fabricated / CDW / DOM / CEW inconel 625 |
| End | Plain End, Beveled End, Treaded Pipe, Screwed ends |
| Marking | Standard, Grade, OD, Thickness, Length, Heat No. (Or according to the customer’s request.) |
| Application | Dairy Pipe, Oil Pipe, Gas Pipe, Fluid Pipe, Boiler Pipe for Chemical Industry |
| Value Added Service | Draw & Expansion as per required Size & Length, Polish (Electro & Commercial) Annealed & Pickled Bending, Machining Etc. |
| Specialize in | Large Diameter inconel 625 |
| manufacturing Technique | Cold drawn, hot drawn, bright annealed, solid solution, hot extruding |
ALLOY C276 NICKEL PIPE
Alloy C276 nickel pipe is made from a nickel-molybdenum-chromium alloy with addition of tungsten having excellent corrosion resistance in a wide range of severe environments. The high molybdenum content makes this alloy especially resistant to pitting and crevice corrosion. The low carbon content minimizes carbide precipitation during welding to maintain corrosion resistance in as-welded structures.
Typical applications: pollution control, chemical processing, pulp and paper production, and waste treatment.
Hastelloy C276 Welded Pipe Chemical Composition
| Alloy C276 | Ni | C | Mo | Mn | Si | Fe | P | S | Co | Cr |
|---|---|---|---|---|---|---|---|---|---|---|
| Balance | 0.010 max | 15.00 – 17.00 | 1.00 max | 0.08 max | 4.00 – 7.00 | 0.04 max | 0.03 max | 2.5 max | 14.50 – 16.50 |
C276 Hastelloy Bright Pipe Mechanical Strength Table
| Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
|---|---|---|---|---|
| 8.89 g/cm3 | 1370 °C (2500 °F) | Psi – 52,000 , MPa – 355 | Psi – 1,15,000 , MPa – 790 | 40 % |
Equivalent Grade Hastelloy C276 Pipe
| STANDARD | UNS | WERKSTOFF NR. | AFNOR | EN | JIS | BS | GOST |
|---|---|---|---|---|---|---|---|
| Hastelloy C276 | N10276 | 2.4819 | – | NiMo16Cr15W | NW 0276 | – | ХН65МВУ |
FAQ
Q: Do you have large amount of steel products in stock?
A: Yes , we have a large-scale indoor warehouse with perennial spot stocks totally above 5000 tons.
Q: How long is the delivery time?
A: Generally it is within 10 days. If the goods is not in stock , according to the quantity it is within 30 days.
Q: Do you provide the samples? Free or Extra?
A: The cost of the samples is according to the value.The cost of the freight is necessary.
Q: How to order?
A: Buyer sends the enquery --> Buyer gets the quotation --> Order confirmation --> Buyer send the deposit --> Seller prepares
goods --> Seller makes the strict inspection --> Buyer Arranges Balance Payment --> packing and delivery
