317LMN Stainless Steel Sheet Thickness 0.6 - 16.0mm 4ft*8ft 5ft*20ft SS Plate
317LMN Stainless Steel Sheet Thickness 0.6 - 16.0mm 4ft*8ft 5ft*20ft SS Plate
Products Specification
|
Product Name
|
316Ti Stainless Steel Sheets
|
|
Material Type
|
Ferrite stainless steel, magnetic; Austenitic stainless steel, Non-magnetic.
|
|
Grade
|
300series:301,302,303,304,304L,309,309s,310,310S,316,316L,316Ti,317L,321,347
|
|
200series:201,202,202cu,204
|
|
|
400series:409,409L,410,420,430,431,439,440,441,444
|
|
|
Others:2205,2507,2906,330,660,630,631,17-4ph,17-7ph, S318039 904L,etc
|
|
|
Duplex stainless steel:S22053,S25073,S22253,S31803,S32205,S32304
|
|
|
Special Stainless Steel:904L,347/347H,317/317L,316Ti,254Mo
|
|
|
Technology
|
Cold Rolled /Hot Rolled
|
|
Length
|
2000/2438/2500/3000/3048 mm
|
|
Width
|
1000/1219/1250/1500 mm
|
|
Thickness
|
0.4-3mm(cold Rolled), 3-200mm(hot Rolled)
|
|
|
BA, 2B, NO.1,2D, 4K, 6K, 8K, NO.4, HL, SB, Embossed,perforated etc.
|
|
Leveling: improve flatness, esp. for items with high flatness request.
|
|
|
Skin-Pass: improve flatness, higher brightness
|
|
|
Other Choices
|
Cutting:Laser cutting, help the customer to cut the required size
|
|
Protection
|

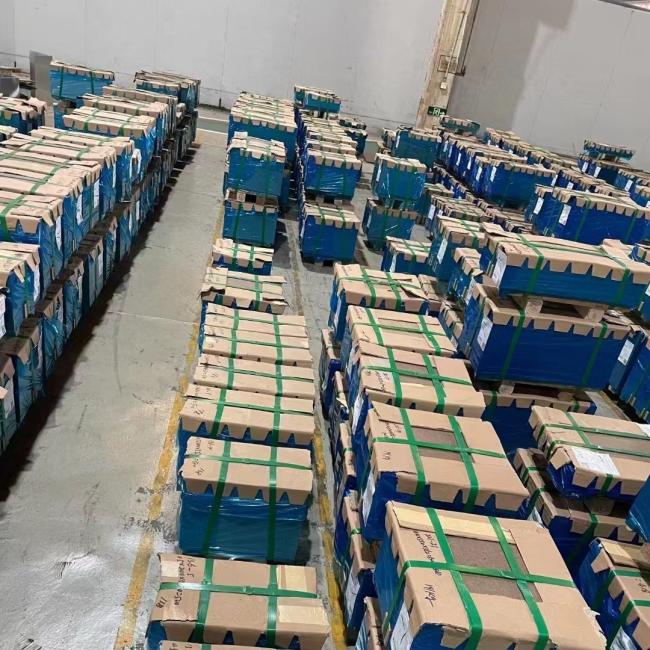

1. Inter paper available
|
|
2. PVC protecting film available
|
|
|
Price Item
|
FOB,CIF,DDU,FCA,EXW ,.etc
|
|
Quality Assurance
|
1.Provide MTC (Mill Test).
2.Accept the inspection by the third party agent
|
Stainless steel 317LMN is a higher molybdenum austenitic stainless steel alloyed with nitrogen to provide high corrosion resistance in acidic chloride-containing environments when compared to 316L and 317L. The alloy is non-magnetic in the annealed condition. It offers higher creep, stress-to-rupture, and tensile strengths at elevated temperatures than other conventional stainless steels.
Chemical Composition
The chemical composition of Grade 317LMN stainless steel is outlined in the following table.
| Element | Content (%) |
|---|---|
| Iron, Fe | Balance |
| Chromium, Cr | 17 – 20 |
| Nickel, Ni | 13.5 - 17.5 |
| Molybdenum, Mo | 4-5 |
| Manganese, Mn | 2 |
| Silicon, Si | 0.75 |
| Nitrogen, N | 0.10 - 0.20 |
| Phosphorus, P | 0.045 |
| Sulfur, S | 0.03 |
| Carbon, C | 0.03 |
Mechanical properties
The mechanical properties of Grade 317LMN stainless steel are displayed in the following table.
| Properties | Metric | Imperial |
|---|---|---|
| Ultimate tensile strength | 614 MPa | 89 ksi |
| Yield strength | 317 MPa | 46 ksi |
| Elongation at break | 53% | 53% |
| Reduction in area | 69% | 69% |
| Hardness, Rockwell | 80 | 80 |
Manufacturing process
The properties of 317LMN is similar to other conventional austenitic stainless steels, and can therefore be fabricated in a manner similar to alloys 304 and 306. The alloy is machined using heavy feeds and slow speeds and welded using all common methods. The material is initially forged at temperatures ranging from 1150 to 1205°C (2100-2200°F). It is then annealed at 1080 to1175°C (1975 to 2150°F) followed by air cooling or water quenching. The alloy can be hardened only by cold working.
Applications
The following are some of the major applications of Grade 317LMN stainless steel:
- Paper pulp industry
- Textile industry
- Food processing industry
- Process equipment industry.
